Weather Resistant Compression Driver - 15W-4 Ohms
Part #: VTB-6
Our Price: $116.99
Top VTB-6 Specifications
- Height 3-11/16"
- Width 3-11/16"
- Depth 3-3/16"
- Shipping Weight 2.10 lbs
"Great working with my sales rep to figure out what options I had. Thank you again!"
Contact a product specialist!
1-888-999-3759 | Chat | Email
Proudly supporting our customers since 2008

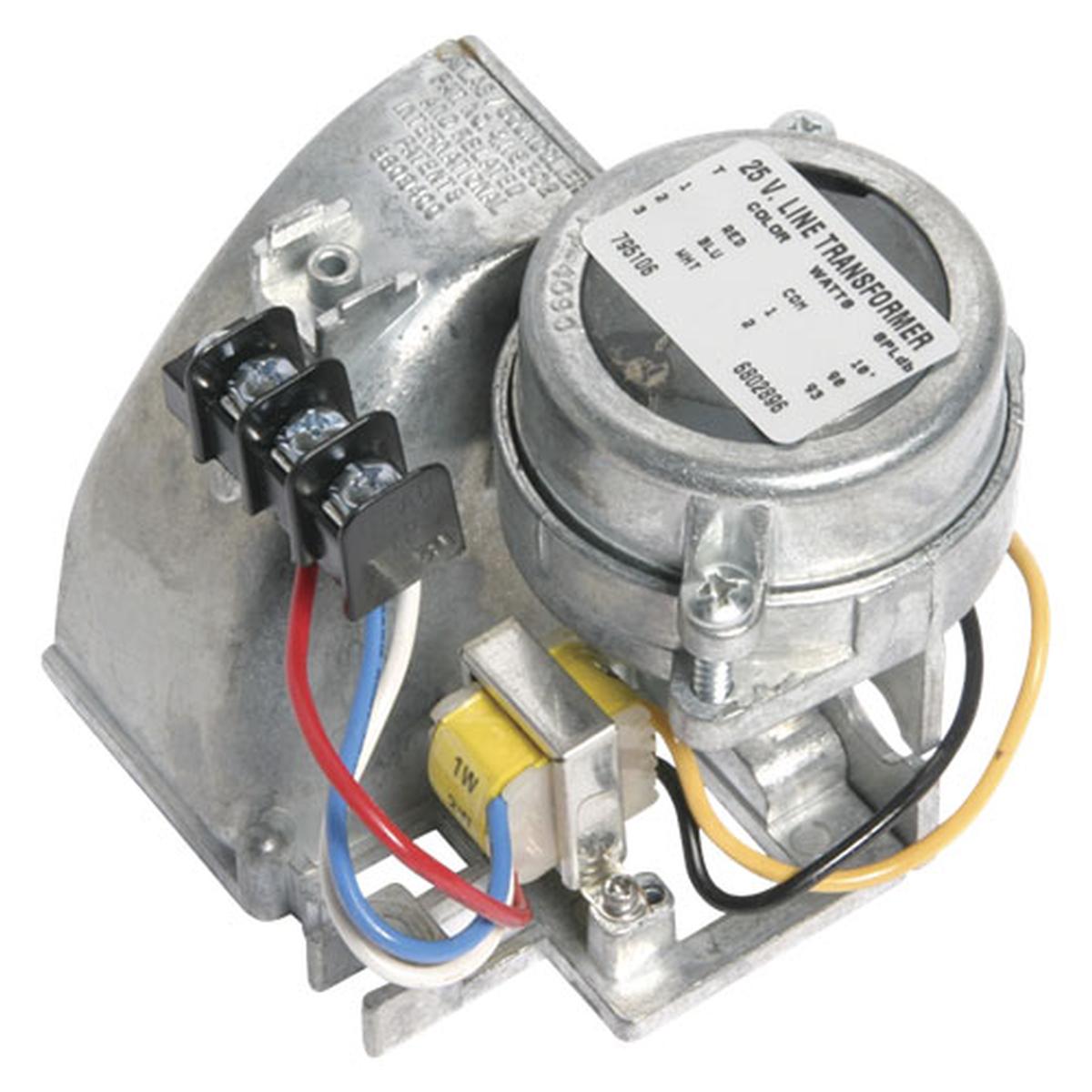

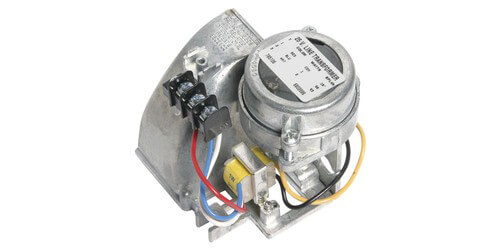

VTB-6 Environment-Resistant Voice/Tone Compression Driver with 25V-2W Transformer made by Atlas Sound. Atlas Sound VTB Series Models are UL recognized environment-resistant loudspeakers designed for intercom communication. VTB Models feature an integral exponential horn to provide reliable sound distribution and optimum intelligibility for the reproduction of voice and/or electric tone signals.Units have a frequency response of 600 Hz to 5500 Hz 5dB, and are offered in six models to meet application requirements. Series Models VTB-1 and VTB-2 are 8 and 4 ohm units, respectively. Models VTB-3 through VTB-6 are equipped with a built-in transformer. Termination is via 6" color coded leads. Units are of die-cast zinc construction with a water-sealed driver that will withstand moisture, corrosion, vibration, vermin, and vandalism. Models are available with a selection of multi-tap transformers and are designed to mount a variety of standard or custom housings and face plates to meet installation and application requirements. VTB Series units provide years of trouble-free service in stationary or mobile applications both indoors or outdoors.
- Frequency Response 600 Hz - 5500 Hz ( 5dB)
- Power Handling 15W (25V)
- Sensitivity 96.9dB (1W / 1M)
- UL Listed/Standard 1480 Recognized Component
