AtlasIED VPCS-2GPB-2
25V Vandal Proof Intercom Station Stainless Steel
- Height 4 3/4"
- Width 4 3/4"
- Depth 2 1/8"
- Shipping Weight 1.75 lbs
-Gregory W.
Description

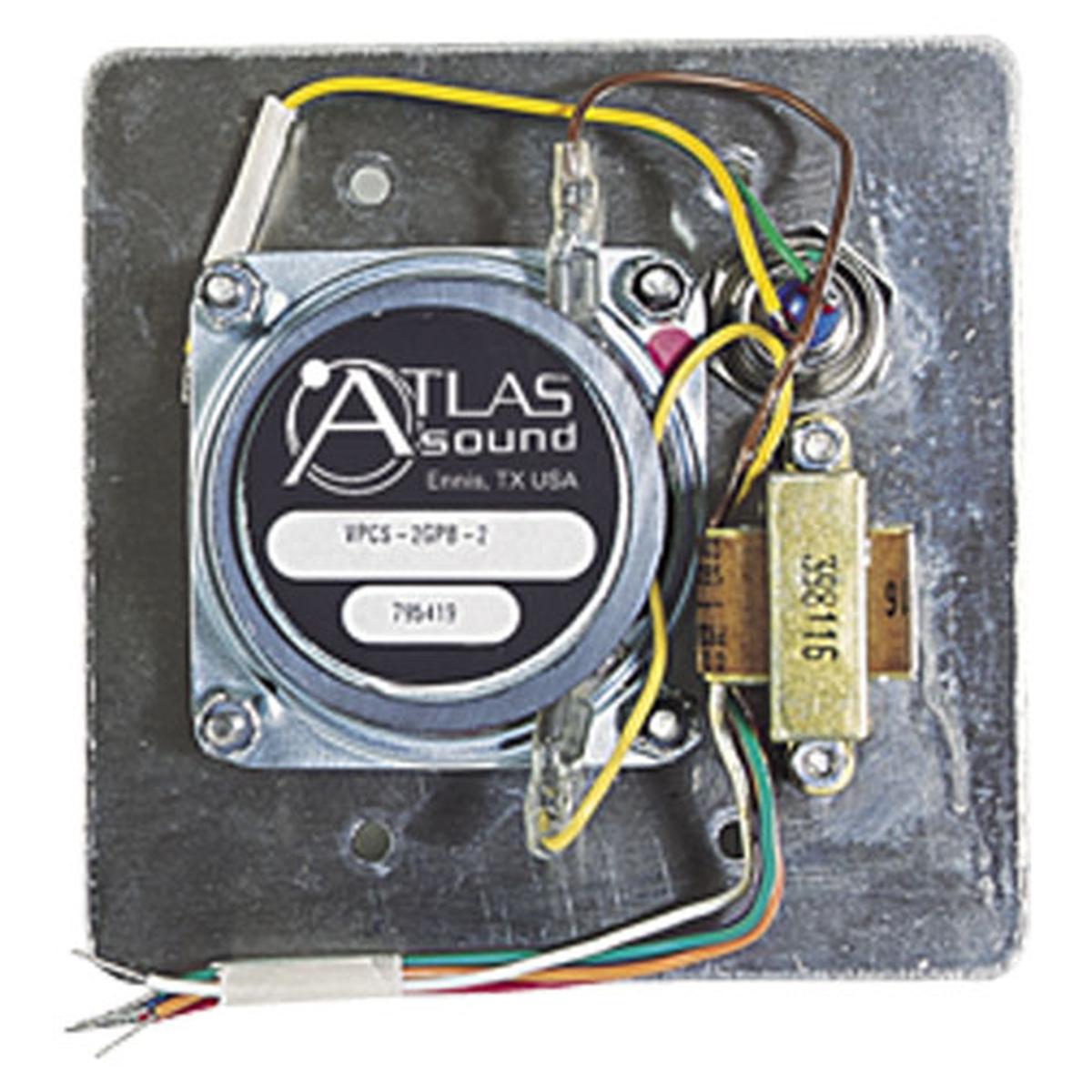

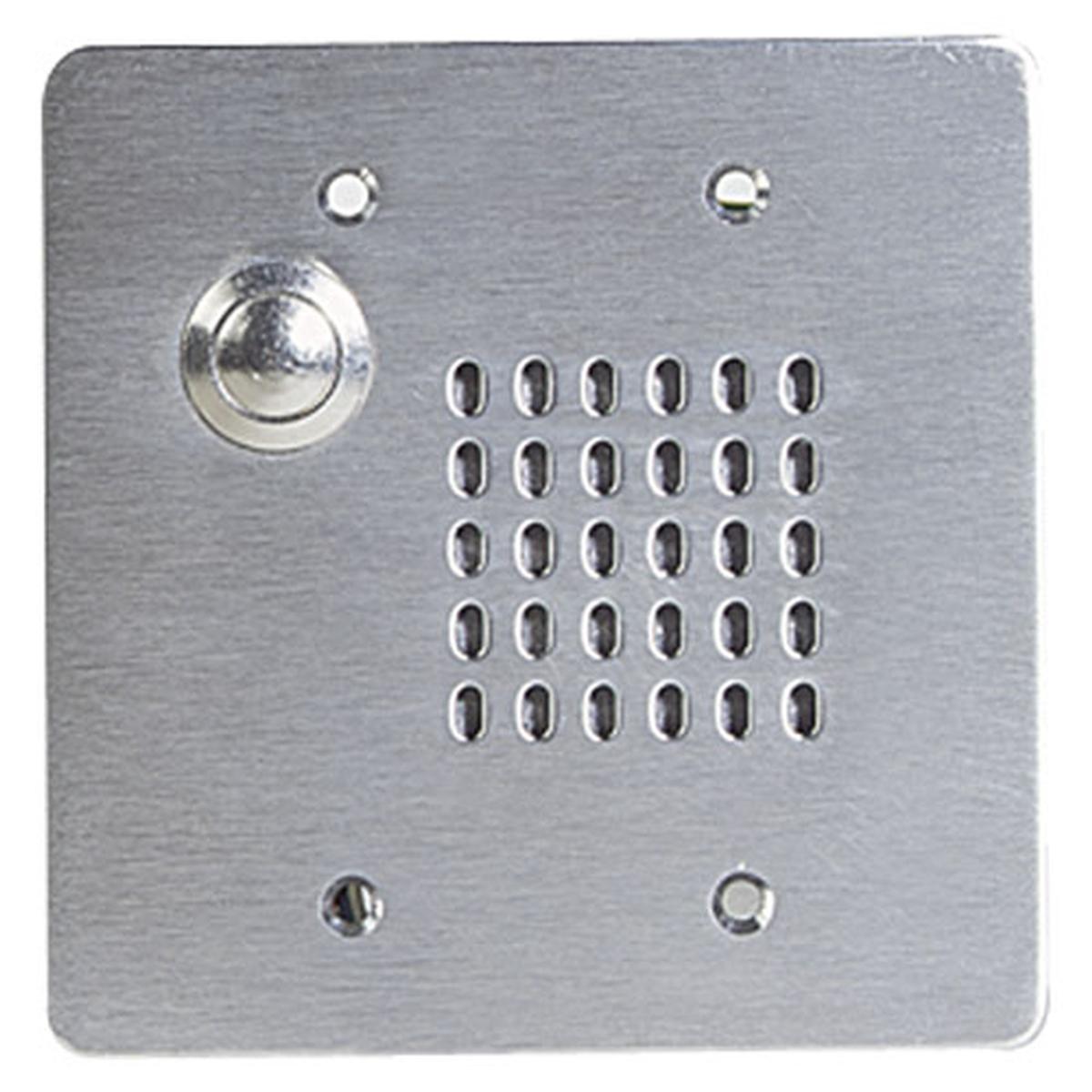

VPCS-2GPB-2 Vandal Proof Intercom Stations With Cone Loudspeaker, Call Switch and 25V Transformer made bby Atlas Sound. This is a 2-gang intercom stations (Patent applied for) provides superior intelligibility for one or two-way communication in high-security applications. Units are designed for installation in detention, correctional, and institutional facilities. VPCS intercom stations are also ideal for use in high-risk public-access spaces such as hallways, lobbies, and parking garages. Units withstand abuse, moisture, corrosion, dust, vibration, and temperature extremes from -10 to 150 F. Stations are equipped with a 2-1/2" (64mm) dia. loudspeaker to deliver clear voice and signal transmission while the phenolic resin impregnated, moisture-proof cloth cone provides durable performance. Two die cast baffles protect the speaker from vandalism. The VPCS-2GPB-2 includes a 25V transformer and a vandal-proof push-button call switch for installation where call origination is a required function or a desired adjunct to security. The face plate mounts to a standard 2 gang E.O. box with any counter sunk 6-32" mounting screw. Lead wires are 5" (127mm). Switch is single pole, single throw, normally open. Pushbutton assembly is constructed of nickel plated brass and sealed against moisture with a classification of 1P65.
Specifications
- Frequency Response 350 Hz-4500 Hz (+6dB)
- Power Taps .25W, .5W, 1W, 2W
- Sensitivity 88dB
- Transformer 25V
