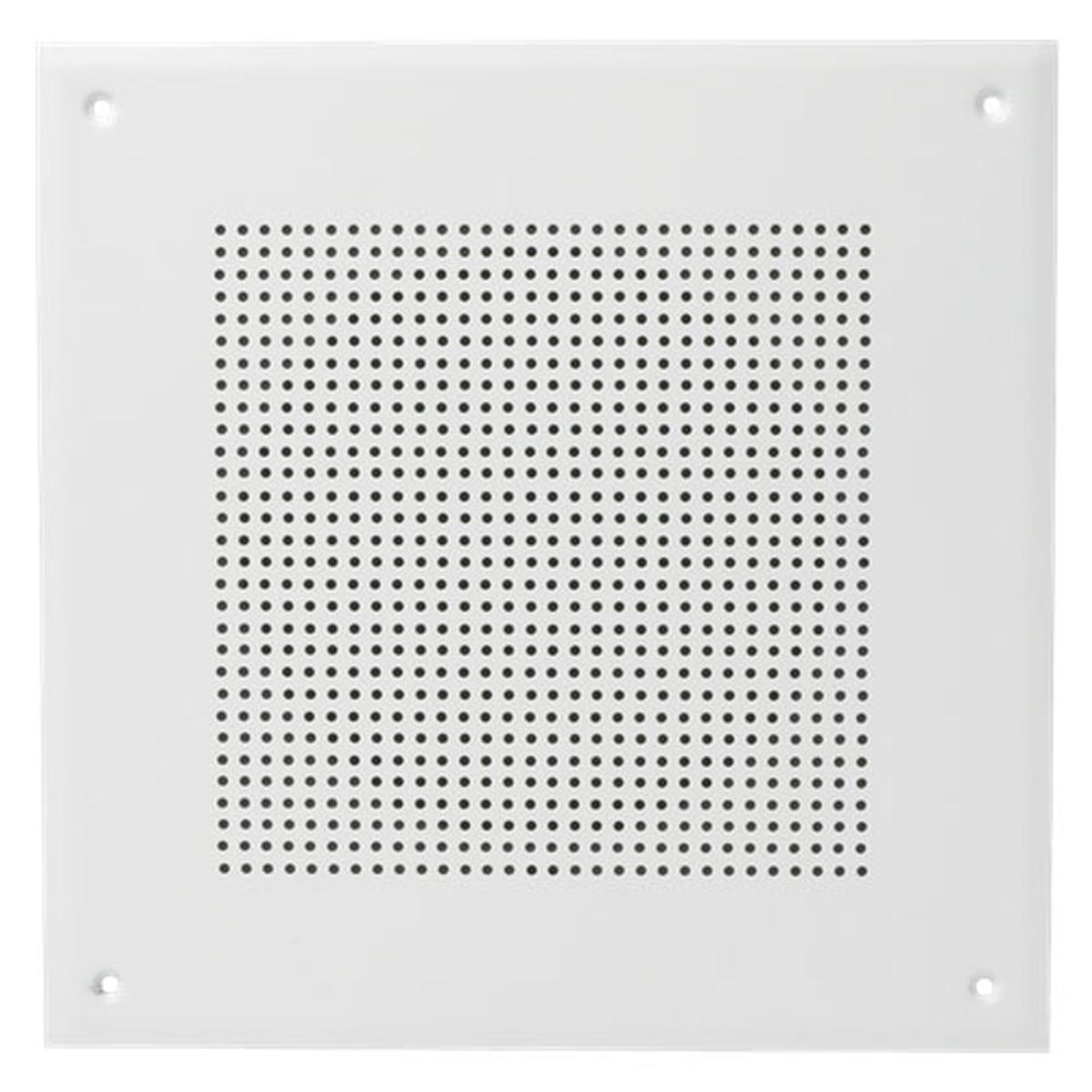

AtlasIED UHT70C-U161-8
8" Life Safety Ceiling Speaker w/ 70V-5W Xformer & Baffle

Part #: UHT70C-U161-8
Satisfaction Guaranteed!
MSRP: $108.99
Our Price: $88.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top UHT70C-U161-8 Specifications
  • Depth 2 7/8"
  • Diameter 8"
  • Shipping Weight 4.67 lbs
  • Frequency Response 85 Hz - 8 kHz
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

UHT70C-U161-8 8" Loudspeaker for Fire Protective Signaling with 70.7V-5W Transformer and U161-8 Baffle made by Atlas Sound.

Atlas Sound's UHT and UKT Series are 8" diameter single and dual voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion.

Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted transformer, 6" color-coded leads, and a wide selection of architecturally pleasing baffles. UHT Series loudspeakers have a 1" dia. voice coil, choice of 70.7 or 25-volt transformer, and DC blocking capacitor for line supervision applications. UKT Series loudspeakers are equipped with two 1" dia. voice coils, two transformers (specify 70.7 or 25 volts), and a DC blocking capacitor.

To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures.

Specifications

  • Power Taps .5, 1, 2, & 5 Watts
  • Power Rating 10 Watts
  • Sensitivity 97dB Peak, 94dB Avg.
  • UL Listed/Standard 1480
