 Home > Signal Processing -> Audio Processing -> AtlasIED -> TSD-ZDC 4 x 4 Impedance Divider / Combiner

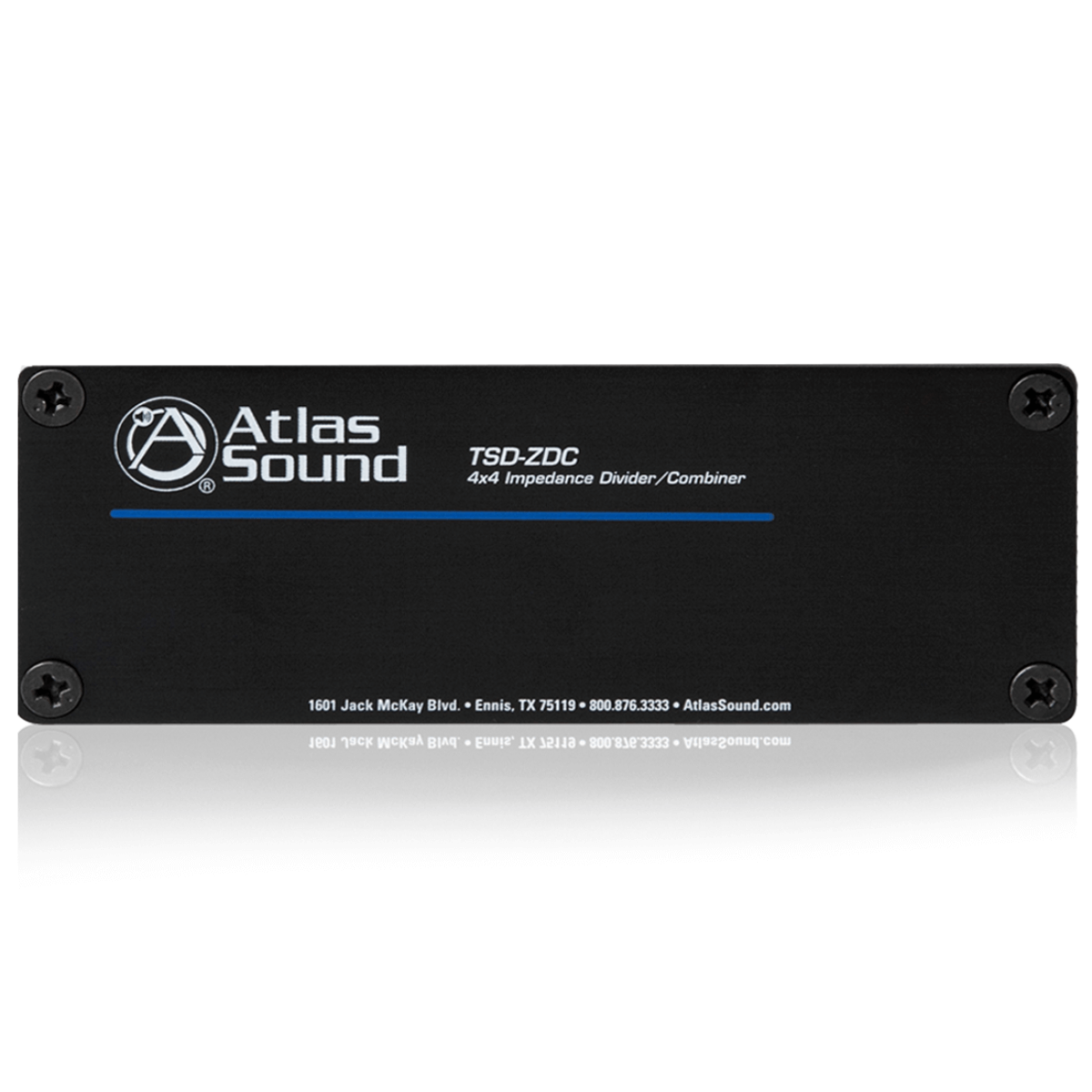

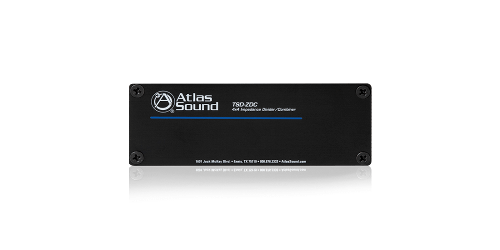

4 x 4 Impedance Divider / Combiner

Part #: TSD-ZDC
Satisfaction Guaranteed!
MSRP: $93.99
Our Price: $76.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TSD-ZDC Specifications
  • 150 ohms Network Inputs/Outputs: 4, Passive Balanced Networks, Any Channel Can Be Input or Output
  • Frequency Response: 20Hz - 20kHz
  • Height: 1.5" (3.81 cm)
  • Width: 4" (10.16 cm)
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008


The TSD-ZDC is a universal impedance divider/combiner for passively summing or splitting of mic or line level signals. Features include four unbalanced 10K and four balanced 150 ohms inputs/outputs that may be passively split or combined in any arrangement.  Typical applications include passive summation of multiple 150 ohms mics or stereo 10 ohms K sources and passive splitting of 150 ohms or 10K ohms input sources to multiple outputs.


  • Depth: 2.5" (6.35 cm)
  • Weight: 6oz., .165kg
