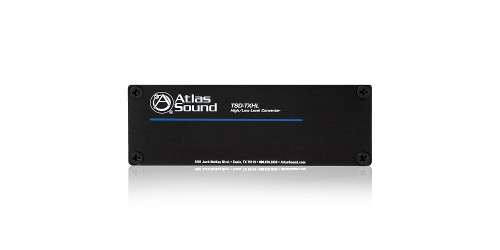

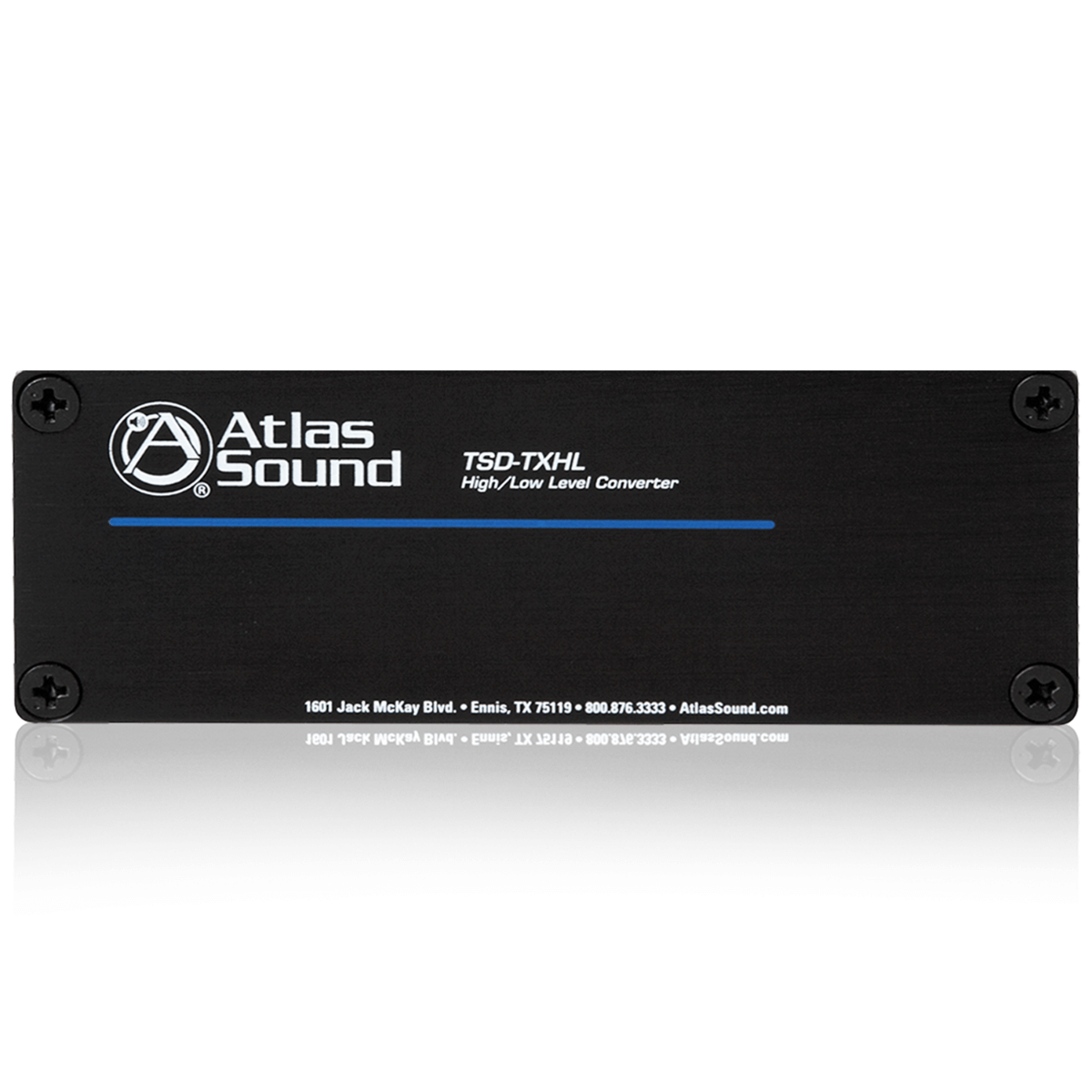

High / Low Level Converter

Part #: TSD-TXHL
Satisfaction Guaranteed!
MSRP: $79.99
Our Price: $66.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TSD-TXHL Specifications
  • High Level Input: Amplifier Speaker Outputs 4 ohms , 8 ohms , 25V, 70V and 100V
  • Output impedance: 600 ohms Unbalanced
  • Line Output Level: Max Output 500mV
  • Frequency Response: 40Hz - 25kHz
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008


The TSD-TXHL is a high to low level converter designed to interface with 4 ohms /25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with AtlasIED's CP and PA series amplifiers.


  • Height: 1.5" (3.81 cm)
  • Width: 4" (10.16 cm)
  • Depth: 2.5" (6.35 cm)
  • Weight: 6oz., .165kg
