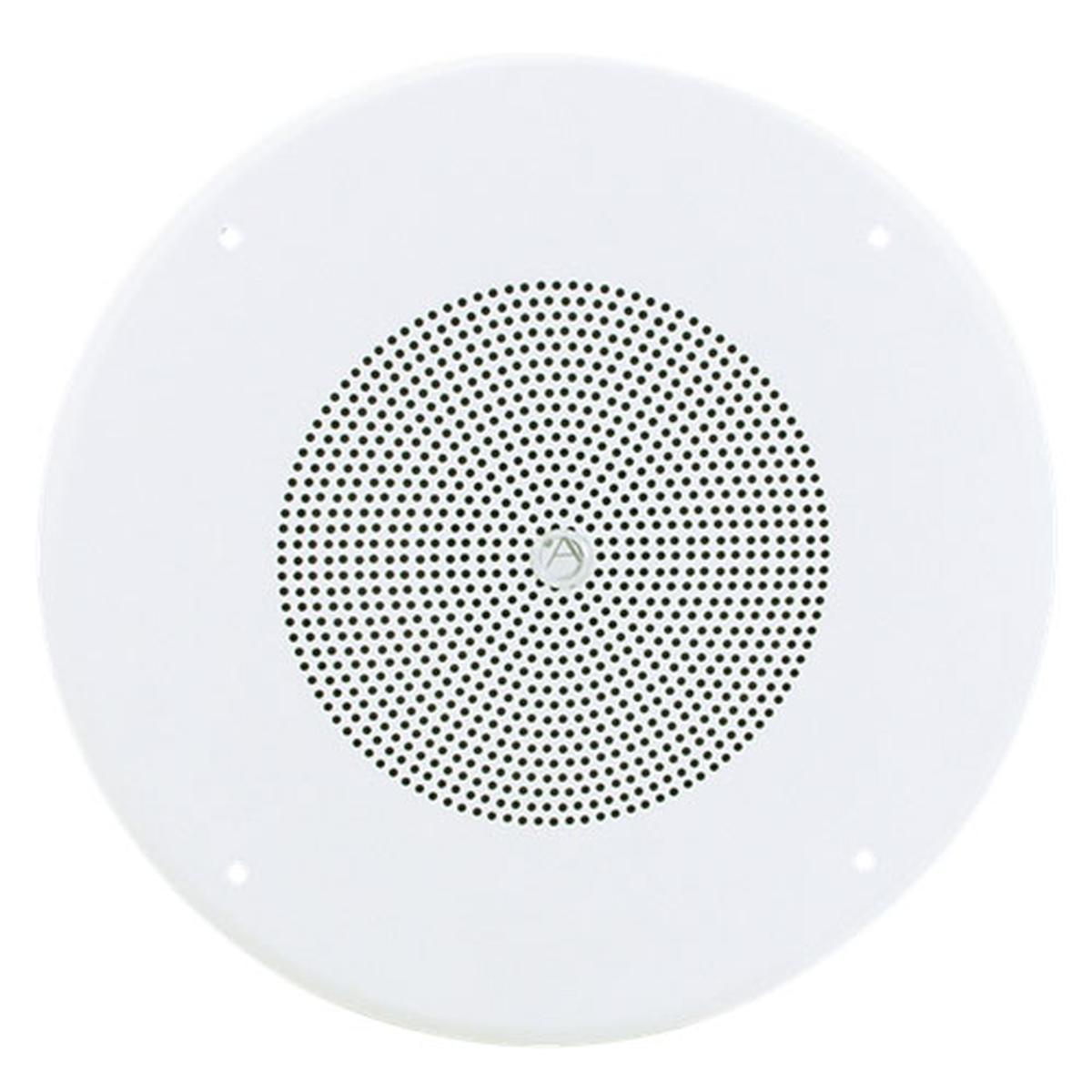

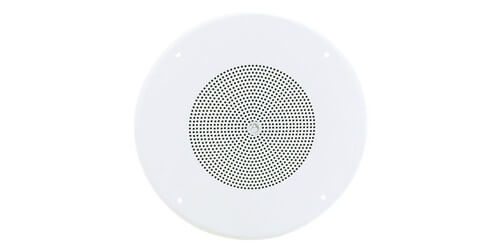

AtlasIED SD72WV
10oz 8" Cone Speaker/ 4 Watt Transformer w/ Volume Control White

Part #: SD72WV
Satisfaction Guaranteed!
MSRP: $52.99
Our Price: $43.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top SD72WV Specifications
  • Can be purchased individually, does not need to be ordered in pairs
  • Operates within a frequency response range of 45Hz-19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105
  • The baffle finish is white powder coat epoxy
  • Quality 5 watt-dual voltage transformer
"Very nice folks to work with. Quick and good information"
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The speaker used in the SD72WV is the next generation of Atlas high performance cone loudspeakers, the speaker is a dual cone, 25 watt 8" loudspeaker with a 10oz. ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

The SD72WV includes a factory installed CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The SD72WV baffle features standard mounting holes to accommodate the majority of Atlas Sound 8" tile bridges, mounting rings and enclosures. The baffle mounted volume control has a 5 watt audio rating and is factory wired to the voice coil. Units are shipped assembled, ready for installation.

Specifications

  • Depth: 2 7/8"
  • Diameter: 8 1/8"
  • Shipping Weight: 5.28 lbs
