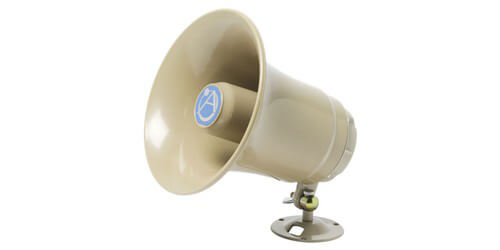

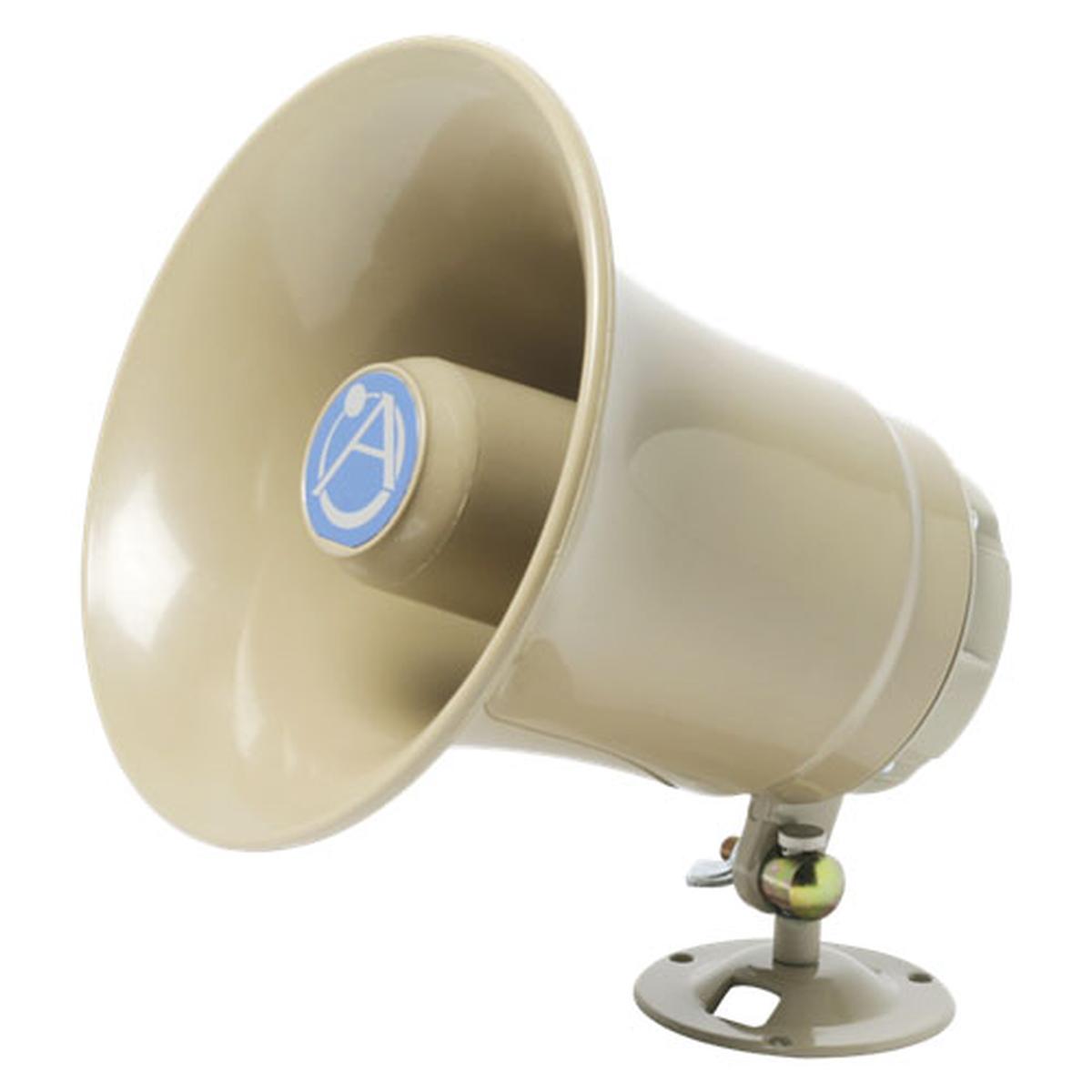

AtlasIED SC-15-45
Weatherproof 15W Paging Horn 45 Ohms

Our Price: $189.99

Request a Quote

Top SC-15-45 Specifications

Description

SC-15-45 Compact High Efficiency Paging Horns 15W @ 45 made by Atlas Sound. This Series double re-entrant acoustic path loudspeakers are low-cost, weatherproof units which reproduce voice and signal communication with high intelligibility. Models include a built-in 15-watt compression driver with 8 or 45-ohm impedance. Model SC-15-45 is a 45-ohm unit for intercom uses and Model SC-15 is an 8 ohm version for multi-purpose installations. All SC Series loudspeakers are equipped with a high impact molded plastic bell, metal mounting bracket and will an accommodate optional 70.7/25-volt transformer.

It also feature a swivel base with nut assembly for easy-to-adjust horizontal and vertical positioning. Termination is via a 12" connecting cable. Finish is light beige epoxy.

Specifications

• Impedance 45
• Dispersion 95
• Power Rating 15 watts
• Sensitivity 103dB
