Indoor/Outdoor 75W Compression Driver - 70V

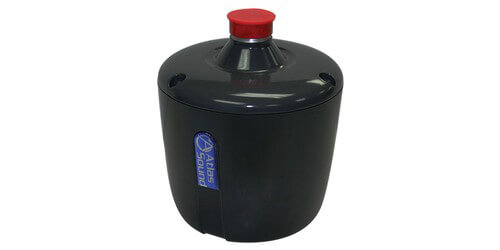

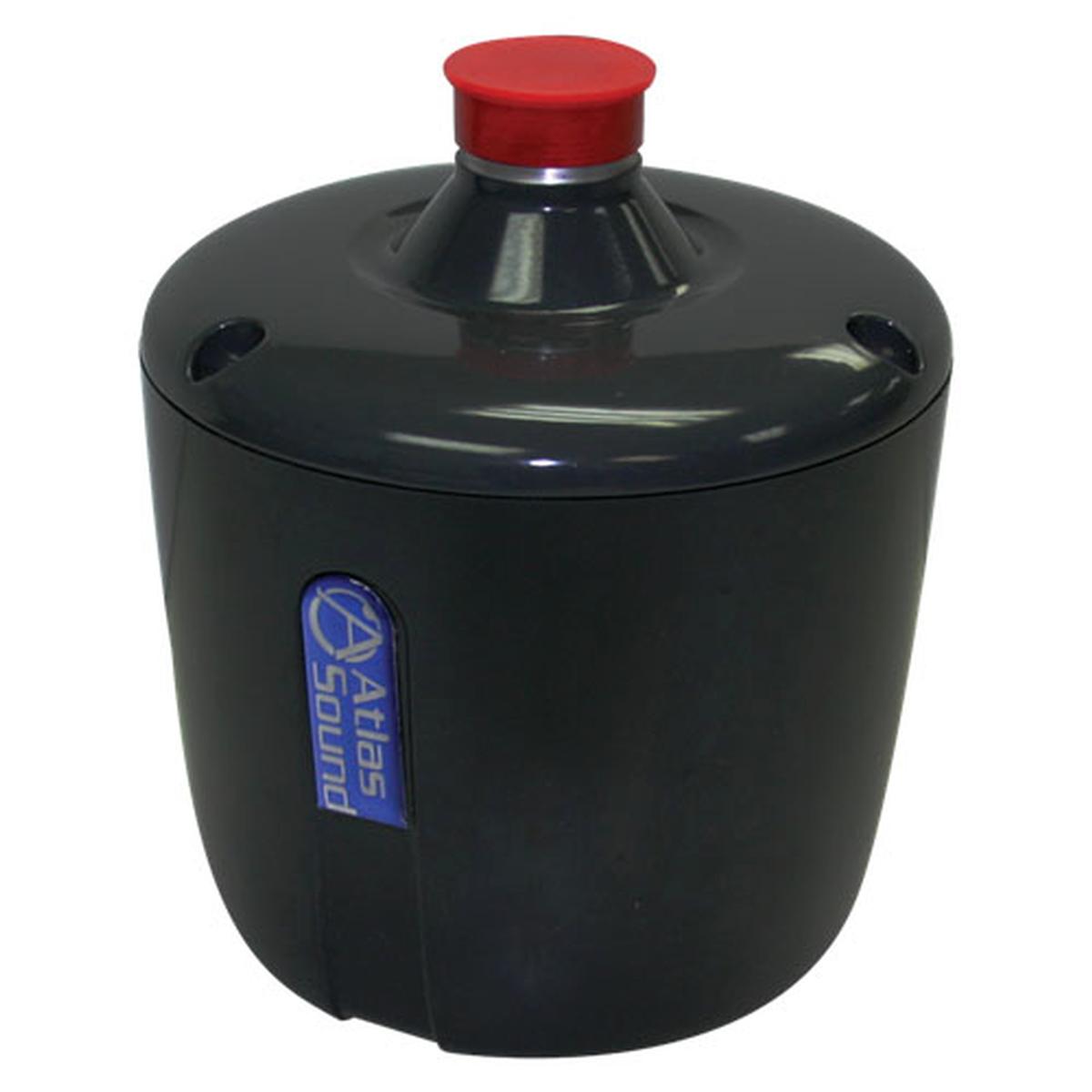

PD75THigh Efficiency Compression Driver with 70.7V-75W Transformer made by Atlas Sound. Model PD75T is a fully environment-resistant 75 Watt driver for indoor or outdoor applications and is recommended for use in expansive and/or high ambient sound-level areas.It features a sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, 2" voice coil and offers a plane wave frequency response of 100Hz - 3.7kHz (+5dB). This unit, which is made of a transformer with 16 bypass, will meet a variety of applications. The PD75T provides screw-type terminals for matching direct to the 16 voice coil impedance and a built-in varnish impregnated, multi-tap 70.7 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover. Internal components are enclosed within a protective die-cast and polycarbonate injection molded housing and finished in gray baked epoxy.
- Plane Wave Freq. Resp. 100Hz - 3.7kHz ( 5dB)
- SPL 1mW PWT 116dB Avg. 300Hz - 3kHz ( 3dB)
- Transformer Taps 2.36, 4.7, 9.4, 19, 38, & 75 Watts
- Impedance 16, 67, 133, 267, 533, 1100, & 2100
