 Home > Amplifiers -> Power Amplifiers -> 1X1 -> AtlasIED -> PA601 Single-Channel, 60W Power Amplifier

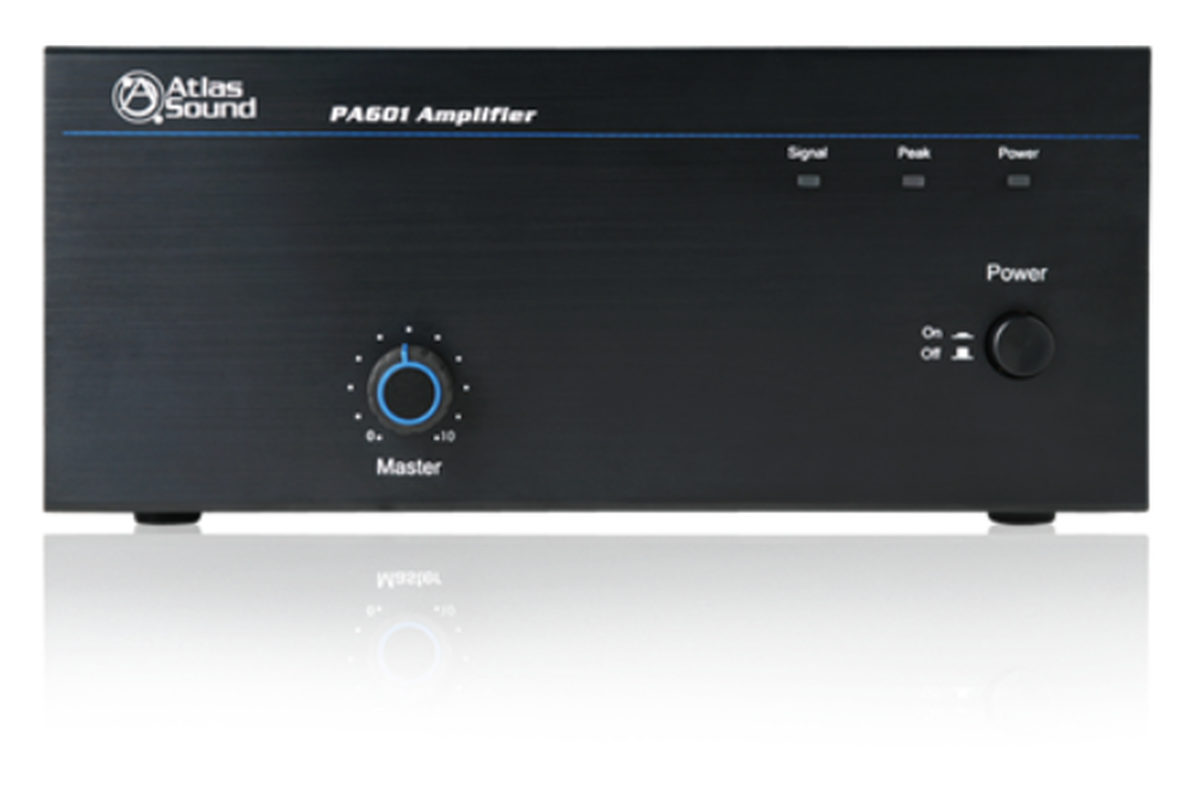

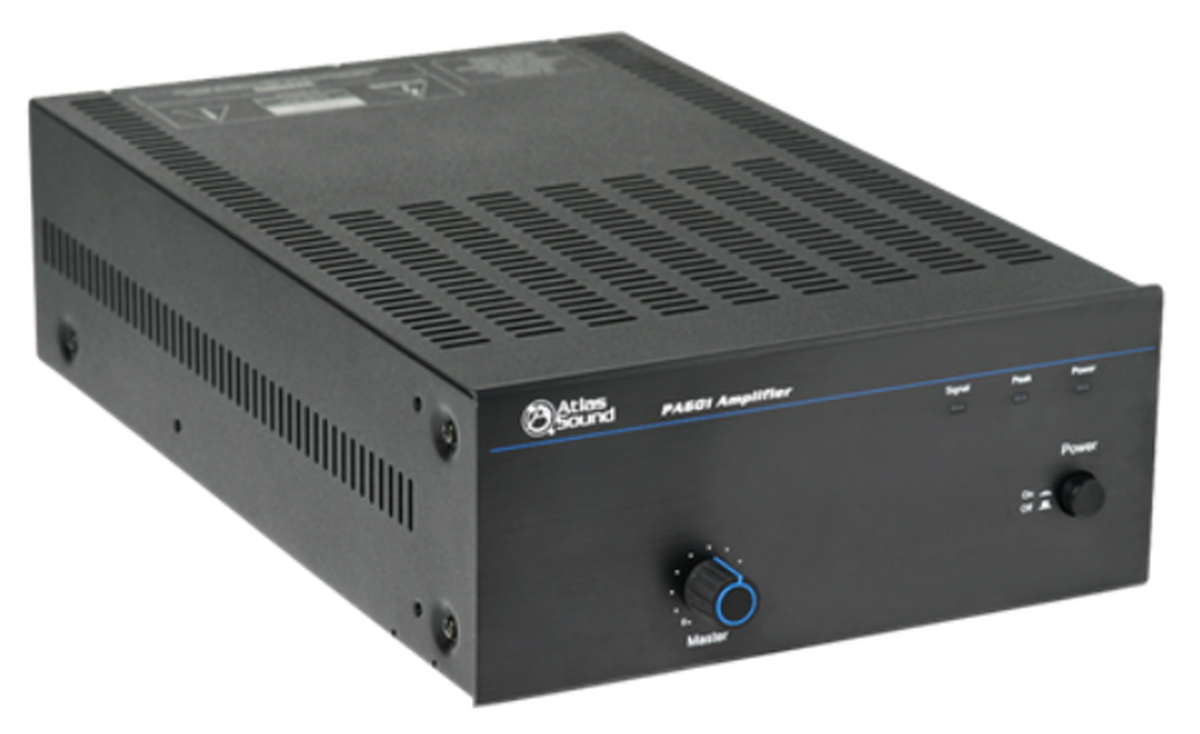

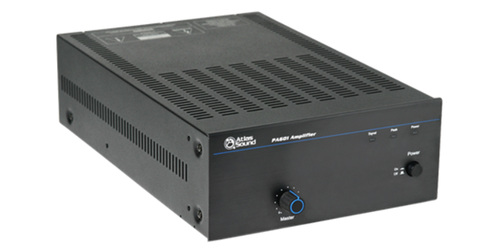

AtlasIED PA601
Single-Channel, 60W Power Amplifier

Part #: PA601
Satisfaction Guaranteed!
MSRP: $509.99
Our Price: $408.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top PA601 Specifications
  • Power Output
  • Max. Average Power: @ 50Hz-20kHz with .5% THD (10-80kHz filter)
  • 8Ohms, 1kHz, 0.5% THD 60W RMS
  • Transformer Outputs
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008

Description

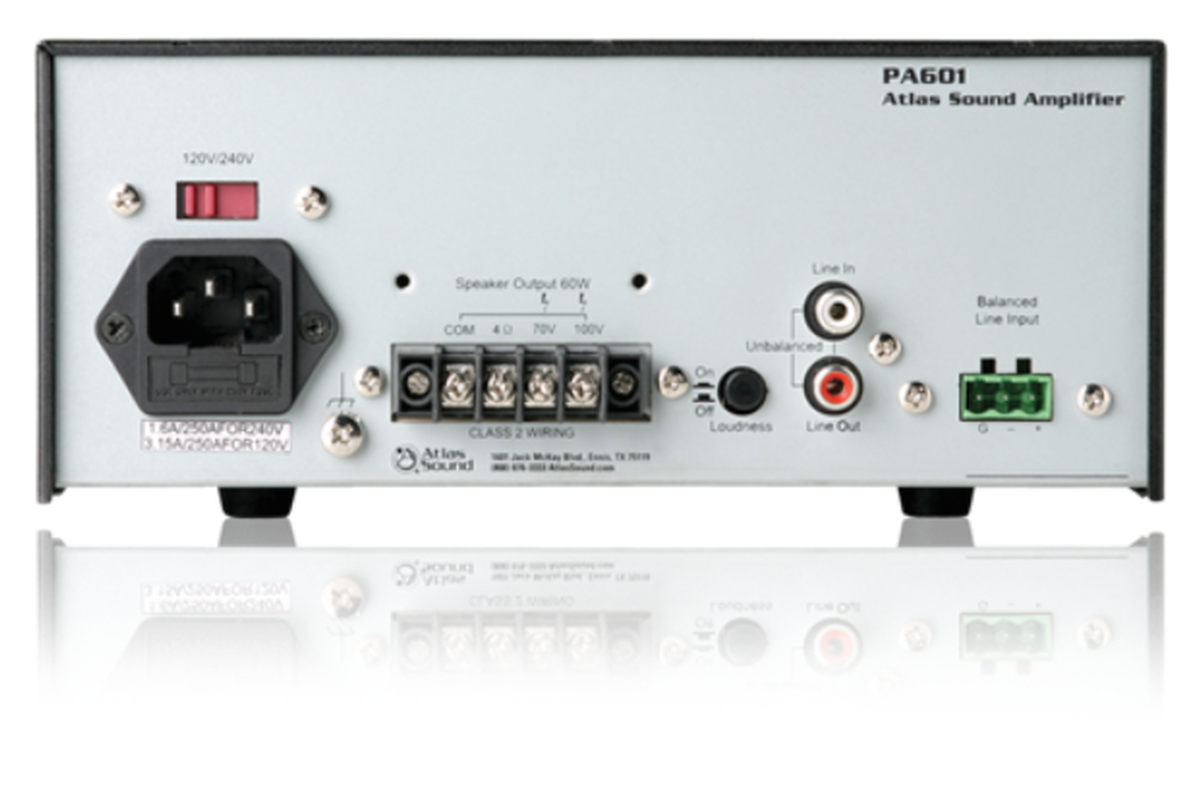

Atlas Sound's PA601 is a single-channel 1x1 power amplifier. This device features 1 balanced or unbalanced input and 1 unbalanced line output as well as a terminal block speaker output. The PA601 is a perfect fit in professional AV systems that require distributed business paging capabilities as well as those that use background music systems.

Specifications

  • 4Ohms: 60W RMS
  • 70V: 60W RMS
  • 100V: 60W RMS
  • Frequency Response
  • 50Hz-20kHz THD+N
  • 0.5% or less, at 1kHz, rated output
  • 0.1% or less, at 1kHz, 5W output
  • Sensitivity
  • Balanced Line (Phoenix): 500mV ( 6dBV) 20kOhms
  • Unbalanced (RCA): 500mV ( 6dBV) 20kOhms
  • Outputs
  • Main: Transformer coupled, balanced, 4Ohms, 70.7V, and 100V
  • Line Out: Unbalanced 600Ohms
  • Output Regulation
  • Less than 2dB, no load to full load
  • Signal to Noise Ratio
  • Balanced Line: >55dB
  • Unbalanced: >75dB
  • EQ Loudness Contour
  • Bass: +4dB @ 100Hz
  • Treble: +4dB @ 8kHz
  • Indicators
  • Power, signal, peak
  • Power Consumption
  • 120VA
  • Dimensions
  • 8.27" x 3.66" x 14" (210mm x 93mm x 357mm)
  • Weight
  • 14 lbs (6.58kg)
  • Warranty
  • 3 years
