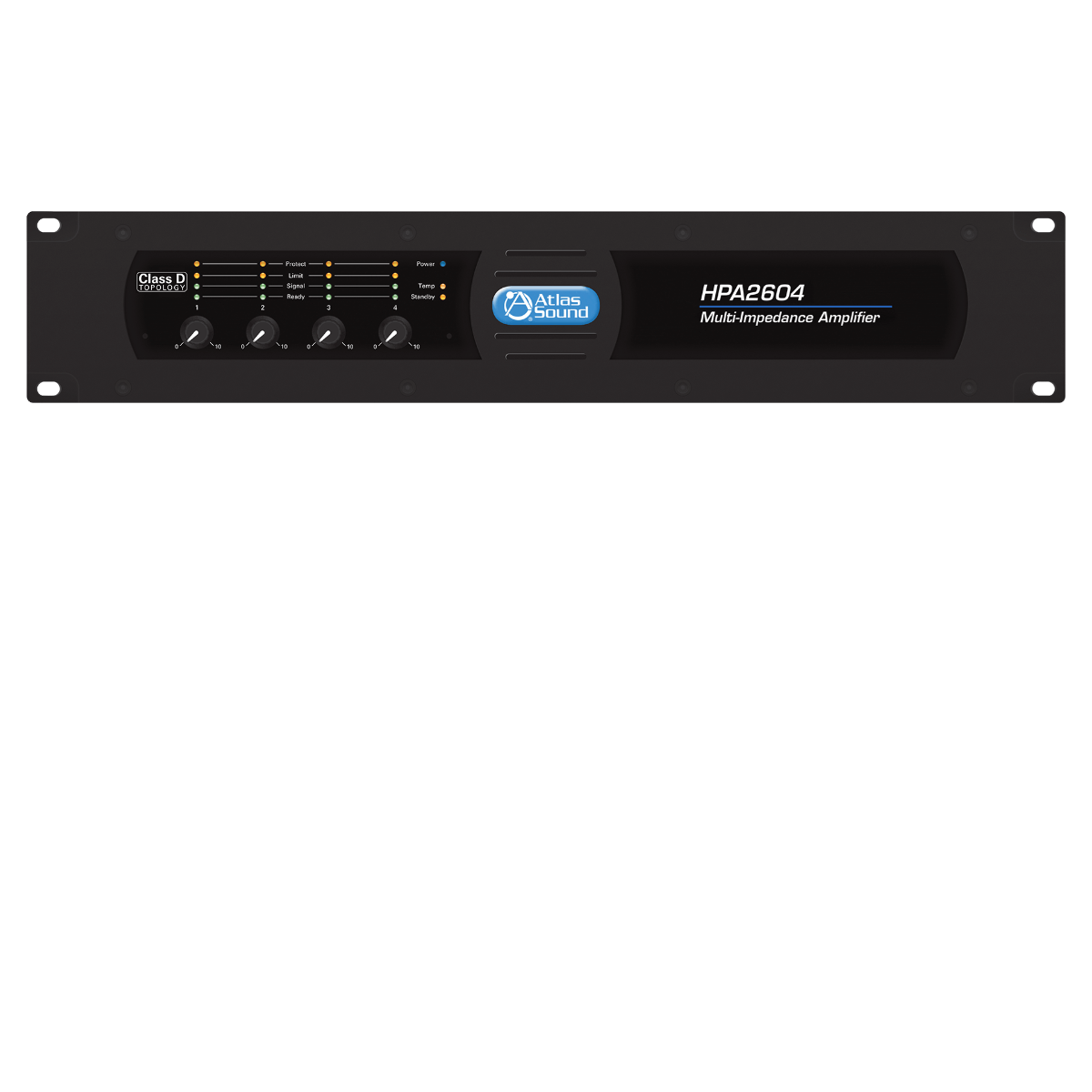

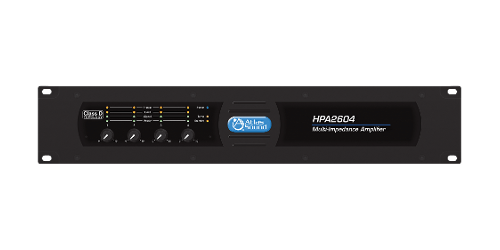

AtlasIED HPA2604
Four-Channel, 2600-Watt Commercial Amplifier
- Power Output:
- 70.7V: 4 x 650W
- 100V: 4 x 650W
- 8 ohms : 4 x 650W
-Timothy J.
Description
The AtlasIED High Power Amplifier HPA Series has been designed to be versatile for uses in both commercial 70V distributed systems and professional applications that require amplifiers to handle 4 and 8 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels. The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any speaker load.
Specifications
- 4 ohms : 4 x 650W
- 2 ohms : NA
- 8 ohms Bridged: NA
- 1 ohms RMS Power Output: NA
- Frequency Response: 20Hz - 20kHz
- THD: <0.15%
- Channels: Four
- Signal to Noise Ratio: >70dB
- Connector Type: Terminal Block & Phoenix
- Number of Fans: 1 - Variable Speed
- BTU All Channels Driven AES: 2132.5 BTU (70.7V, 120VAC)
- Max Current All Channels Driven Continuous: 26.9A
- Rack Units: 2 RU
- Height: 3.5" (89mm)
- Width: 19" (483mm)
- Depth: 15" (381mm)
- Voltage Compatibility: Universal
- Weight: 22. (10kg)
- Finish: Black
