8" Coax Loudspeaker w/ 70V 8W Transformer

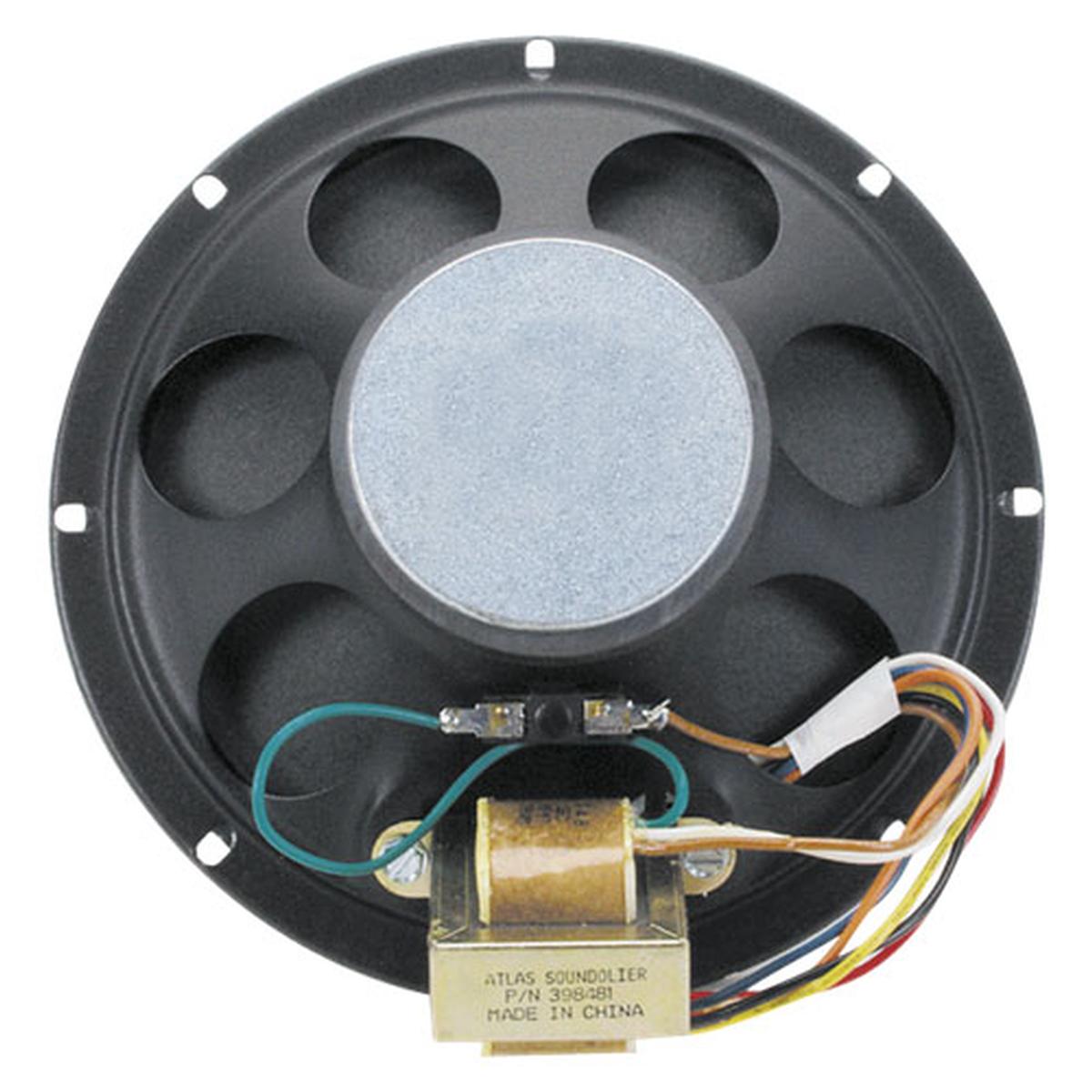

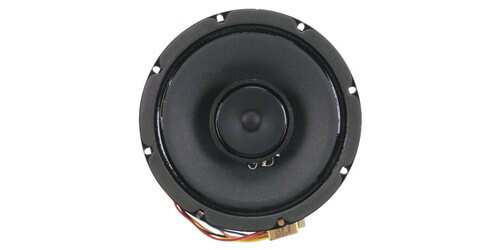

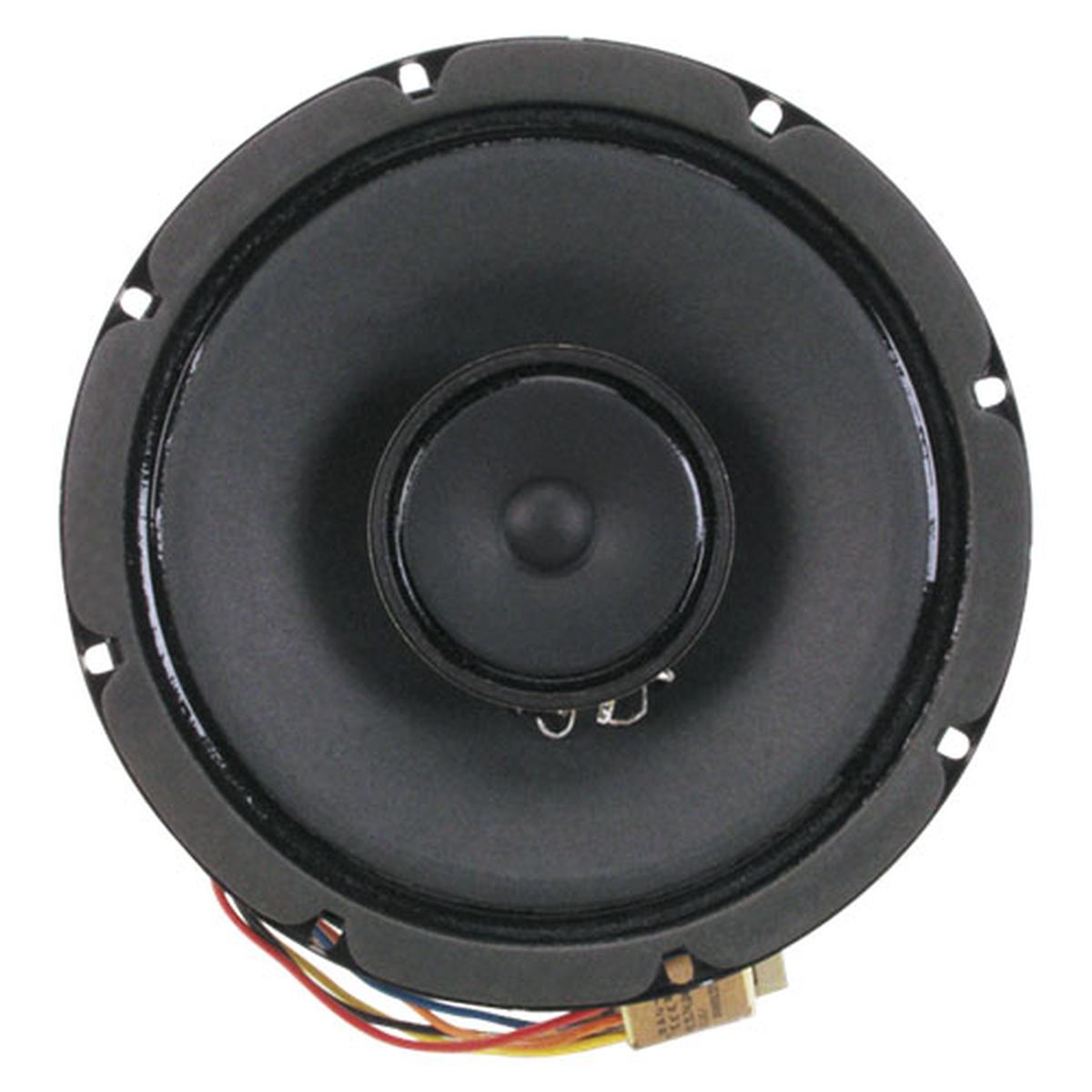

GD878" Coaxial Loudspeaker with 70.7V-8W Transformer by Atlas Sound. This is a high performance coaxial loudspeaker with performance specifications identical to the legendary Atlas Sound Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the new GD87 without any noticeable sonic or performance differences.The high-quality, 16 watt Model GD87 utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 45Hz-19kHz (nominal) frequency response and a broad, uniform dispersion pattern of 105 (2kHz octave band). The GD87 combines a full-size 8" dia., low-frequency reproducer and a 3" high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. ceramic magnet; the tweeter has a 2.35 oz. ceramic magnet. The unit has an average sensitivity of 96dB (1W/1M). The loudspeaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz to 15kHz. The primary taps are 1, 2, 4, and 8 watts.
- Dispersion 105 (2kHz Octave Band, -6dB Points)
- Depth 2 7/8"
- Diameter 8 1/8"
- Shipping Weight 4.33 lbs
- UL Listed/Standard 1480, 2043
