AtlasIED FC104T72FRK
4" Wide Dispersion Fire Rated Loudspeaker 25V/70.7V 4W Xformer
- Height 10 3/4"
- Width 24"
- Depth 24"
- Shipping Weight 0.00 lbs
-Lynn Y.
Description

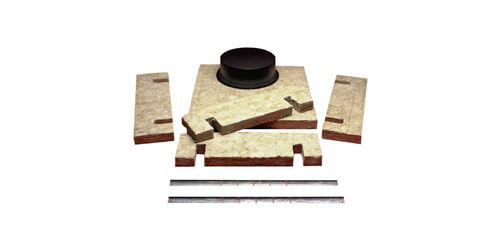

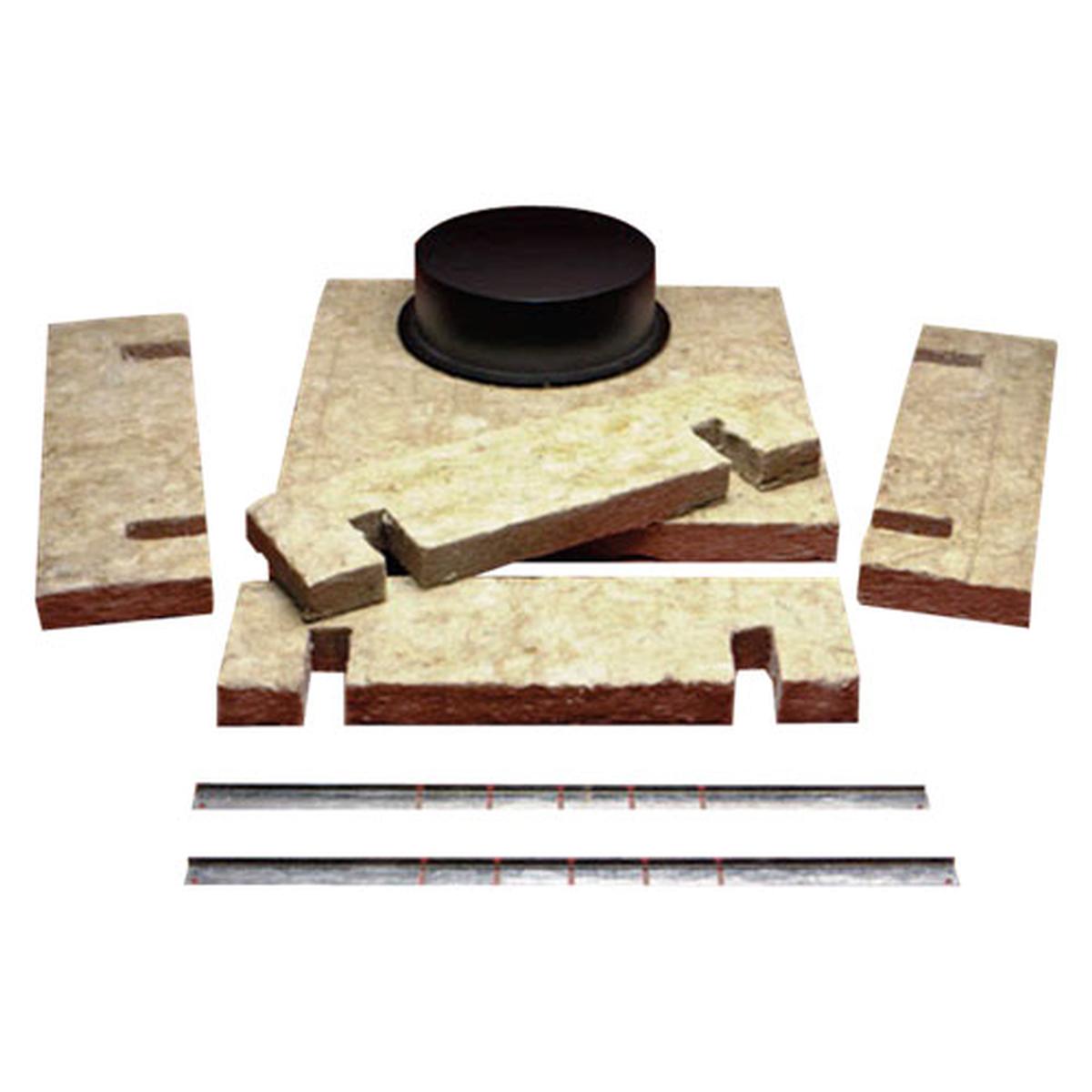

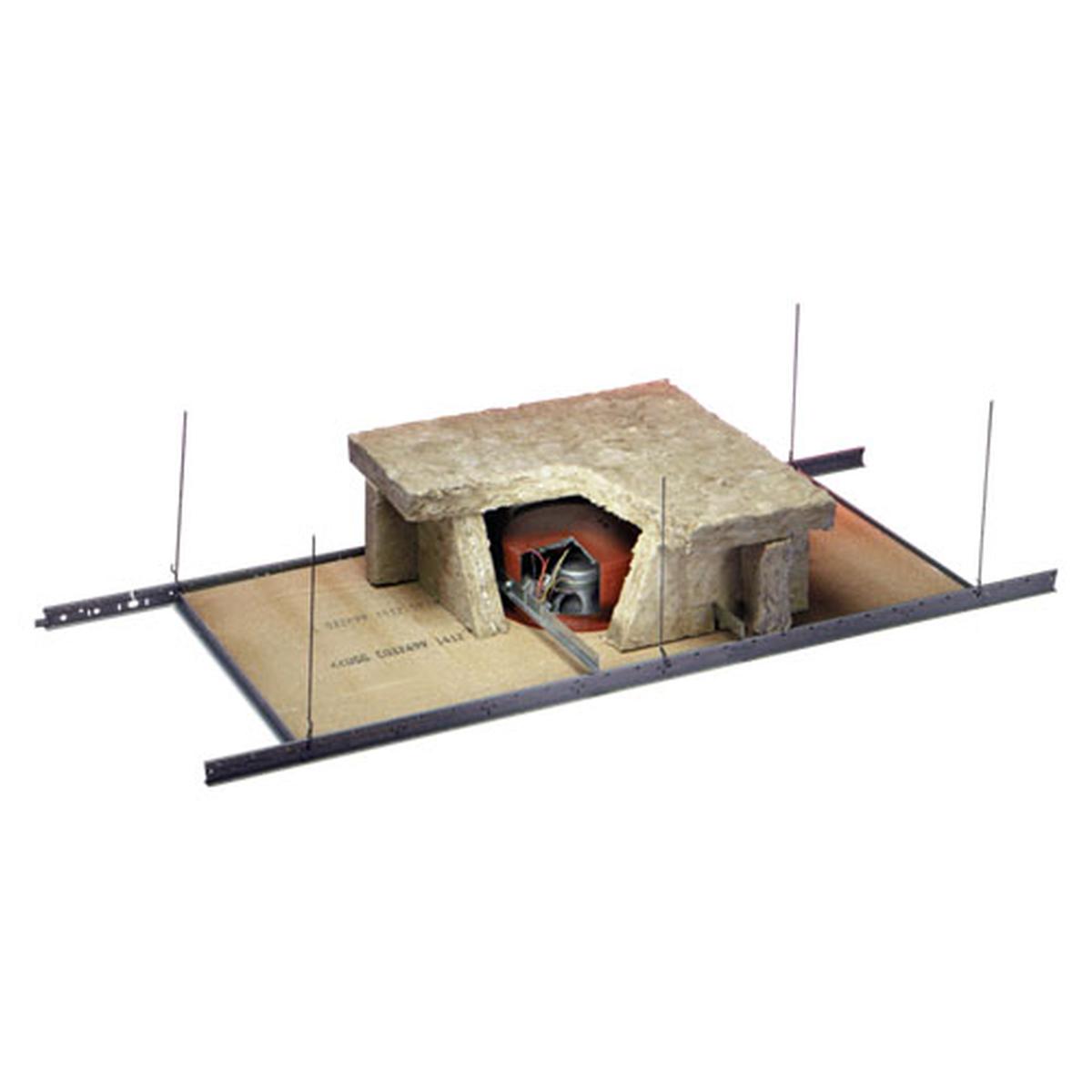

FC104T72FRK Fire Rated 4" Standard Loudspeakers (UL Listed) 25/70.7V-4W xfmr made by Atlas Sound. This model is UL classified for fire-resistance in the United States and Canada. This unit has passed a fire-rating up to three hours (rating varies by ceiling construction), and has been tested in accordance with the UL standard Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). It is pre-manufactured and assembles quickly on-site with no special tools or skills. The assembly includes an enclosure-fiber kit, UL listed speaker/transformer assembly, and choice of UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set, and hardware. Atlas-Sound FR Series offers a wide variety of cost, performance, and aesthetic options.
The 43 speaker/transformer combinations approved for use in FR assemblies are FR versions of the industry standard Atlas-Sound Strategy Series FA134, FA136, FA138 models and the C803A, C5A, C10A, and FC104 loudspeakers. The approved baffles are also FR versions of familiar Atlas-Sound models. To maintain UL Classification for fire-resistance, enclosure-fiber kits must be used with FR Series components.Specifications
- Included Baffle 51-4FR
- Included Speaker 96-4FR
- Included Enclosure FC104T72FR
- UL Listed/Standard ANSI / UL 263
