AtlasIED FA138
8" Coaxial Loudspeaker, 100 Watts at 8 Ohms

Our Price: $68.99

Request a Quote

Top FA138 Specifications

Description

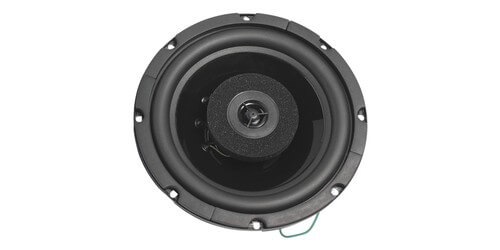

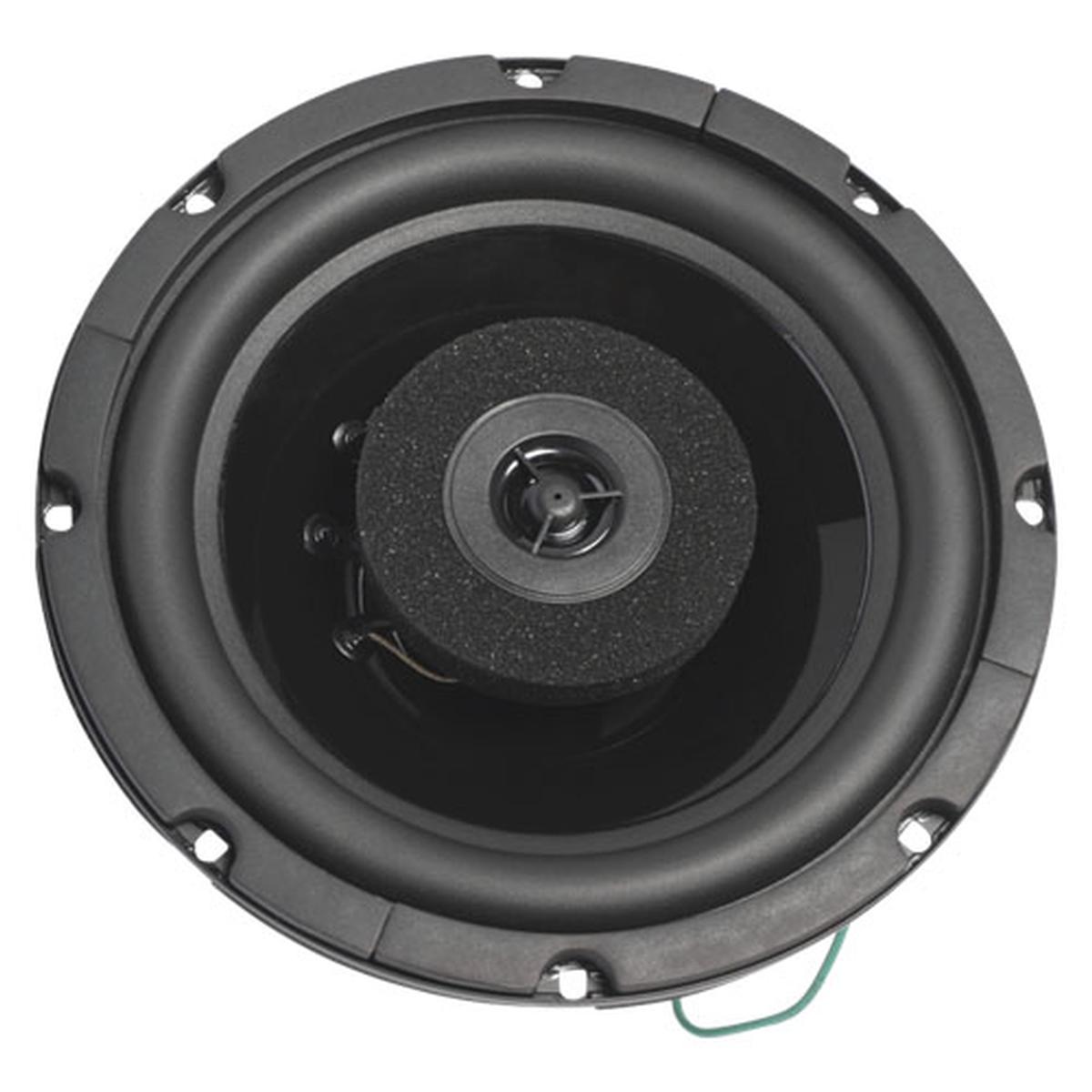

FA138 8" Coaxial Loudspeaker 100W @ 8 b Atlas Sound is 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1-1/2" vented Kapton voice coil, a 21 oz. magnet and a 1/2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.

For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures.

For easy application Loudspeakers may also be installed on ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.

Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.

Specifications

• Dispersion 110
• Sensitivity 89.5dB Average, 93dB Peak
• Shipping Weight 5.20 lbs
• Frequency Response 75 Hz- 20 kHz (+5dB)
• UL Listed/Standard 1480 / 2043

Downloads

• AtlasIED FA138 Specifications (PDF)
• Atlas Sound Installation Sheet (PDF)
