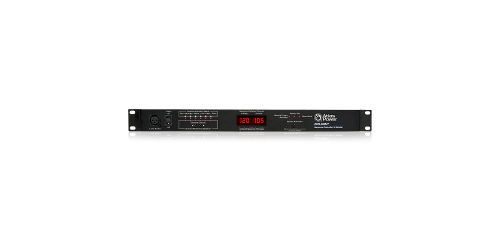

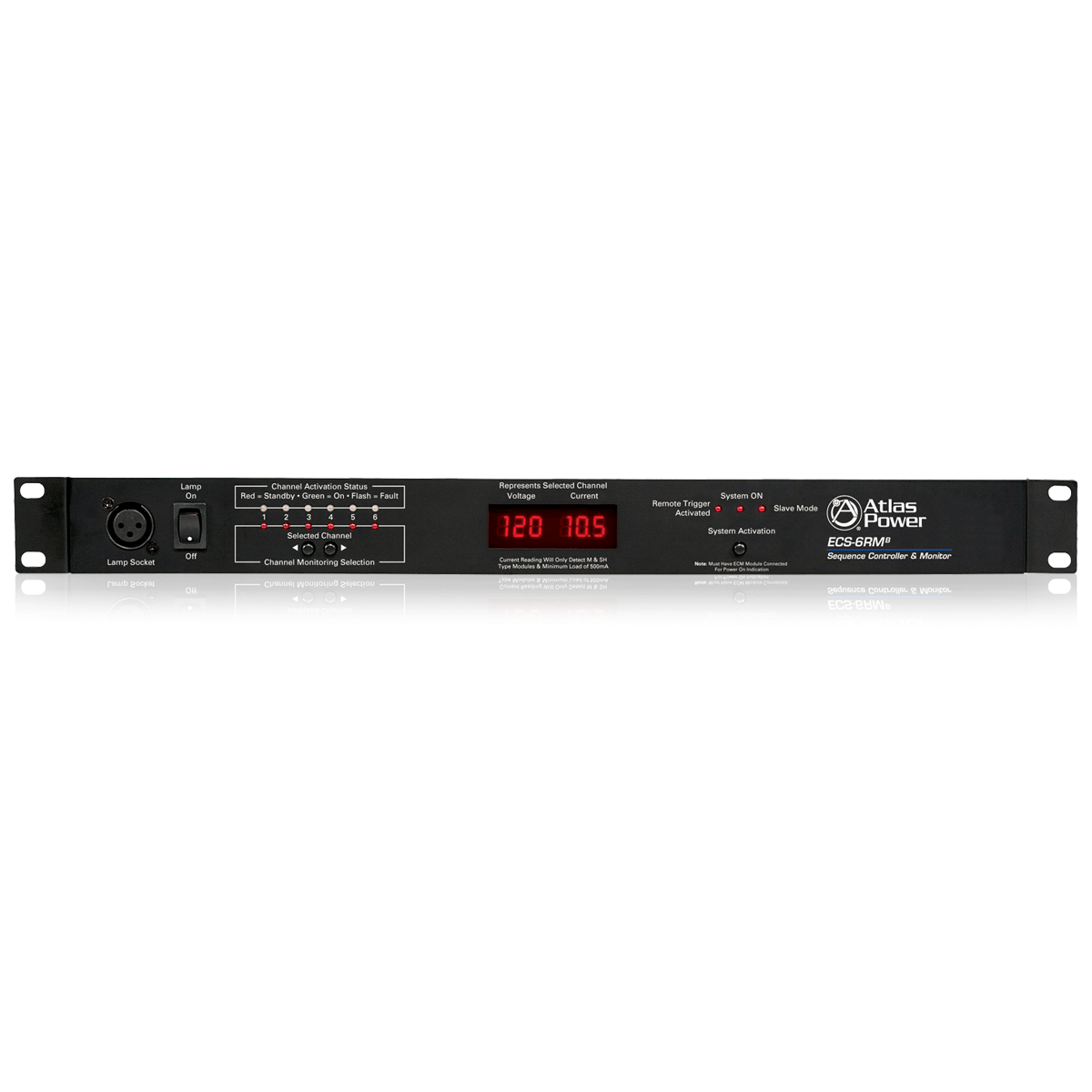

AtlasIED ECS-6RM
AC Sequence Controller and Monitor

Part #: ECS-6RM
Satisfaction Guaranteed!
MSRP: $842.99
Our Price: $675.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $25 Off!
Top ECS-6RM Specifications
  • Sequencer Sections: 6
  • Light: XLR Socket to Provide 12VDC for Optional 16" Gooseneck Lamp AP-GNL18
  • Sequence Timing: Unit Settings of 1, 3 or 6 Seconds
  • Power Supply: External Wide Rage 100V-240VAC, UL Approval
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

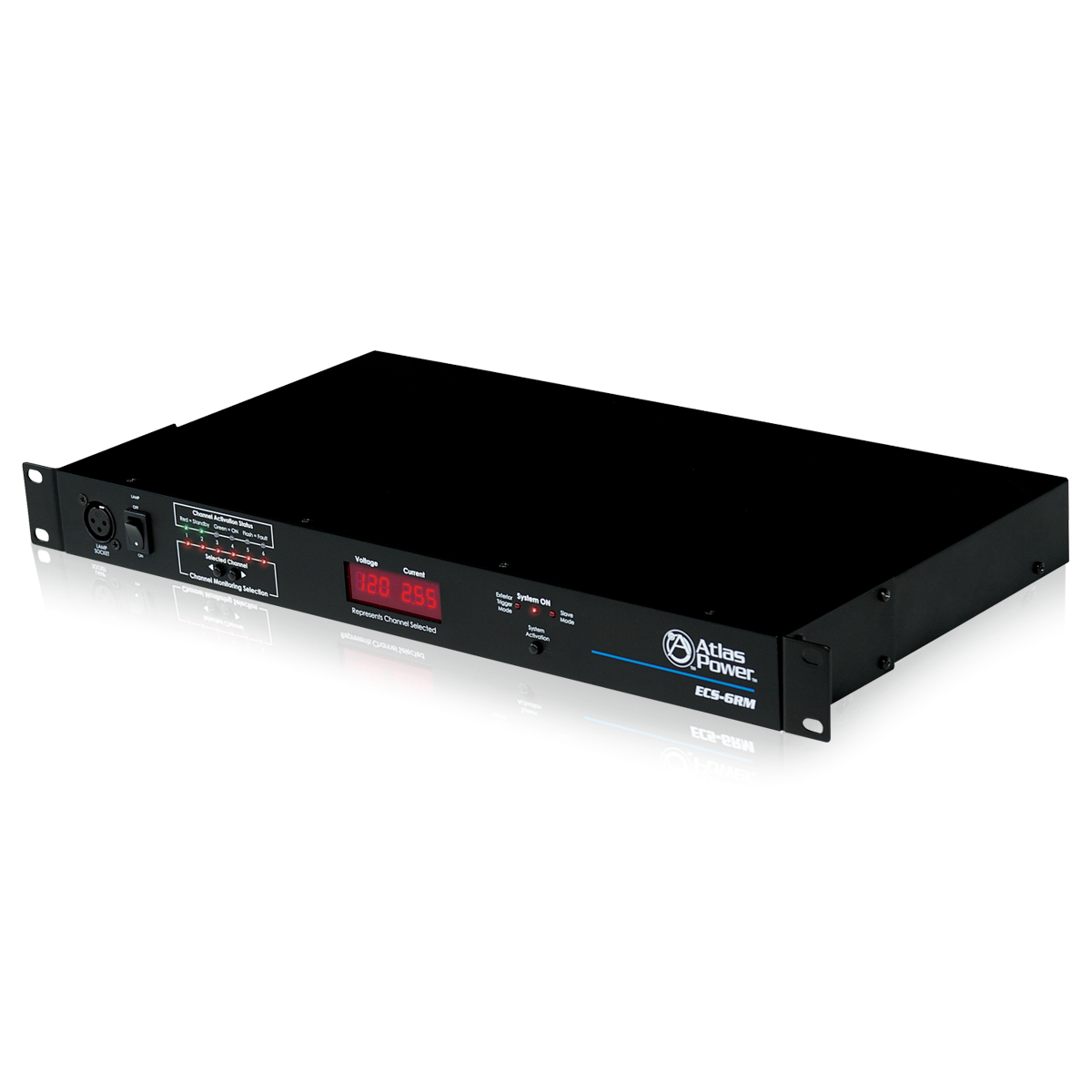

The ECS-6RM modular system has been designed to meet most installation requirements for Power Products, equipment power conditioning and surge suppression protection. The compact 1 RU unit features six sequential timing sections that can be activated via the unit, or remotely. Up to three ECS-6RM units can be daisy chained together with independent trigger timing settings giving you a total of 18 sequence triggered outlets. The ECS-6RM unit is the activation controller/monitor portion of the system and requires a 120V AC Mains ECM (Electrical Controlled Module) module for each triggered output. A variety of remote ECM AC modules are available to meet different installation requirements.

Specifications

  • Power Consumption: .8 Watts
  • RoHS Compliant: Yes
  • LED Light Switch: Two Position On/Off
  • Activation Switch: Momentary
  • AC Mains Voltmeter: Three Digits Digital
  • Indicators: System On, External Trigger Mode, Slave Mode

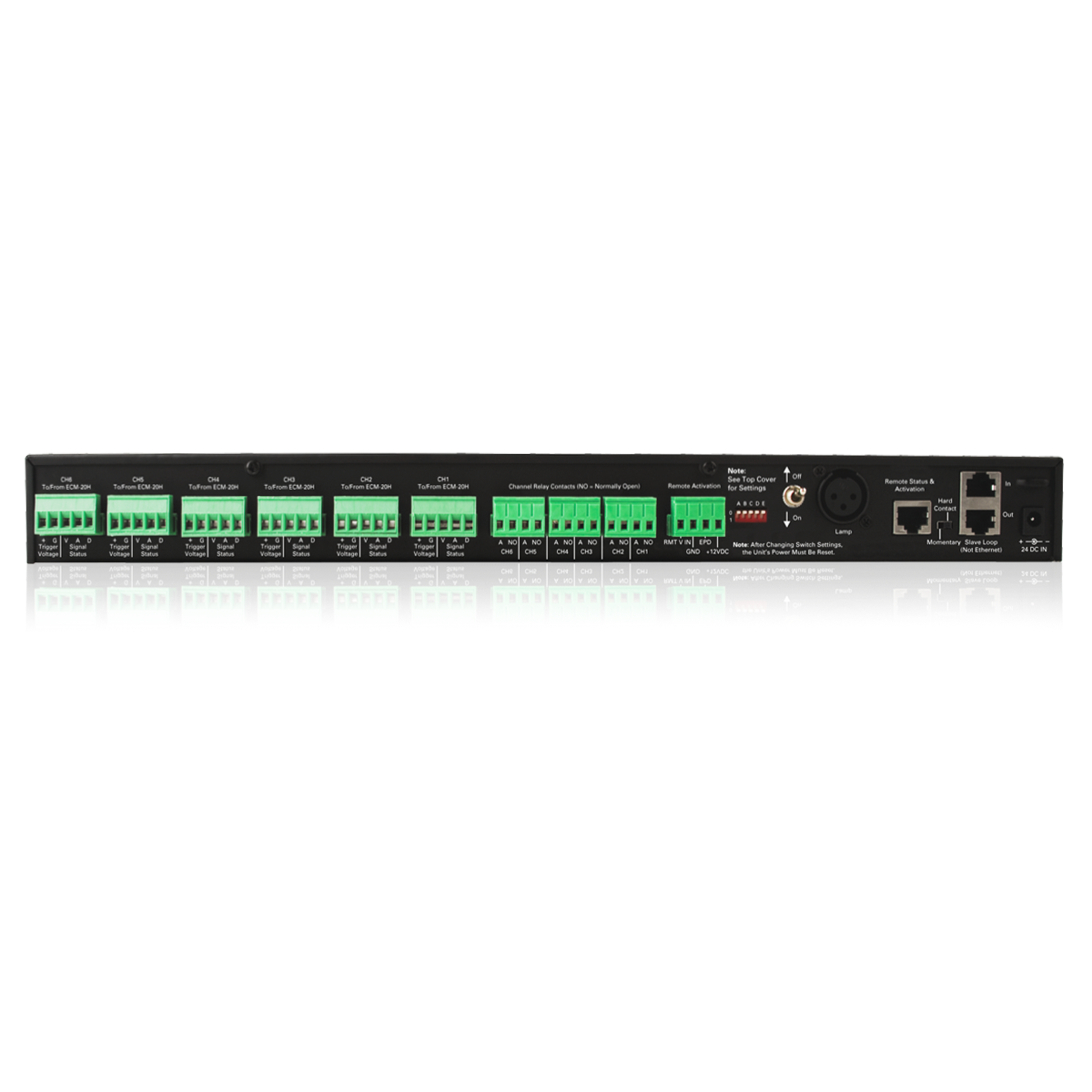

  • Remote Activation Trigger: 5-24VDC Continuous 10 mA, Switch Contacts, Euro/Phoenix Type Connector
  • Height: 1.75" (44.45mm)
  • Width: 19" (482.6mm)
  • Depth: 10" (254mm)
