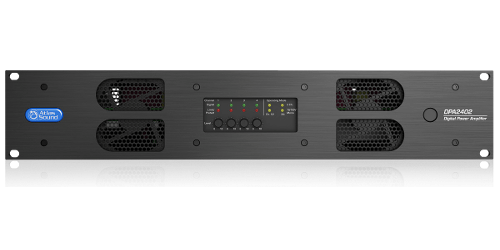

AtlasIED DPA2402
2400-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio

Part #: DPA2402
Satisfaction Guaranteed!
MSRP: $2,099.99
Our Price: $1,680.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top DPA2402 Specifications
  • Power Output: 2 x 1200-Watts @ 70.7V
  • Power Output: 2 x 1200-Watts @ 100V
  • Power Output: 4 x 500-Watts @ 4 ohms
  • Power Output: 4 x 300-Watts @ 8 ohms
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The AtlasIED DPA2402 features a combination of flexibility, performance and control to provide high value features for applications that require more than just great sound. The network based DPA2402 is a DSP controlled 4-channel amplifier that can be configured in three different amplification arrangements to meet the design requirements of any installation.

Specifications

  • Power Output: 1 x 1200-Watts @ 70.7V, 2 x 600-Watts @ 4 ohms
  • Power Output: 1 x 1200-Watts @ 100V, 2 x 600-Watts @ 4 ohms
  • Amplifier Topology: Class AB Switching Hybrid -BASH
  • Input Sensitivity: 750mV Balanced, 0dBU
  • Input impedance: Balanced 40k ohms
  • Maximum Input Signal: +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante
  • THD: 1% @ Rated Output
  • Frequency Response: -3dB 20Hz - 20kHz (DSP Filters Set to Flat)
  • Crosstalk: 73dB @ 1kHz
  • Voltage: 110V - 120V &
  • 220V - 240V Auto Switch Over, 50/60Hz
  • Idle Current: 26W
  • Rack Units: 2
  • Height: 3.47" (89mm)
  • Width: 19" (483mm)
  • Depth: 14.5" (368mm)
  • Signal to Noise Ratio: -100dB Below Rated output (A-Weighted)
  • Weight: 20.8. (9.53kg)
  • Voltage Compatibility: Universal
