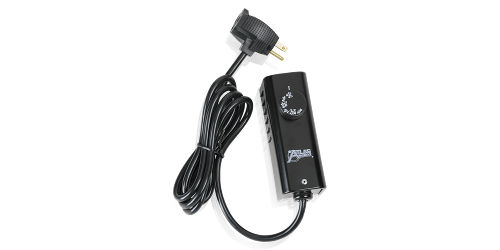

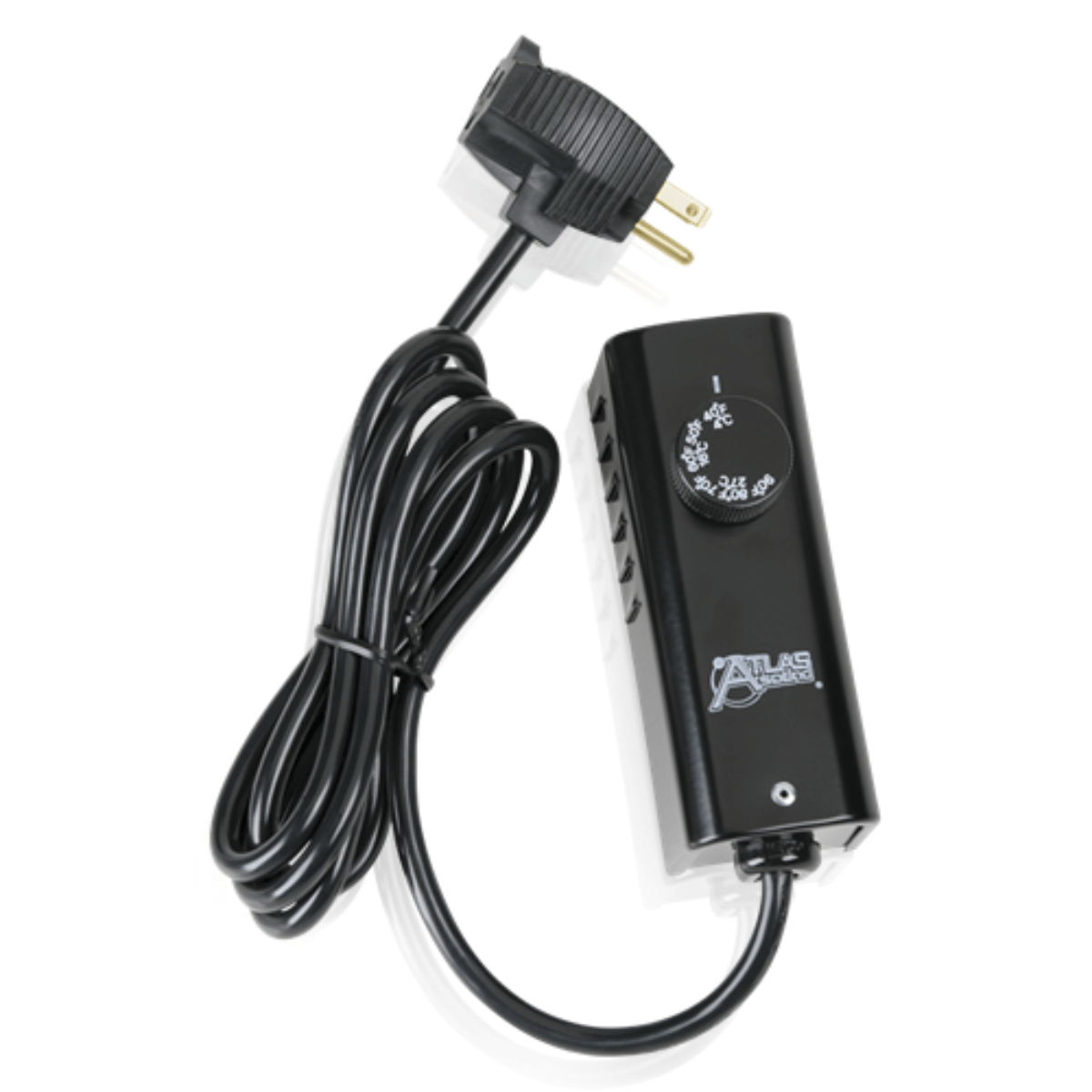

AtlasIED CFT-125
Fan Thermostat
- Height: 5 1/2" (13.97 cm)
- Width: 1 1/2" (3.81 cm)
- Depth: 2 1/2" (6.35 cm)
- Shipping Weight: 2 (0.91 kgs)
-Maciej Z.
Description
Rack cooling fans are normally installed and then forgotten, running continuously at full speed whether or not the equipment inside needs cooling. The AtlasIED CFT-125 is a simple, effective correction to that habit i.e., an equipment-mount thermostat that provides ventilation control for fans or other cooling equipment. Thus, switching them on only when the temperature inside the enclosure actually calls for it.
Adjustable 40°F to 90°F switching
Operation is deliberately straightforward. An adjustable dial sets the trigger point anywhere from 40°F to 90°F. The thermostat engages and disengages the connected fan automatically around that setpoint.
A three-wire extension cord with a series plug makes installation easy with no rewiring because the fan plugs into the thermostat. Then the thermostat plugs into the outlet, and the dial is set. A wire hanger and keyhole slots handle mounting inside a rack, credenza, equipment closet or projector enclosure.
The benefits compound in ways that are easy to underestimate. Fans that run only when needed last considerably longer, and their filters need replacing far less often. This is a meaningful reduction in the maintenance burden across an estate of rooms.
Power consumption drops correspondingly. Most noticeably in occupied spaces, ambient noise falls: a boardroom credenza whose fans idle silently until the amplifier actually warms up is a materially better room than one with a constant background whir.
Physically the unit measures 5.5" high × 1.5" wide × 2.5" deep and ships at 2 lbs. It is UL listed to standard 873 and carries a 12-month manufacturer warranty from date of purchase. CAD drawings and a datasheet are available for anyone documenting an enclosure design.
Lower running costs, longer fan life, quieter rooms
Conference Room AV is as an authorized AtlasIED dealer and offers free shipping with 30-day returns policy.
For integrators specifying thermal management in furniture-mounted or closet-mounted racks, it is an inexpensive component that improves equipment life, running costs and the acoustic character of the room at the same time.
It works well alongside passive ventilation such as the Middle Atlantic GRK-LVT24 vented rack top or the deeper GRK-LVT30, which give the warmed air a place to go.
Specifications
- Safety Listed: 873
