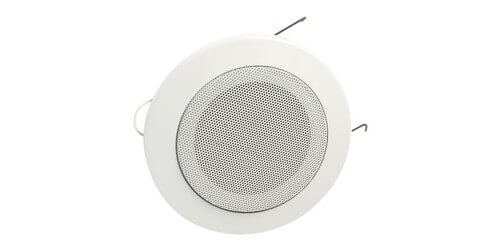

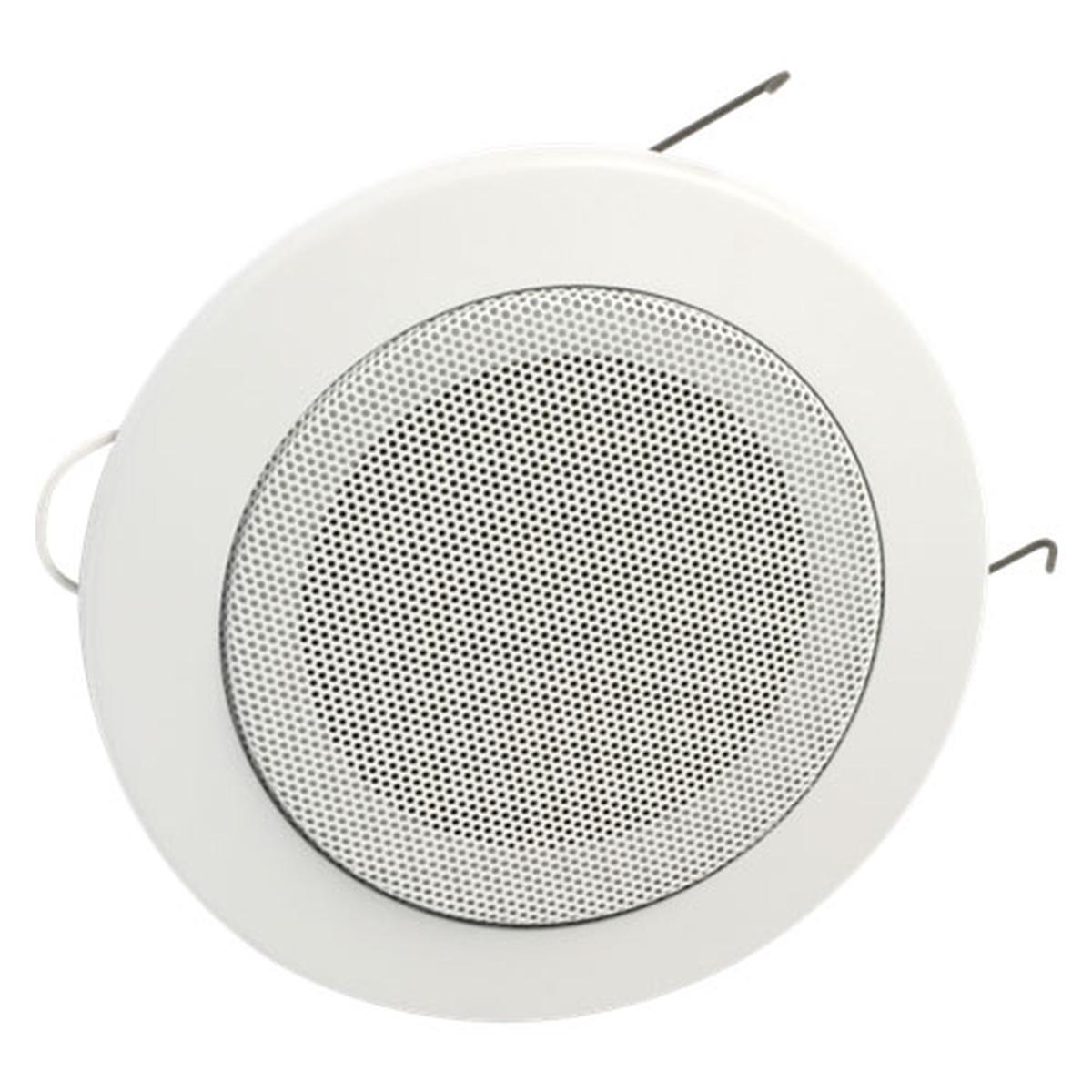

AtlasIED BT720-4-T47
4" Wide Angle Loudspeaker w/ Transformer & Round Baffle

Part #: BT720-4-T47
Satisfaction Guaranteed!
MSRP: $96.99
Our Price: $78.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top BT720-4-T47 Specifications
  • Depth 2 1/4"
  • Diameter 4"
  • Shipping Weight 3.50 lbs
  • Frequency Response 60Hz - 12kHz (+/- 1dB)
"Very nice folks to work with. Quick and good information"
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

BT720-4-T47 4" Loudspeaker Combo Packages FC104T47/T720-4 by Atlas Sound is an attractive B Series loudspeaker assemblies puts together the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. This model incorporate the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeakers in distributed systems.

The loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V or 70.7V trans-former and round or square grille with screw mount or torsion spring (T) installation where noted.

Each package includes pre-mounted EZ brackets which are slotted to accept EZ mount support rails (provided). Rails attach with wingnuts and adjust vertically to accommodate varying ceiling depth requirements (Note: No tile bridge is required). All B Series packages are shipped assembled and ready for installation.

Specifications

  • Power Taps 70.7V
  • Speaker Type High Compliance
  • Dispersion 130 / -6dB, 2kHz
  • Sensitivity 88dB (1W, 1M)
