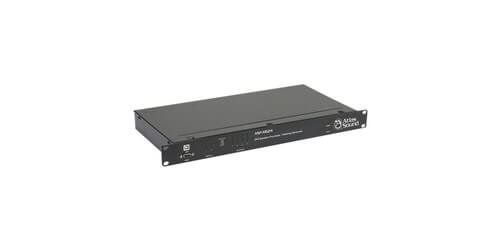

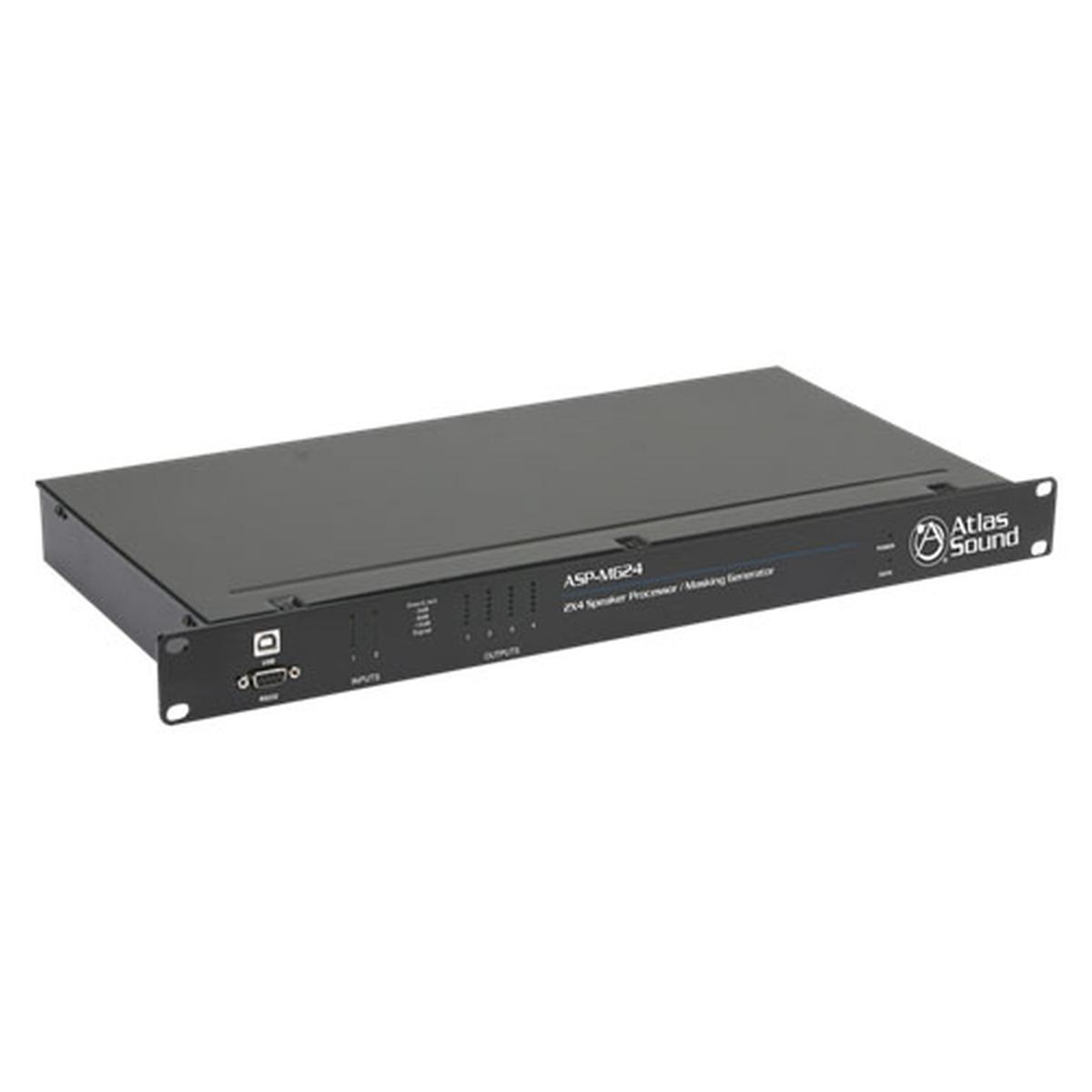

Masking Processor / Loudspeaker Controller with Scheduler Card

Part #: ASP-MG24TDB
Satisfaction Guaranteed!
MSRP: $2,541.99
Our Price: $2,034.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $50 Off!
Top ASP-MG24TDB Specifications
  • The ASP-MG24TDB provides accurate detailed control over masking levels for all 4 masking generators based on an easy to use scheduler
  • Height: 1 3/4"
  • Width : 19"
  • Depth : 8"
"Love the products we've ordered- they've been awesome!"
Contact a product specialist!
Proudly supporting our customers since 2008


The ASP-MG24TDB advances sound masking control to a whole new level while providing the secondary advantage of loudspeaker processing for the most popular Atlas Sound loudspeaker systems. The ASP-MG24TDB is 1RU, 6 input x 4 output DSP configurable through a extremely intuitive set-up GUI. Four inputs are tied to independent white/pink noise generators with adjustable ramp-up to permit progressive acclimation to masking levels. Two additional inputs are available for mic or line sources to allow for paging and/or music sources to be combined with the masking sources to any of the 4 outputs.

Dedicated 1/3 octave filter sets are available for each of the 4 generator outputs, 8 band parametric EQ blocks along with dynamic control is available for each of the two mic/line inputs. Any mix of all 6 inputs may be easily matrixed to the 4 output DSP blocks for additional parametric equalization, delay, and limiting (if required).

Factoring in all characteristics, a very complex 4 zone sound masking system can be easily configured with 2 external music or page sources. The MGTDB internal module allows timing and level control of all 4 Masking inputs for daytime holiday and weekend scheduling. For loudspeaker control functionality, the ASP-MG24TDB may be configured in 2 input x 4 output mode for stereo full range. Additional configurations consist of full range plus sub operation with Atlas Sound FAP ceiling speakers, SM series surface mount speakers, or AH series stadium horns for complete control of crossover types, equalization, delay, and dynamic control.


  • Weight: 13.20 lbs
