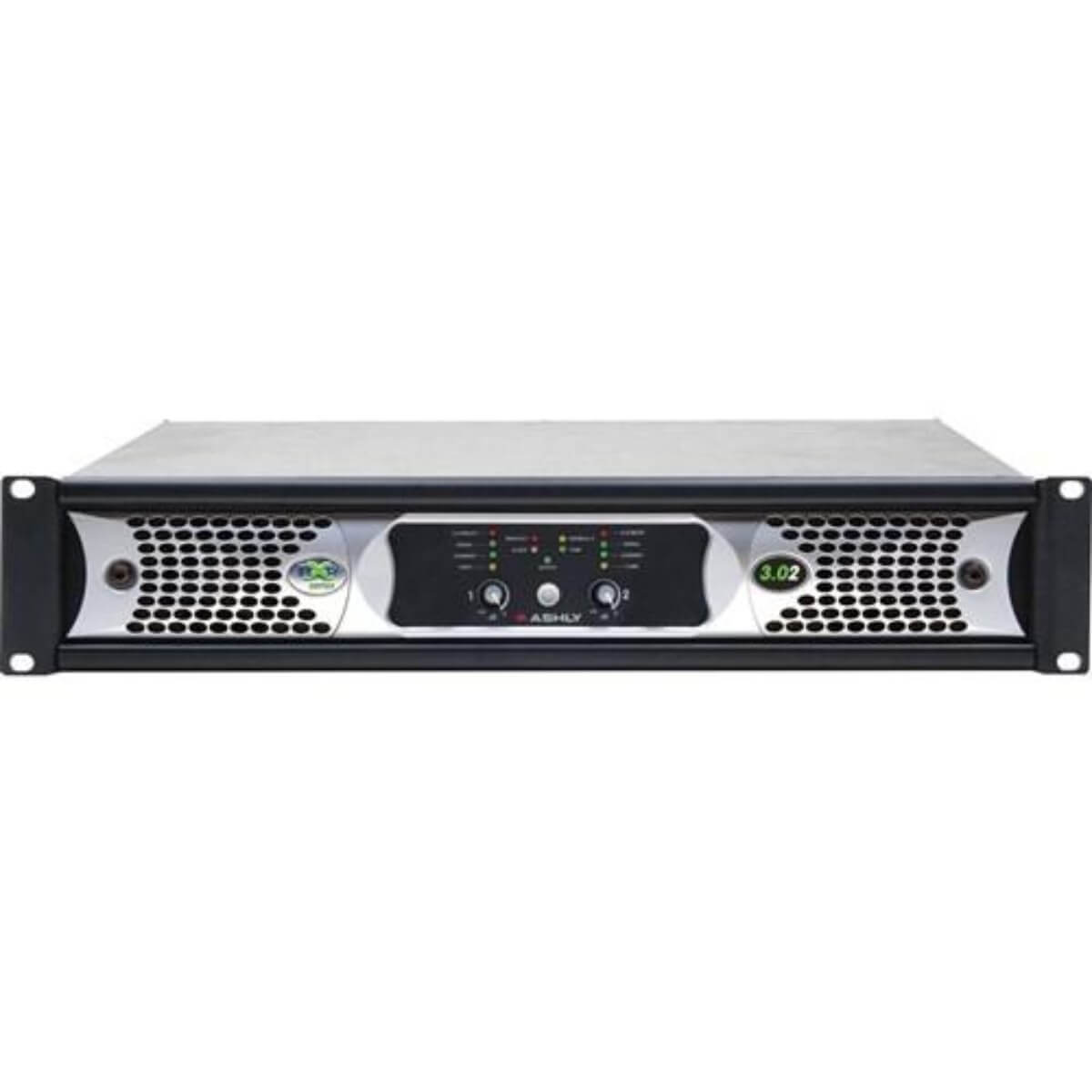

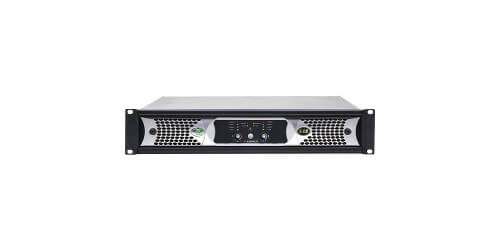

ASHLY NXP3.02
Network Multi-Mode Power Amp 2 x 3KW at 2 2KW at 4 1250W at 8 or 2450W
- Selectable 80Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
- Remote DC level control per channel
- Extensive protection circuitry, continuously variable cooling fans
- Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
-Chad R.
Description
The nXp3.02 2-Channel Network Power Amplifier from Ashly Audio is the networkable version of the nX amplifier. It comes with Ethernet control, serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability. All these are controlled using Ashly Audio's Protea software suite. This amplifier is designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers.
The Network Power Amplifier adds 32-bit SHARC DSP processing (with 48 kHz and 96 kHz sampling) as standard equipment for comprehensive audio processing, with built-in signal generator for test tone, and noise-masking. Plus, you get precision load impedance monitoring on each amplifier channel output.
Specifications
- Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
- Instant Standby Mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
- Preset recall via contact closure, software control, remote control, or event scheduler
- Programmable power-on delay
- Aux preamp line outputs for driving other amplifiers
- Fault condition logic outputs, per channel
- Comprehensive software controlled DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering.
- Additional iPad control of select DSP functions including gain, matrix, A/B source select, PEQ filter level, and meters
- Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
- Signal generator function for test and noise masking
- Remote gain and zone control with neWR-5 and FR-8/
- FR-16 programmable networked remotes
- Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
- Neutrik speakON twist locking loudspeaker connec- tors
- Neutrik powerCON detachable AC mains connector
