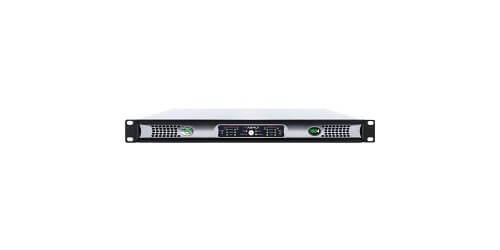

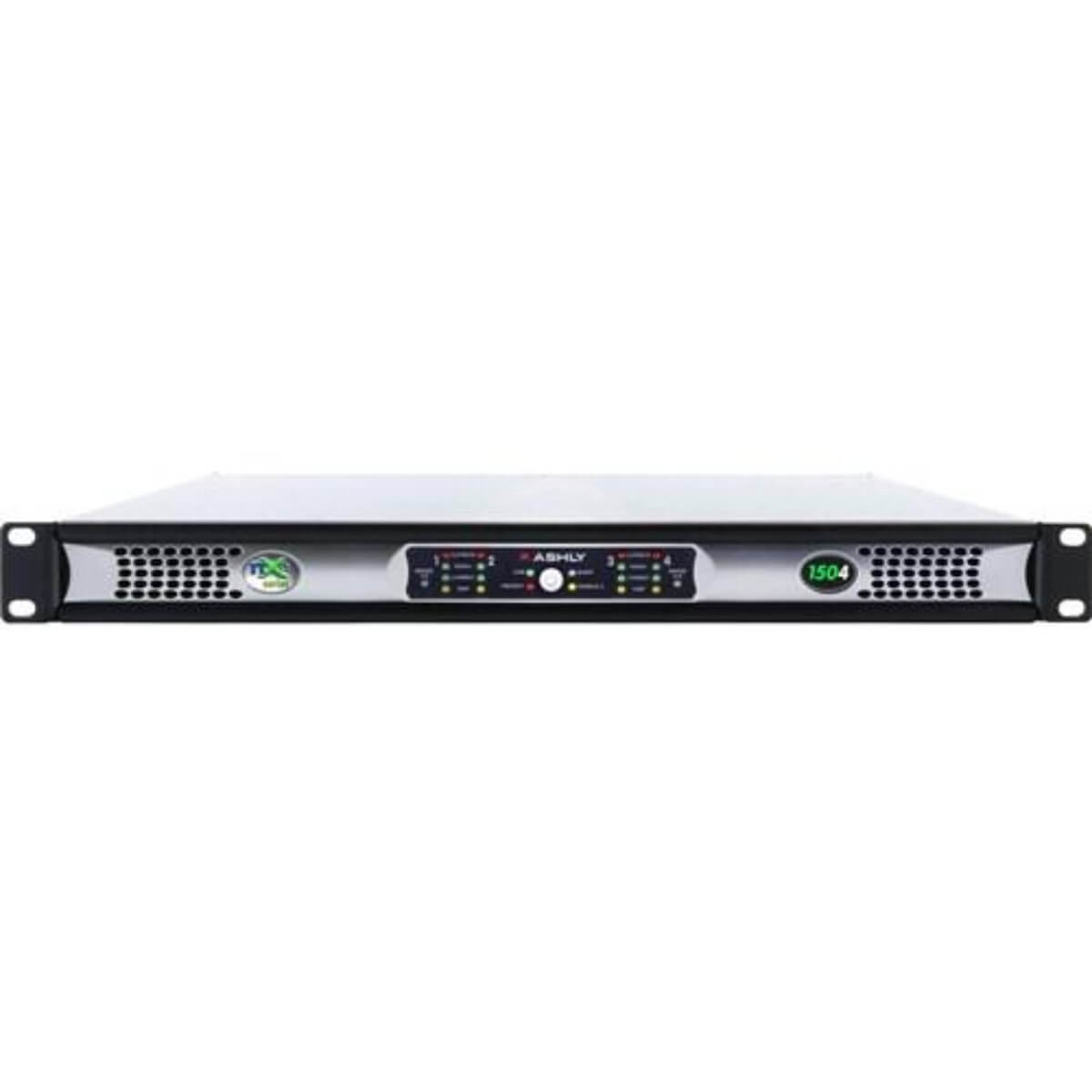

ASHLY NXE1504BD
4 Channel Networkable Multi-Mode Power Amplifier
- Impedance: 8 Ohm
- Audio Channels: 4
- RMS Output Power: 600 W
- Height: 1.7"
-Gregory W.
Description
The Ashly nXe Series 4-Channel Networkable Multi-Mode Power Amplifier comes pre-installed with OPDAC4 internal 4-Channel DAC with selectable HPF and OPDante Dante Network Audio Interface cards. The OPDante card enables access to digital audio networks at low latencies (83.3 microsecond) over fast Ethernet. It can be installed in the rear card slot of nXe series amplifiers. Signal can be routed from other Dante enabled devices by simply connecting a CAT5e or CAT6 cable to the card's primary or secondary (redundant) Ethernet ports.
The amplifier is capable of driving 2, 4, and 8 Ohms loads at full power and offers a maximum rated output power of 150W per channel at 25V, 70V, and 100V modes. The amplifier comes with additional energy saving features such as Real-Time Clock (RTC), Event Scheduler, and GPIO control. The OPDAC4 card includes a software selectable high-pass filter that can be set for 80 Hz @ 12 dB/Oct, 400 Hz @ 6 dB/Oct, and Off.
The multi-mode output capability allows each individual amplifier output channel to be set for Low-Impedance, or Constant Voltage operation using DIP switches. The amplifier features a lightweight 1U design with universal AC input SMPS for improved energy efficiency. Thanks to the Euroblock, and IEC connectivity, the power amplifier safely fulfills the requirements for installed sound applications.
Specifications
- Width: 19"
- Depth: 14.5"
- Weight (Approximate): 12 lb
- 4 Channels
- 150 W @ 2, 4, and 8 Ohms
