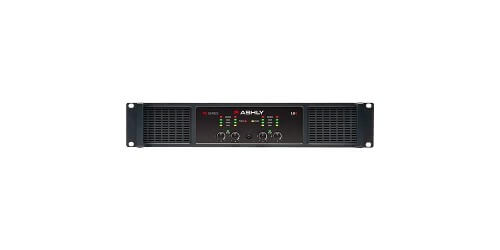

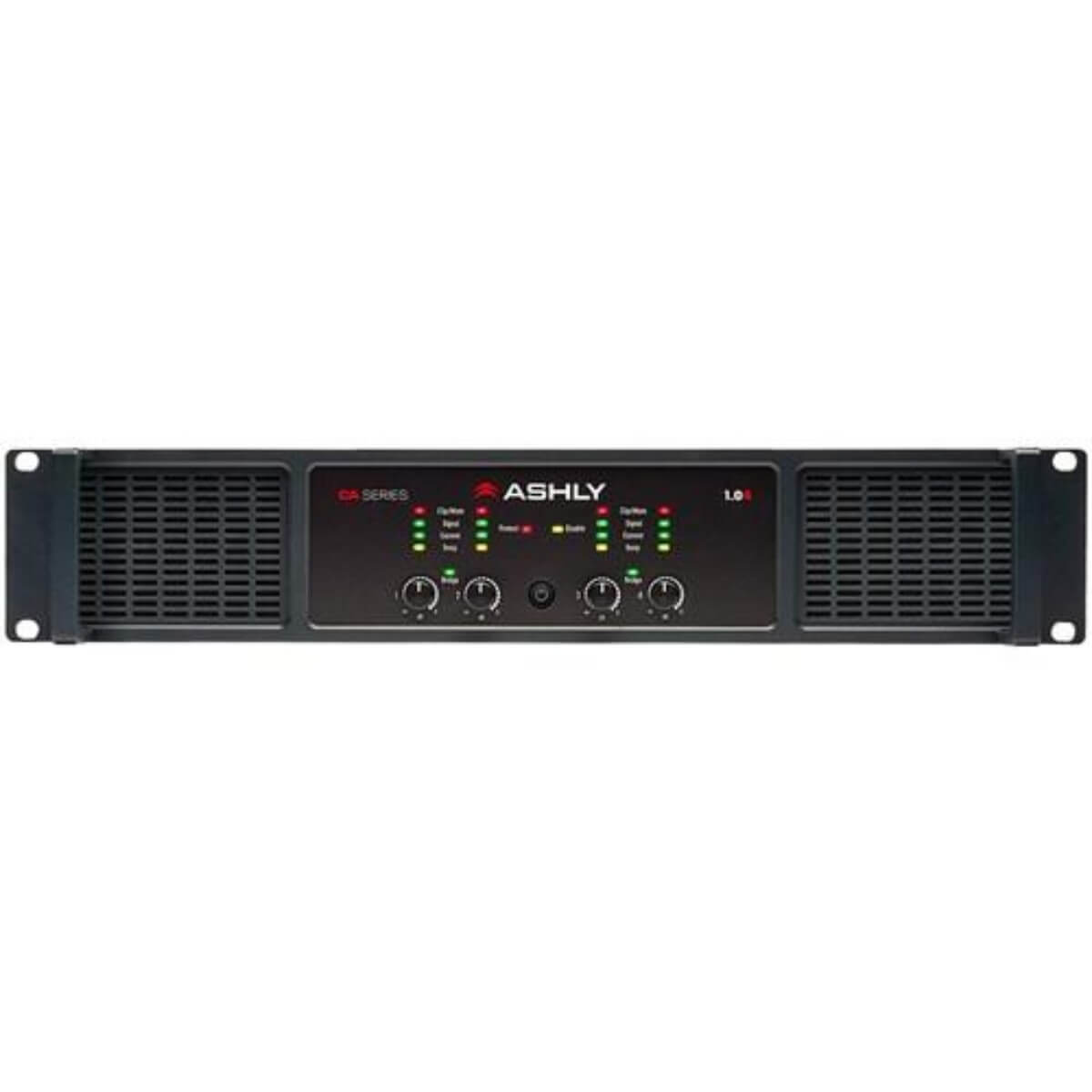

ASHLY CA1.04
High Efficiency Power Amplifier 4 x 1000W at 2/4 Ohms or 70V, 500W at 8 Ohms
- 4 x 1,000W @ 2/4 Ohms
- Advanced D-Max Class D Technology for Ultra-high efficiency
- Front panel input level Controls with lock out switch
- Switchable 80Hz HPF, Limiter and Amp Gain per channel
Description
Ashly?s proprietary D-MAX technology takes Class D performance and efficiency to a whole new level. By starting with a clean slate, our engineers were able to apply cutting-edge design practices and state-of-the-art components to the most efficient amp we?ve tested thus far. The pay-off is less heat, lower distortion, more stable operation and greater reliability. Bulky heat sinks are no longer required. Instead, we optimized active air cooling using our newly developed SailFlow design, which moves the air along a selective path, to where it?s needed most. Coupled with our ultra-high-speed switching power-supply and intelligent power management, all the transient impact and spatial detail of your sound is preserved and your speakers will never be happier. Light-weight and power-efficient, CA will never pull more power than your wall outlet delivers. No more worry about driving speakers to the brink of destruction or tripping breakers.
Specifications
- Balanced Euroblock and XLR Combo Inputs and Output
- Stable 2 Ohm operation
- Capable of driving 70V and 100V loads
- Cool operation with Sail-Flow active air management
- Remote VC ports for Volume Control per channel
- Remote Standby port with switchable polarity
- Solid metal front panel
