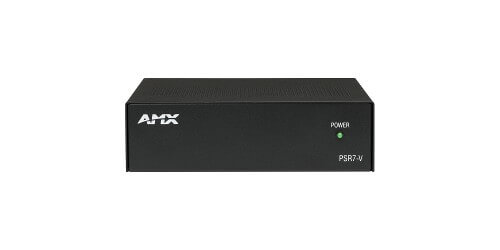

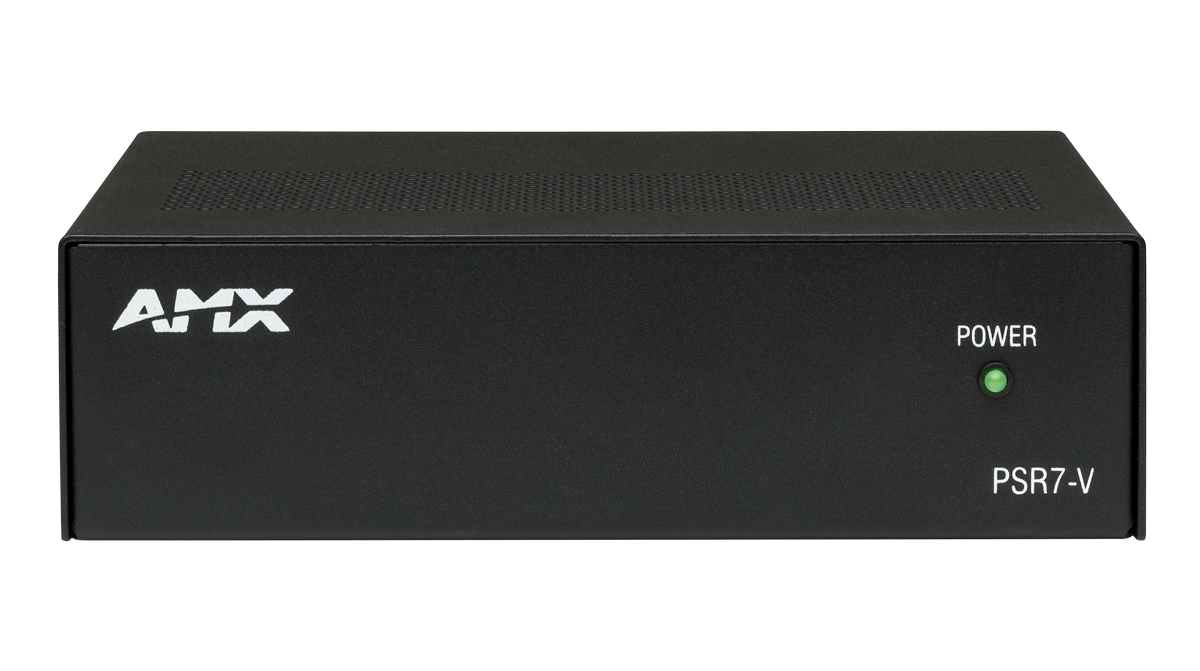

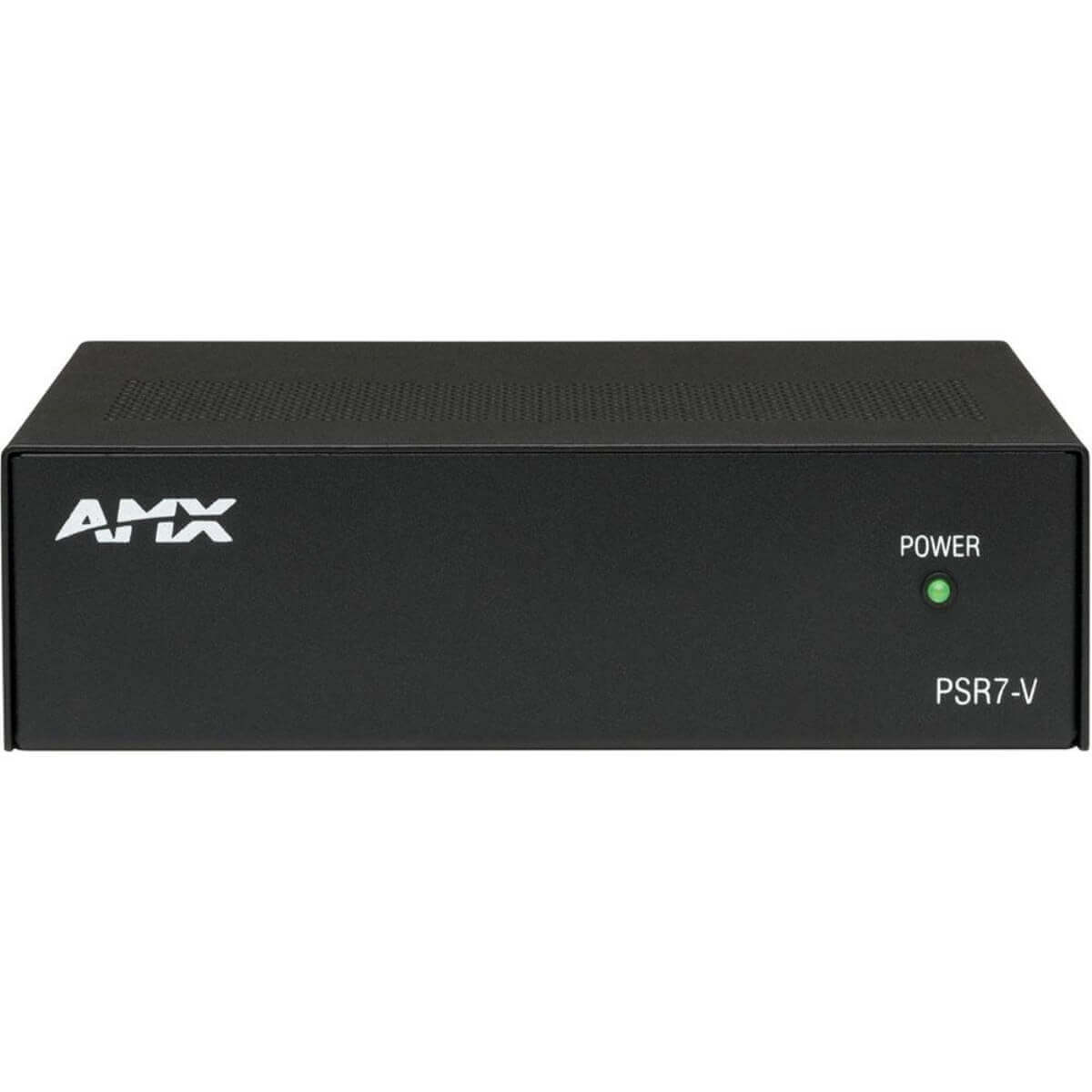

AMX PSR7-V
Versatile Mount 5.5 Amp Power Supply

Manufacturer SKU: FG423-49
Satisfaction Guaranteed!
Our Price: $594.40
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $15 Off!
Top PSR7-V Specifications
  • Input Voltage: ~100-240 V, 1.9A MAX, 47/63 Hz
  • Output Voltage 12 VDC +/-.6V
  • Output Current 5.5 A
  • Dimensions: 1 5/8" x 5 3/4" x 5 1/8" (4.13 cm x 14.6 cm x 13.02 cm) (HWD)
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The AMX PSR7-V power supply provides 5.5 amps of 12VDC power and is an optional power supply for Modero® X Series line of touch panels and NetLinx NX Integrated Central Controllers. It includes three 3.5 mm phoenix connectors with retention screws.

Accessories include a V-style module rack tray and surface mount brackets which allow the PSR7-V power supply to be securely mounted to flat surfaces such as under a table or on a wall. Up to three power supplies can be mounted side-by-side using a 1 RU space.

Applications of Use:
Ideal for professional AV installations, the PSR7-V power supply helps to protect valuable components against over-voltage, over-current, short-circuit, transient and thermal damage.

Features:

  • Protection – Against over-voltage, over-current, short-circuit, transient and thermal; switching regulated and overload protected.
  • Power Indicator – Green LED indicates DC on the output in fault tolerant range.

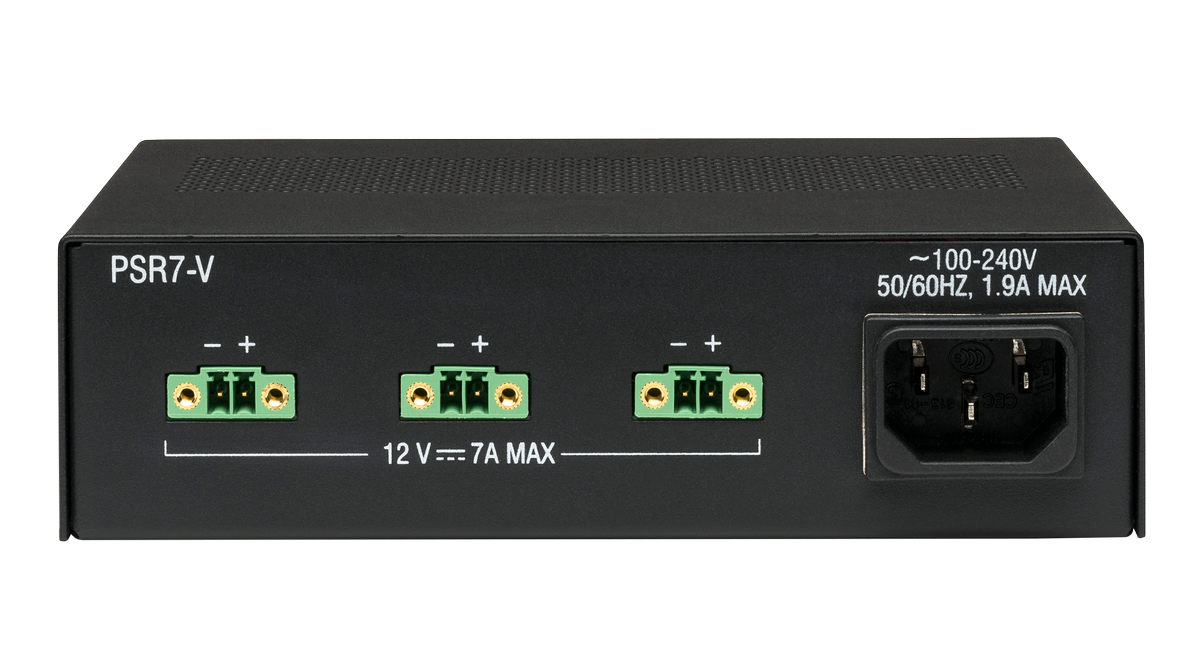

  • Connectors – Includes 3 x Mini 2-pin captive wire connector (3.5 mm).
  • Input Power Cord – IEC power cord provided as a separate part, dependent on country requirements.

Specifications

  • Warranty: 1 Year
