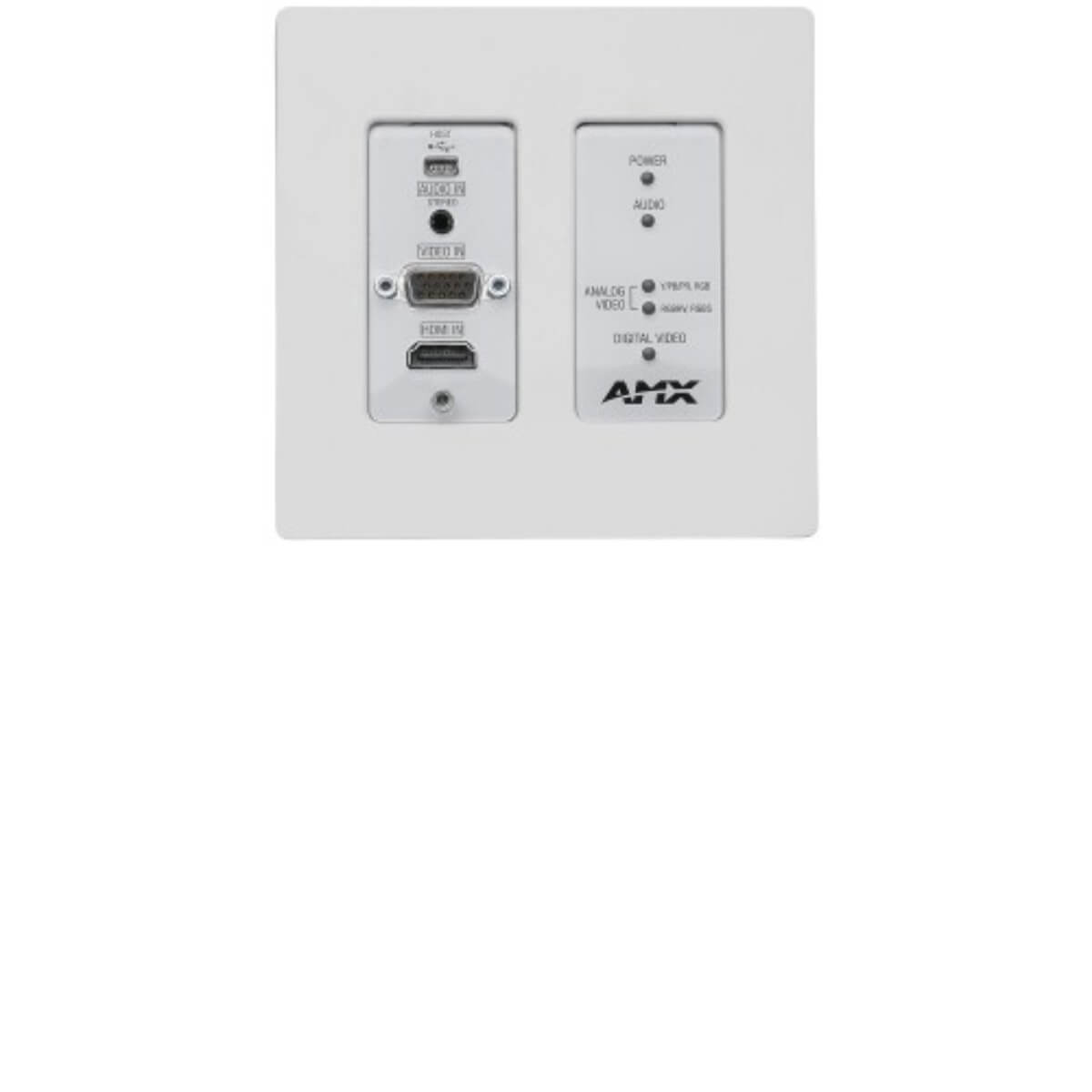

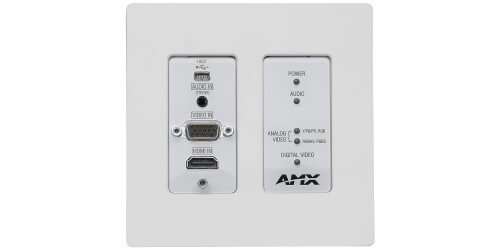

N2300 Srs 4K UHD Video Over IP Decor Style Wallplate Encoder w/KVM PoE

Manufacturer SKU: FGN2315-WP-WH
Satisfaction Guaranteed!
Our Price: $1,247.10
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $50 Off!
Top NMX-ENC-N2315-WP-WH Specifications
  • Wallplate Form Factor - Fits conveniently into a 2-gang US back box for easy installation in a wall, floor, or lectern. It uses standard decor-style faceplates (not included). It is available in black or white and has an industrial design that blends w...
  • Advanced Security including SSL/TLS and HTTPS - Satisfies enterprise network security requirements.
  • Low Latency - With 1 frame of latency for encode plus decode (34 ms for 4K30 and 17 ms for 1080p60), the N2300-Series offers video distribution with nearly imperceptible latency.
  • HDMI 2.0 and HDCP 2.2 Support - By incorporating HDMI 2.0 and HDCP 2.2, the N2300-Series products are compatible with all the latest 4K sources and displays.
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008


The N2300 Series provides excellent encoding capabilities in a 2-gang wallplate format. This encoder fits conveniently into a 2-gang US back box for easy installation in a wall, floor or lectern. Connect to power and Ethernet using a single category cable. Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. This wallplate encoder includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVM-over-IP extension. The N2300 Series provides a flexible, feature-rich, and simple-to-deploy Networked AV solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. Utilizing JPEG2000 encoding, the N2315-WP delivers video with latency so low it supports extremely sensitive applications like live action.


  • PoE Powered - Only requires a single category cable for power and audio/video transport, which greatly simplifies the installation requirements.
  • Native NetLinx - Simplifies integration with AMX control to reduce cost of installation.
  • Design Flexibility - Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders.
  • VGA: Yes
  • Number of HDMI Ports: 1
  • Number of VGA Ports: 1
  • Number of Network (RJ-45) Ports: 1
  • Number of USB Ports: 2
  • Color: White
  • Form Factor: Wall Plate
  • Transmitter Height: 4.06"
  • Transmitter Width: 3.50"
  • Transmitter Depth: 2.25"
  • Transmitter Weight (Approximate): 12 oz
