AMX MCP-106

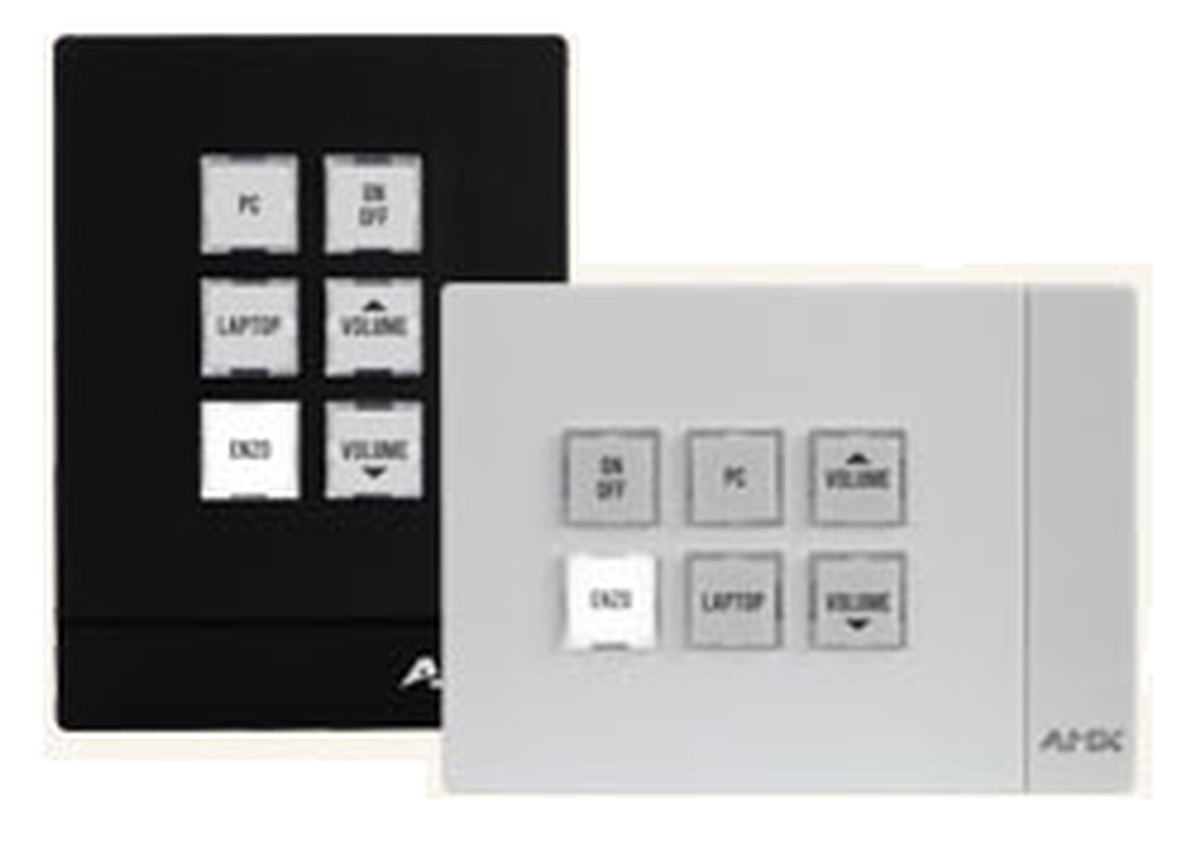

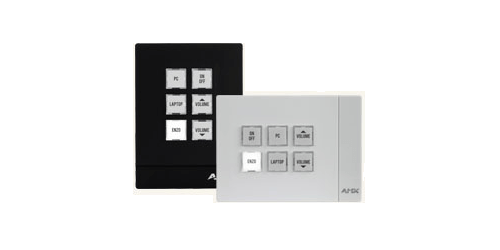

Massio 6-Button Control Pad

Manufacturer SKU: FG2102-06P-W
Satisfaction Guaranteed!
Our Price: $839.16
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $15 Off!
Top MCP-106 Specifications
  • DIMENSIONS (HWD): Portrait: 4 11/16" x 3 7/16" x 9/16" (119 mm x 87.5 mm x 13.9 mm) / Landscape: 3 7/16" x 4 11/16" x 9/16" (87.5 mm x 119 mm x 13.9 mm)
  • WEIGHT: Approximately .25 lbs (.11 kg)
  • MOUNTING: Mount onto standard 1 gang US, UK, or EU back boxes
  • POWER CONSUMPTION: Typical: 4.5 Watts
"Very nice folks to work with. Quick and good information"
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

AMX's MCP-106 / 6-Button Massio Control Pad is a high-performance control pad that combines AMX control and a stylish keypad into a single unit that can be mounted in a standard 1 gang US, UK, or EU back box to provide dedicated room control. Massio ControlPads feature intuitive usability and modern styling. They are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software. The MCP-106 shares its controller technology with AMX's flagship NX-series, enabling it to provide the latest networking and security features, along with outstanding processing power.

Other key features of the Massio Control Pad include:

  • Cryptographic Support
  • IPv6
  • IEEE 802.1X
  • X.509 Certificate Services
  • TLS/SSH Client
  • Network Syslog
  • Unrivaled Network Security
  • All-in-One Keypad/Controller
  • AMX Control
  • One Tool to Program
  • Simple Integration with RMS
  • Web-based Control
  • Inactivity Timer
  • Built-In Control Ports
  • Native, direct connection to RMS



Specifications

  • Voltage DC (Typical): PoE (37V-57V)
  • Voltage DC Range: 37 V-57 V per 802.3af spec
  • Power Connector: (1) RJ-45 Ethernet
  • POWER SUPPLY: External, Required: Any POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included ENVIRONMENTAL
  • Temperature (Operating): 32 F to 104 F (0 C to 40 C)
  • Temperature (Storage): 14 F to 140 F (-10 C to 60 C)
  • Humidity (Operating): 5% to 85% RH
  • ETHERNET
  • Ethernet Connection: (1) 10/100
  • Port provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information. CONTROL PORTS & INDICATORS
  • RS-232 Port: (1), 3-position 3.5mm Screw Terminal
  • 300 - 115,200 baud
  • IR Serial Port: (1), 2-position 3.5mm Screw Terminal
  • IR Transmit / 1-way Serial ports support high-frequency carriers up to 1.142 MHz
  • Program Port: (1) USB Mini-B, USB
  • ID Pushbutton: Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
  • MEMORY
  • Flash: 4 GB
  • Memory Card: 4 GB SD
  • DDRAM: 256 MB
  • REGULATORY COMPLIANCE
  • FCC CFR Title 47 Part 15
  • CE EN 55022
  • CE EN 55024
  • CE EN 60950-1
  • IEC 60950-1
  • UL 60950-1
  • C-Tick CISPR 22
  • IC CISPR 22
  • VCCI CISPR 22
  • RoHS
  • WEEE
  • GENERAL
  • Front Panel Components: 6 Buttons
  • Included Accessories:
  • (1) metal mounting bracket
  • (1) 2-pin female connector
  • (1) 3-pin female connector
  • (1) sheet of 70 pre-printed button labels
  • (2) M3.5 x 30MM screws
  • (2) #6-32 x 1.25 screws
