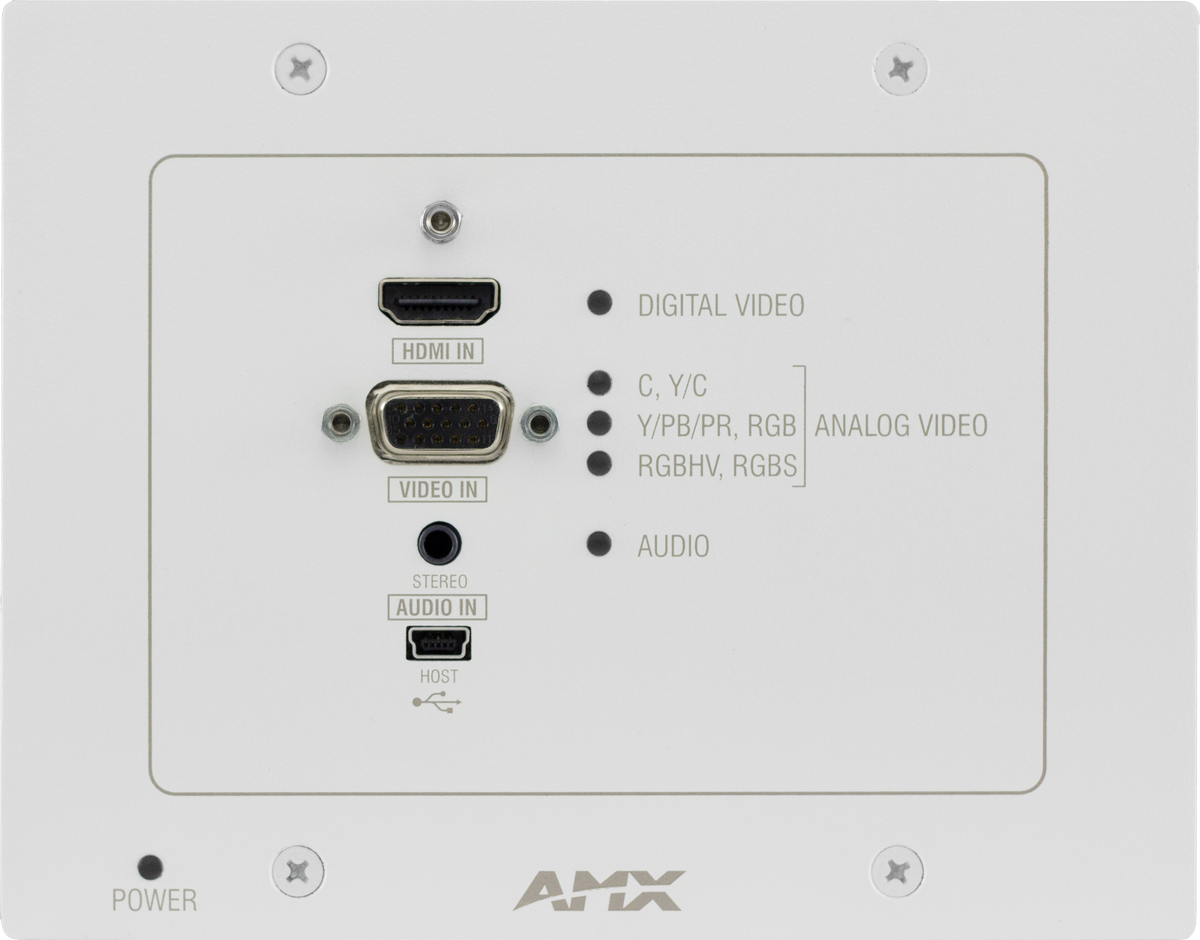

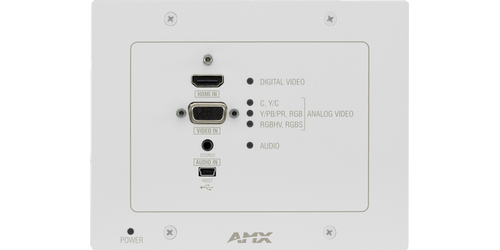

HDMI and VGA Auto Switching Wall Plate with DXLink Out

Manufacturer SKU: FG1010-320-WH
This product has been discontinued

Top DX-TX-WP-WH Specifications
  • 2 gang wall plate
  • Color: White
  • Inputs: 1 HDMI, 1 VGA, 1 3.5mm stereo
  • Outputs: 1 DXLink
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008


The AMX DX-TX-WP-WH is a VGA, audio, and HDMI white wall plate with integrated transmitter that will send your video, IR, USB, Ethernet, and RS-232 up to 328' over Cat5e/6 cable.  The transmitter also acts an auto switcher, it detects the last plugged in input and automatically sends that to a compatible receiver or DXLink input. Not only does it send scaled video if using the VGA input but it also sends embedded audio.  The unit requires external power sold separately or needs to receive power over the twisted pair cable from a compatible DXLink device.


  • Distance: Up to 328'
  • HDCP compliant
  • LED status indicators
  • 3D pass through
  • Dimensions: 2 gang
  • Weight: 1.1lbs
  • Warranty: 3 years
  • *Wall plate cover is included
