 Home > Auto Switchers -> Auto Switching Wall Plates -> AMX -> DX-TX-WP-BL HDMI and VGA Auto Switching Wall Plate with DXLink Out

HDMI and VGA Auto Switching Wall Plate with DXLink Out

Manufacturer SKU: FG1010-320-BL
This product has been discontinued

Top DX-TX-WP-BL Specifications
  • 2 gang wall plate
  • Color: Black
  • Inputs: 1 HDMI, 1 VGA, 1 3.5mm stereo
  • Outputs: 1 DXLink
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

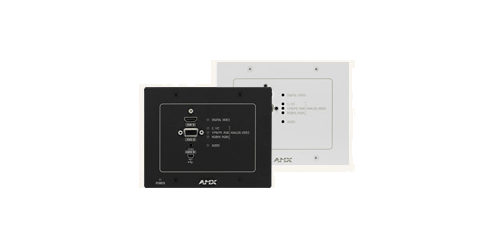

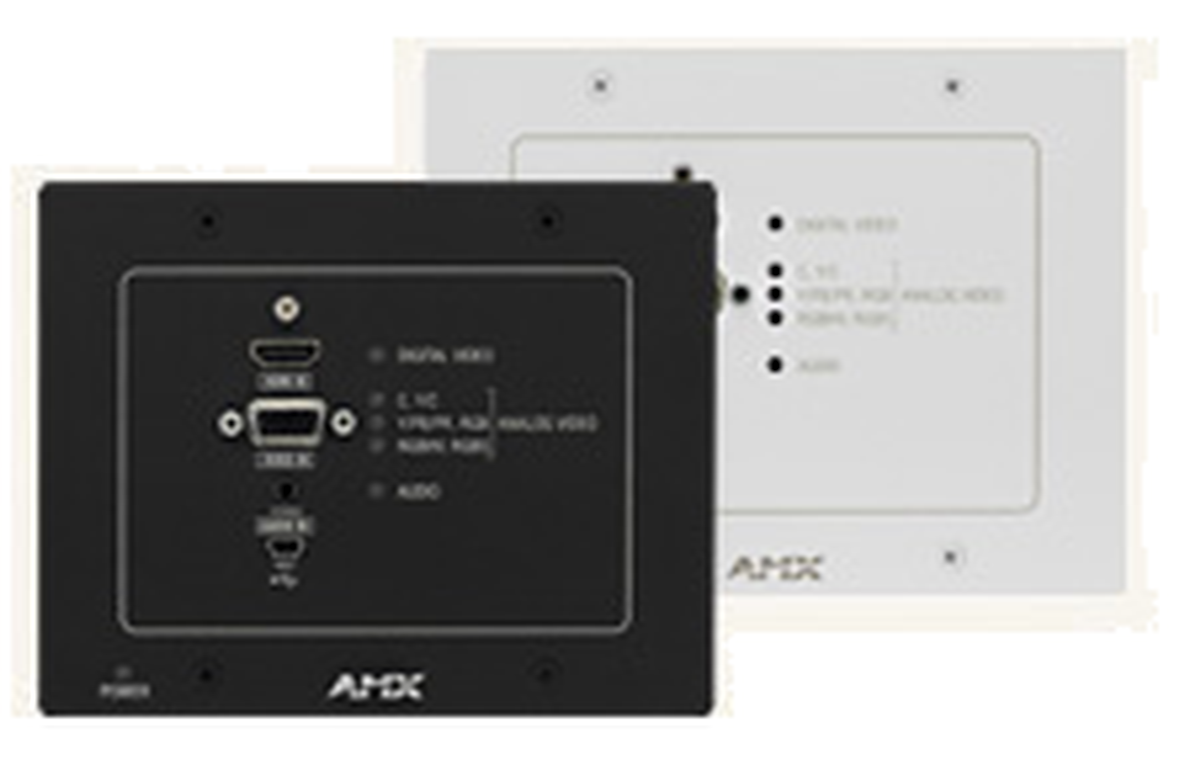

AMX's DX-TX-WP-BL is a VGA, audio, and HDMI wall plate featuring an integrated transmitter that will send your video, IR, USB, Ethernet, and RS-232 up to 328' over Cat5e/6 cable. The transmitter also acts an auto switcher, it detects the last plugged-in input and automatically sends that to a compatible receiver or DXLink input. It sends scaled video if using the VGA input as well as embedded audio. The unit requires external power sold separately or needs to receive power over the twisted pair cable from a compatible DXLink device.


  • Distance: Up to 328'
  • HDCP compliant
  • LED status indicators
  • 3D pass through
  • Dimensions: 2 gang
  • Weight: 1.1lbs
  • Warranty: 3 years
  • *Wall plate cover is included
