 Home > Matrix Switchers -> Matrix Switcher Accessories -> In and Out Cards -> AMX -> DGX800/1600-ASB Audio Switching Board Kit For Enova DGX 800/1600

AMX DGX800/1600-ASB
Audio Switching Board Kit For Enova DGX 800/1600

Manufacturer SKU: FG1061-716
Satisfaction Guaranteed!
Our Price: $4,580.42
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $15 Off!
Top DGX800/1600-ASB Specifications
  • Audio Switching: 16x16 (DGX 800) or 24x24 (DGX 1600) Matrix Audio Switching
  • Audio Inputs: 8 or 16 Embedded Digital Audio Inputs from Video Input Positions
  • Audio Outputs: 8 or 16 Embedded Digital Audio to Video Outputs
  • Audio Input Compression: Independent compression per input
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

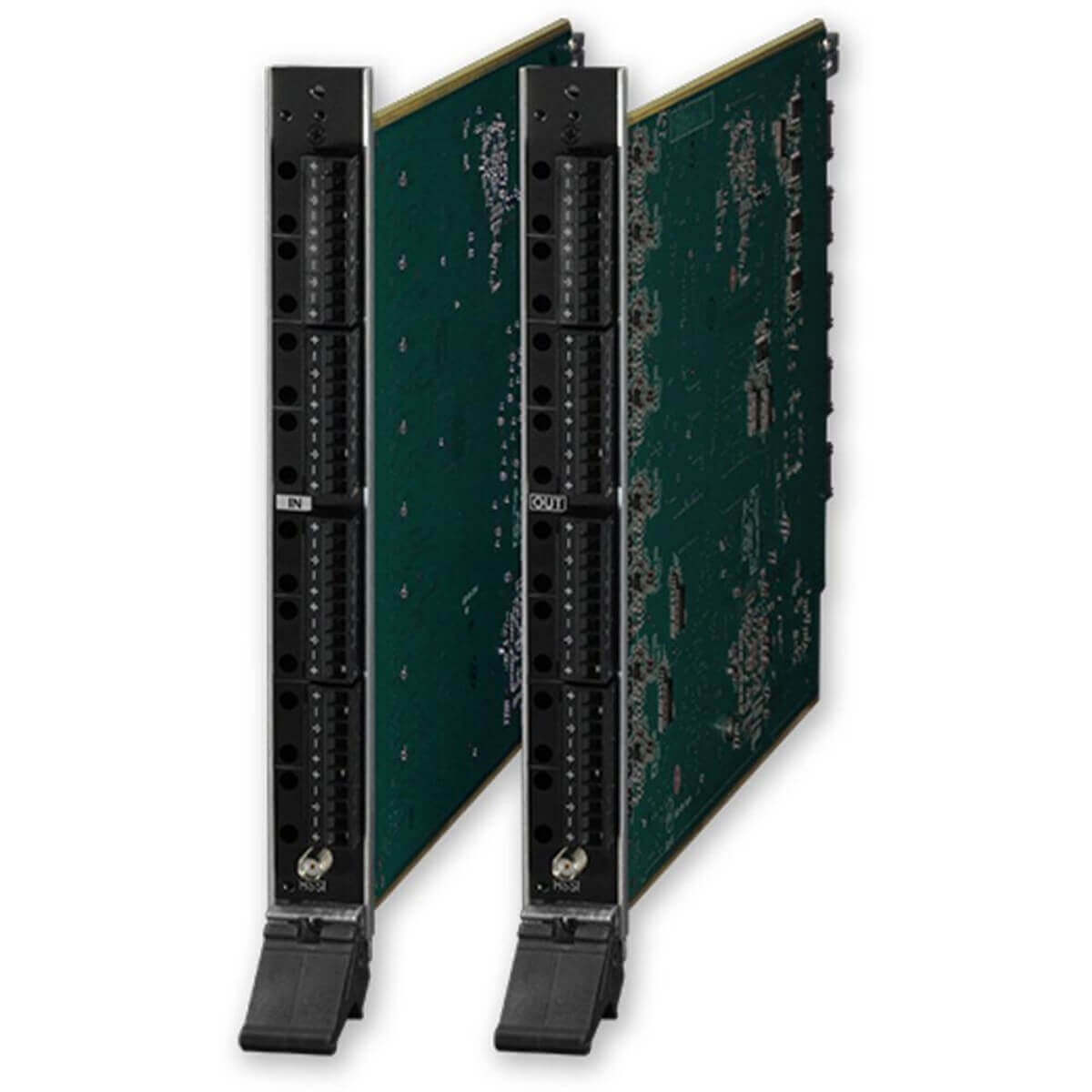

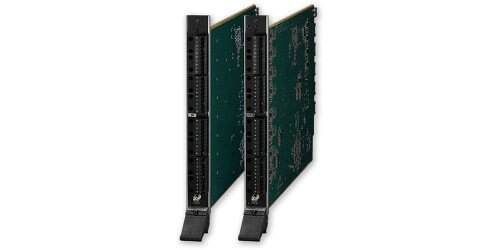

AMX's DGX800/1600-AS is a pair of audio switching boards that include an input and output board for the Enova DGX 800 and 1600. These boards enable audio switching capabilities, including audio breakaway and downmixing. DSP functionality includes a 10 Band Parametric EQ on every output. This allows audio tuning for each specific environment based on its acoustics.

The Enova DGX Web Configuration interface makes it  easy to set up these audio features with the Enova DGX. It includes a test tone generator for audio connection testing without the need for a separate audio source. These audio switching boards are only sold in pairs and must be used together.

Specifications

  • Audio Input Gain Compensation: -24 dB to +24 dB, 1 dB steps
  • Audio Output Compression: 10-band parametric EQ with variable center frequency
  • EQ gain: -12 to +12 dB
  • Q: 0.1 to 20
  • filter types: bell, bass shelving
  • treble shelving, low pass, high pass, band pass, band stop
  • Audio Output Sync Delay: 0 to 200 ms
  • Balance Control: 20 steps each left and right
  • Audio Control per Output: Independent EQ, volume and balance control per output
