 Home > Matrix Switchers -> Matrix Switcher Accessories -> Inputs Cards -> AMX -> DGX-I-DXL-4K Enova DGX DXLink Twisted Pair 4K Input Board

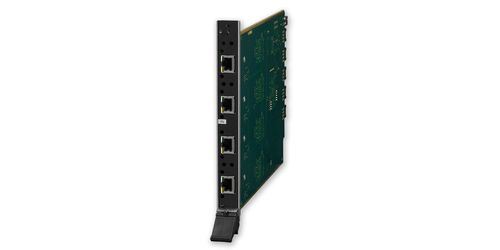

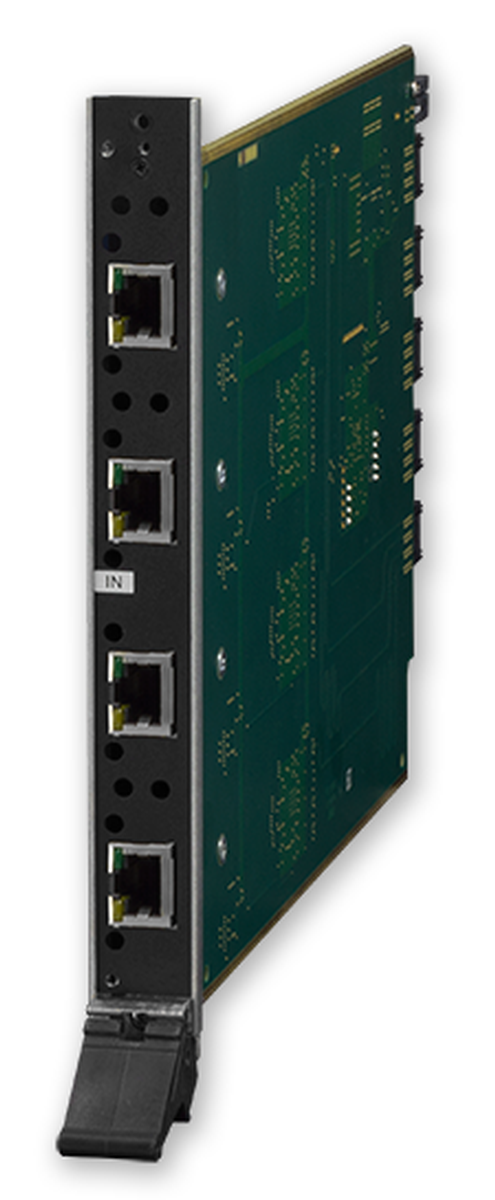

AMX DGX-I-DXL-4K
Enova DGX DXLink Twisted Pair 4K Input Board

Manufacturer SKU: FG1061-570
Satisfaction Guaranteed!
Our Price: $2,389.28
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $15 Off!
Top DGX-I-DXL-4K Specifications
  • Connectors: (4) RJ-45 Ports
  • Compatible Formats: HDMI Video, Audio, Ethernet, USB (HID), Power, Serial Control, and IR Control
  • Signal Type Support: DXLink Twisted Pair
  • Maximum Resolution Support: 3840 x 2160p @ 24/25/30 Hz 4096 x 2160p @ 24/25/30 Hz 3840 x 2160p @ 60 Hz, 4:2:0 4096 x 2160p @ 60 Hz, 4:2:0
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The DGX-I-DXL-4K is a 4K, UHD-capable, and HDCP-compliant twisted pair cable input board for the Enova DGX 800, 1600, 3200, and 6400 digital media enclosures. Featuring four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one shielded Cat6A or Cat7 cable up to 229 feet.

DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters. This twisted pair input board is ideal for long-distance reach from the DGX Digital Media Switcher distributed throughout a commercial or residential environment.




Specifications

  • Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
  • Compatible DXLink TX/RX: 4K HDMI Decor Style Wallplate, 4K Solecis Digital Switchers (including 4x1, 5x1 and 8x1). Also compatible with (non 4K) DXLink Twisted Pair Transmitters. If not passing 4K, see datasheet for details.
