 Home > Table Boxes -> Pop Ups -> Customizable -> Altinex -> TNP528C *Customizable* 9 Connections w/ 2 Power Tilt Up Table Box

Altinex TNP528C
*Customizable* 9 Connections w/ 2 Power Tilt Up Table Box

Part #: TNP528C
Click to select a snap-in
Click to select a snap-in
Click to select a snap-in
Click to select a snap-in
Click to select a snap-in
Click to select a snap-in
Click to select D-Sub
Click to select Audio
Click to select D-Sub
Satisfaction Guaranteed!
MSRP: $835.00
Our Price: $626.25
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $7 Off!
Color Choice:
Product Highlights

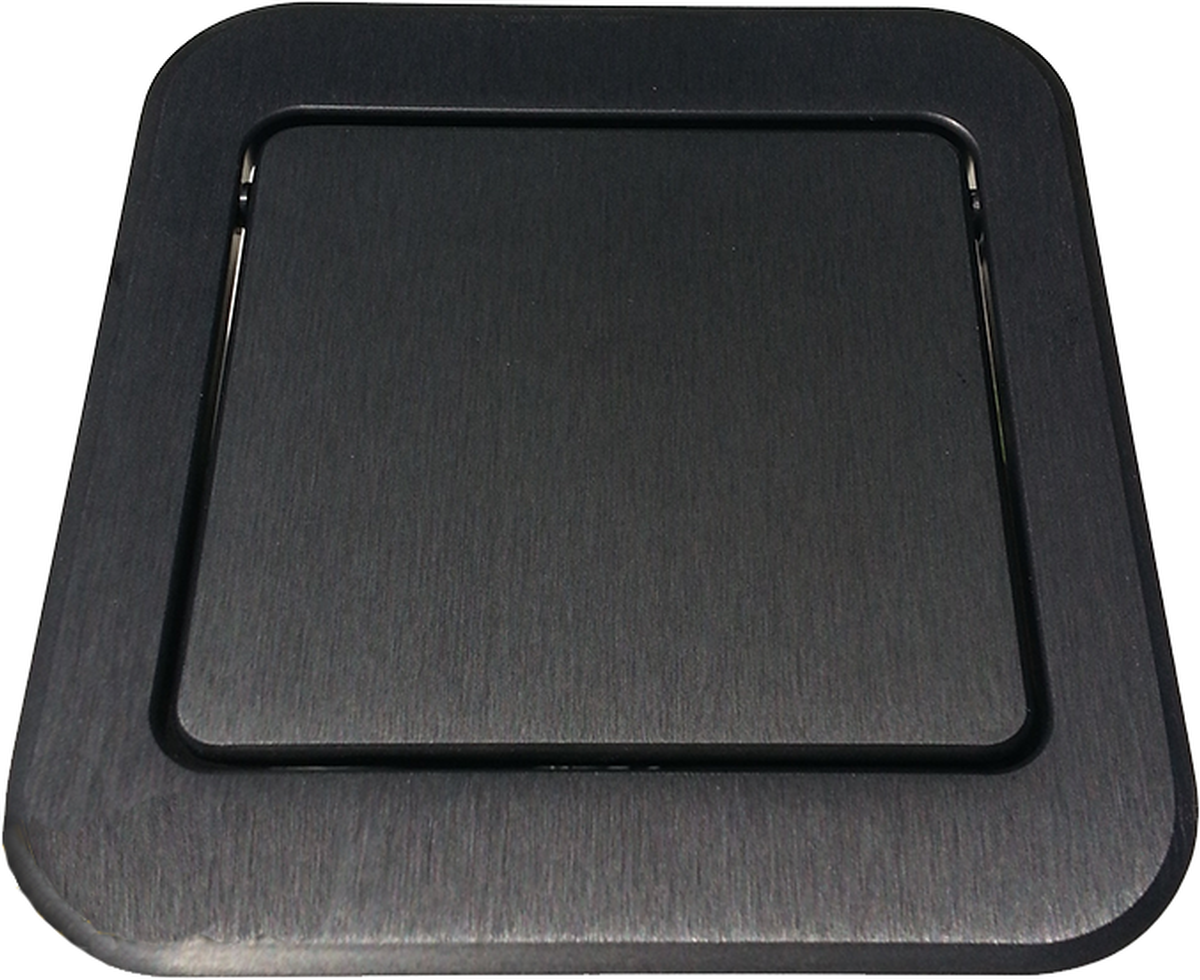

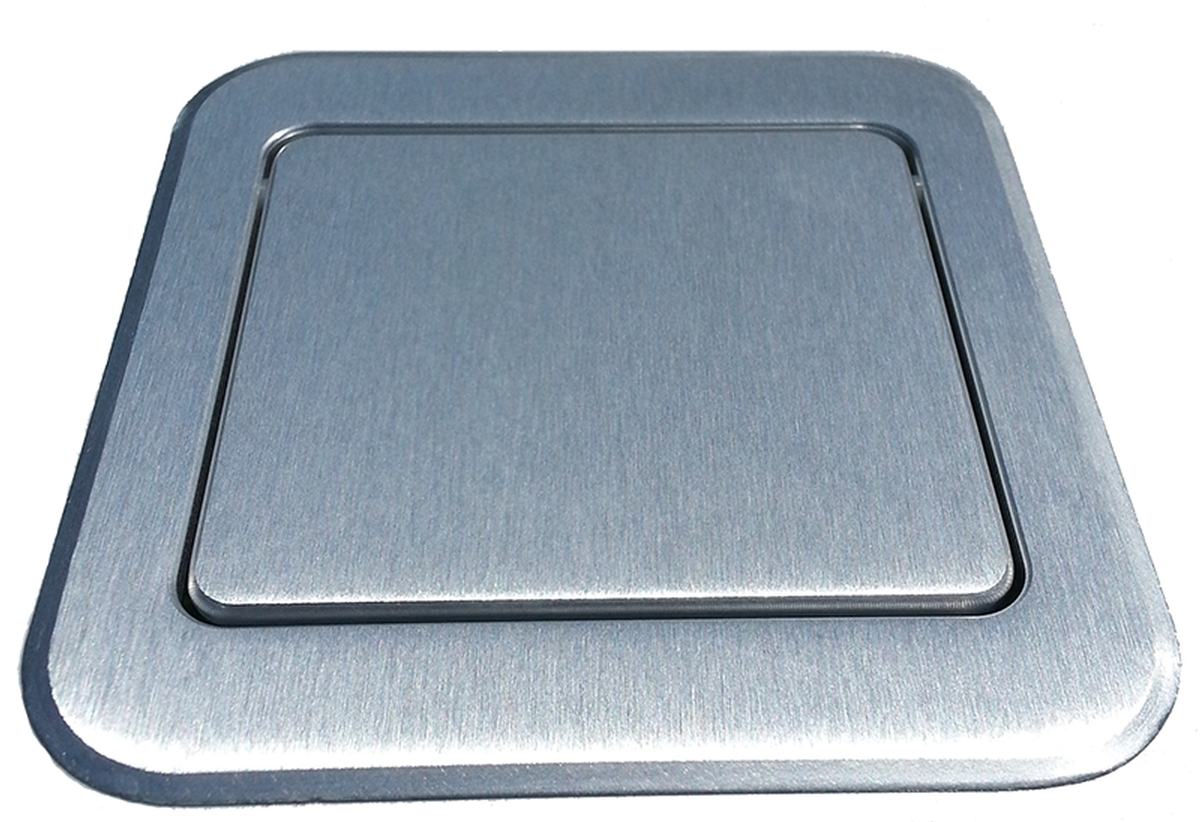

  • Color: Black anodized aluminum or silver anodized aluminum
  • Customizable: Choose your connections
  • A/V cables are 6' in length with male ends while the power cable is 9' long
  • Pop-up dampening via leaf spring for smooth operation
"...Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008
  • Color: Black anodized aluminum or silver anodized aluminum
  • Customizable: Choose your connections
  • A/V cables are 6' in length with male ends while the power cable is 9' long
  • Pop-up dampening via leaf spring for smooth operation
  • UL/C-UL Listed
  • Includes: Mounting hardware
  • Bezel dimensions: 7.86" x 6.53"
  • Cutout size: 7.46" x 6.13"
  • Depth under table: 6.53"
  • Table thickness: .75" to 2.5"
  • Warranty: 10 years

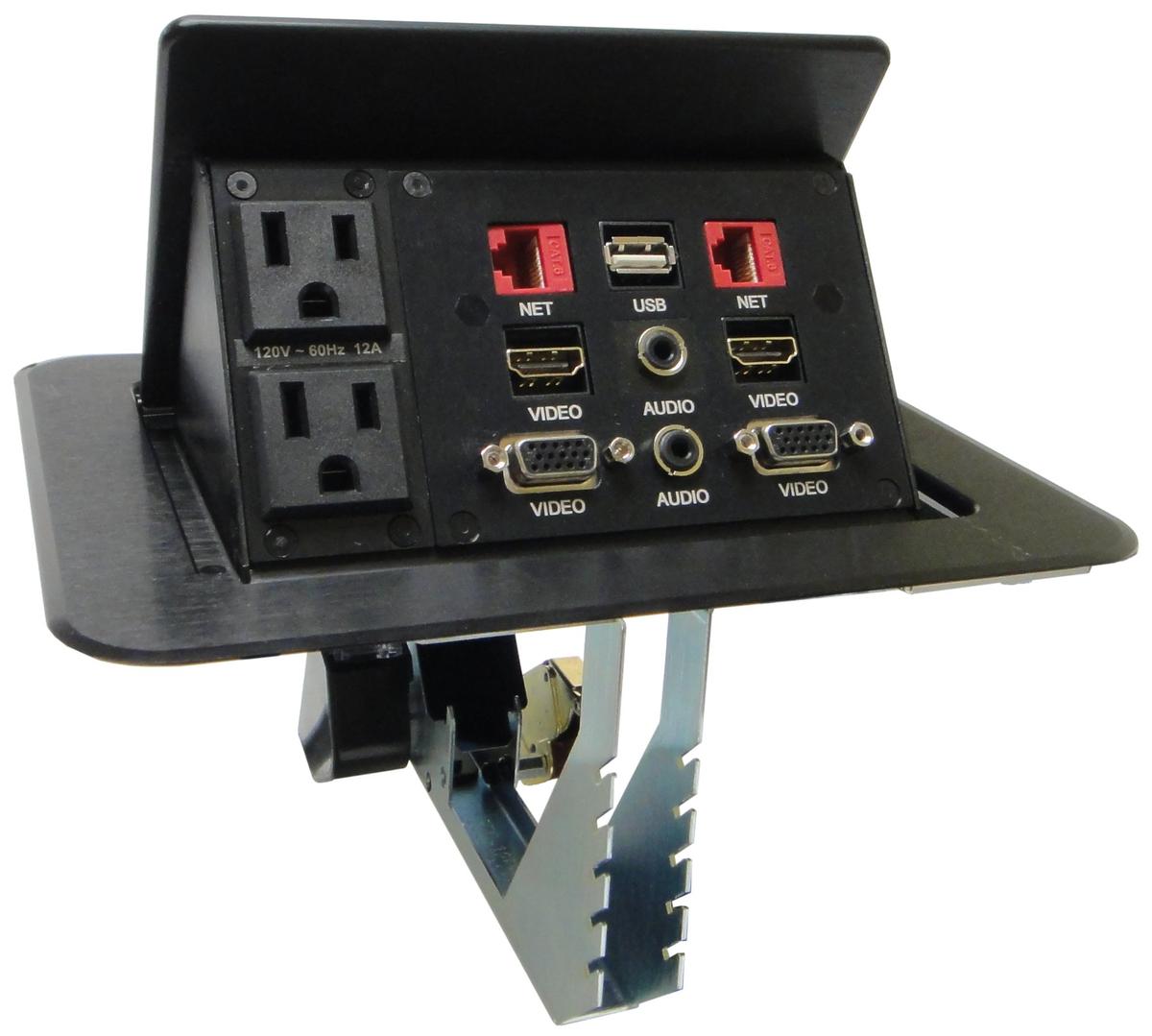

Customize your Altinex TNP528C with 2 power and your connectors of choice as well as finish color. Use our customizer to build your perfect table box, just click on the connections in the picture to start. Typical lead time to custom build your box before shipping out takes around 2 to 3 days.

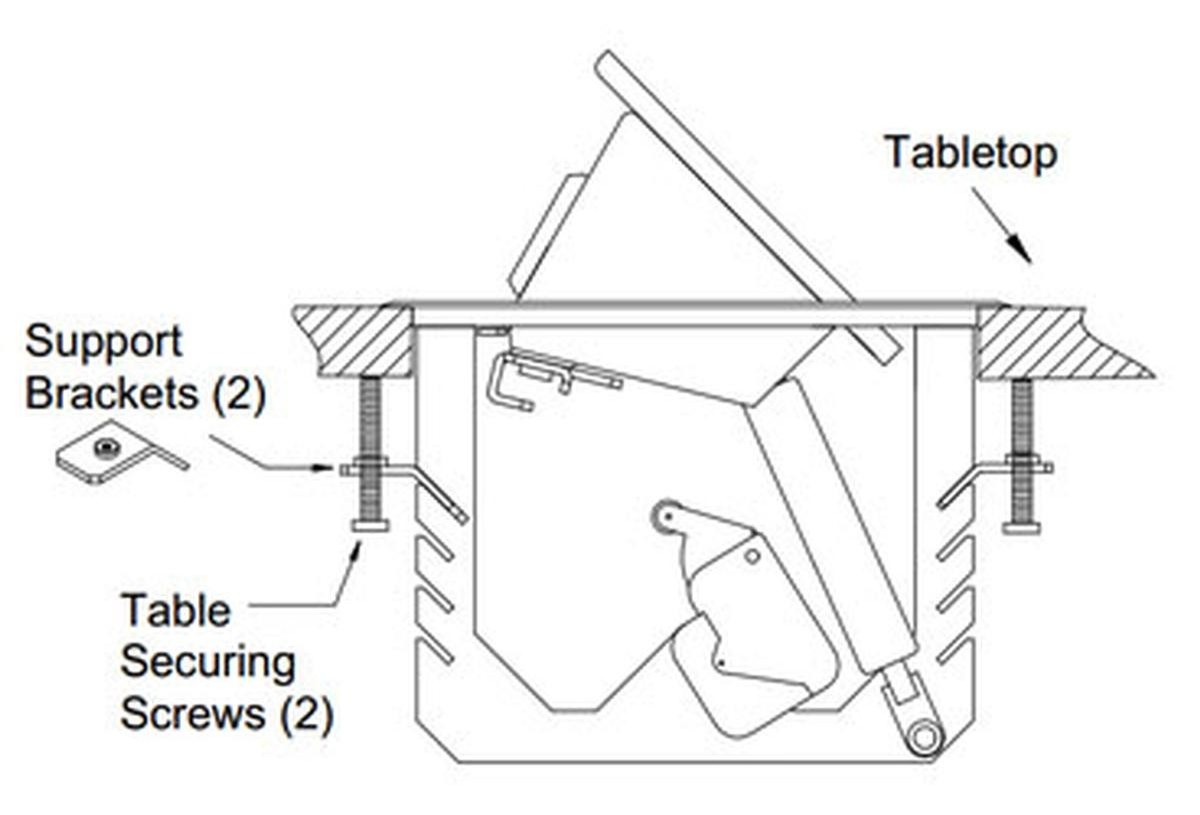

The customized TNP528C is an ideal solution for your conference table allowing exactly the connectors you need for your room. The unit tilts open when needed, when you want to hide simply press it down and close till it is flush with your table.  To install simply drop the unit in your table cut out using the cutout template and secure to the under side of the table using the included mounting hardware.   Your signals are passed through under the table via 6' cables with mating male connectors on the opposite end, the power cable is 9' long.

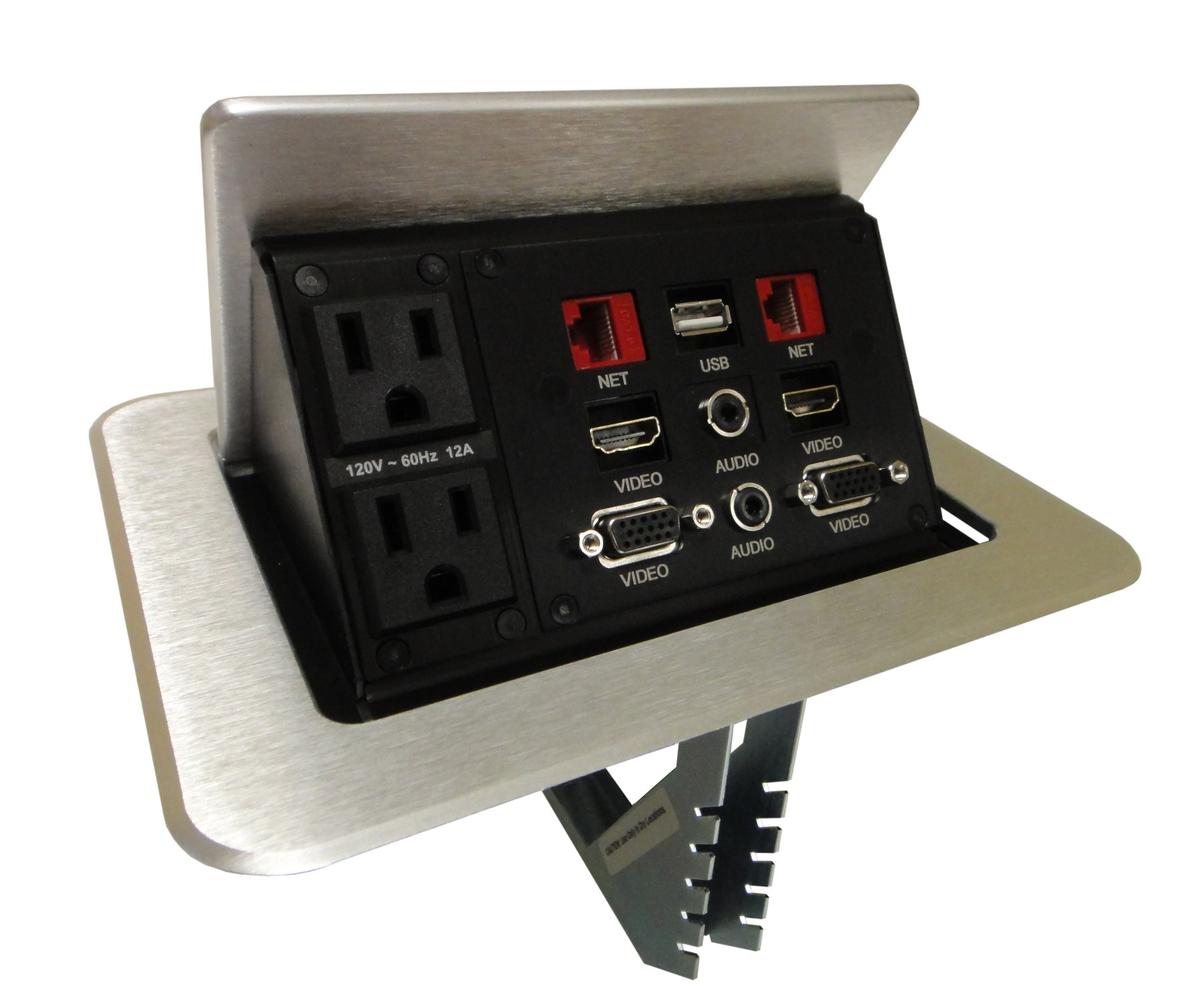

Choose from black anodized aluminum or silver anodized aluminum color, building your custom table box usually only takes around 2 to 3 days.

Customization Instruction

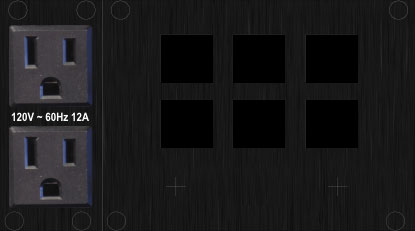

1. In the image of your custom unit (above), the Snap-Ins/Audio & D-Sub connectors that can be configured are shaded.

Example of a customizable snap-in

2. Click on each shaded area to pop up a box with the available options for the individual connector you selected. Click on the option you desire for the unit - it will be displayed on the unit after selection. You may click on a previously selected snap-in/connector to choose a different option. Note that if you want no connection in a slot, please click on the blank connector in the pop up box.

3. This product has multiple colors/finishes - you may select what color you want via the dropdown above the 'add to cart' button displayed on this page, or you will be prompted for what color you want when you have fully customized your product.

4. Upon completing customization of your product, a dialogue box will pop up informing you that customization is complete and your product is ready to be added to your cart.
