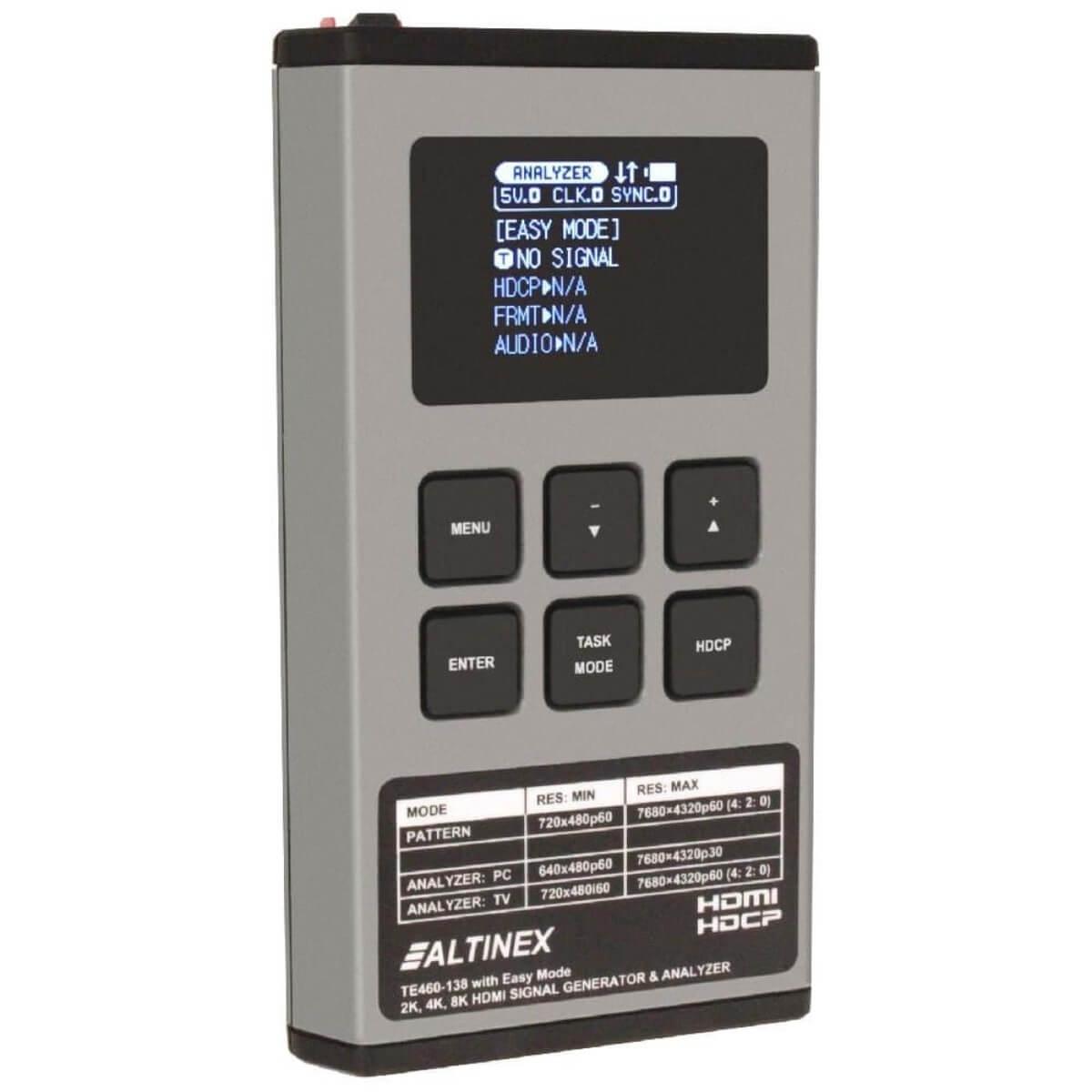

Altinex TE460-138
2K, 4K, 8K HDMI Signal Generator & Analyzer
Part #: TE460-138
Satisfaction Guaranteed!
MSRP: $998.00
Our Price:
$888.72
Top TE460-138 Specifications
- EASY and ADVANCED mode options
- HDMI input and output with 40 Gbps 8K UHD support
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.3 compliant
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008
Description

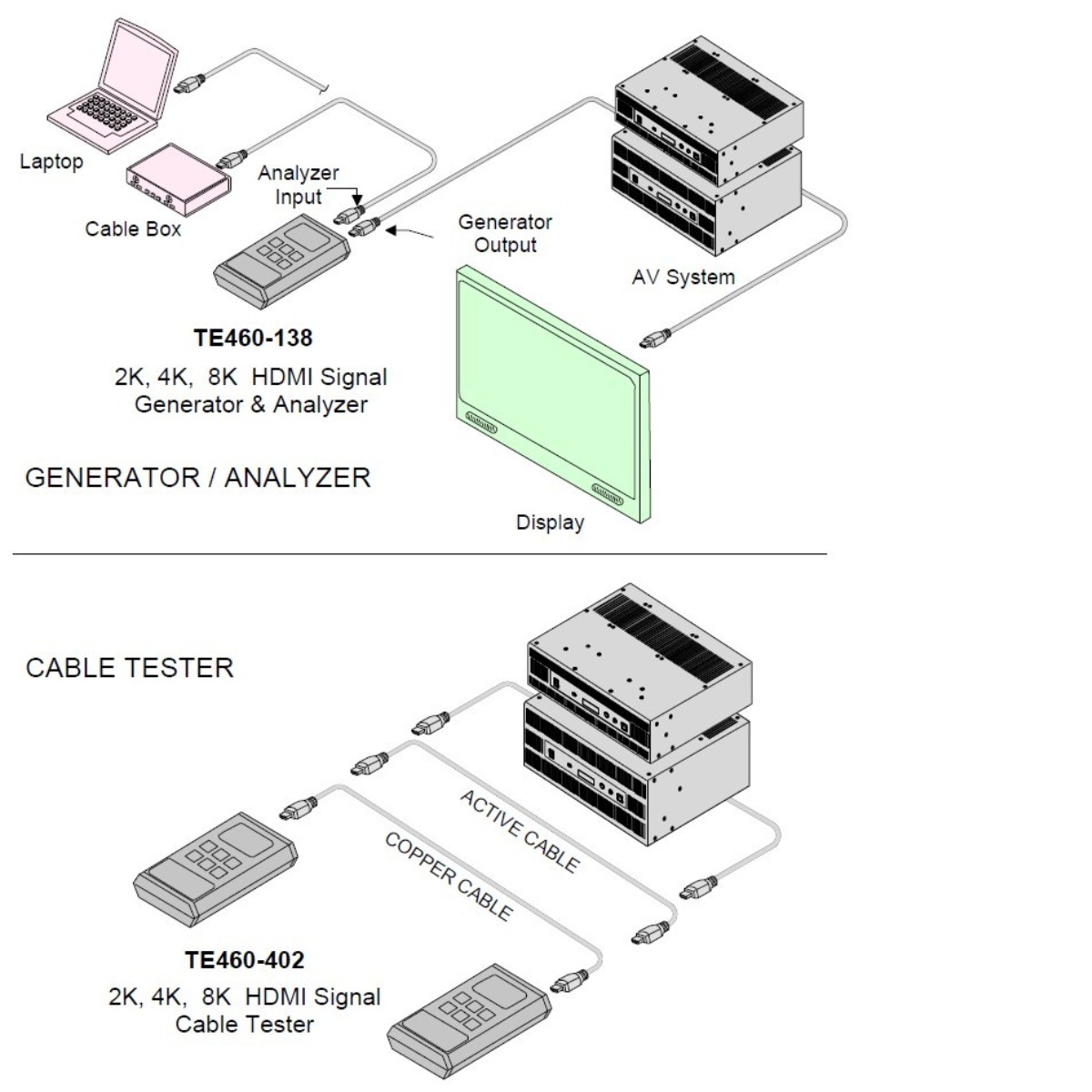

The TE460-138 is a portable HDMI Signal Generation and Analysis tool that provides a convenient way to test and verify all aspects of an HDMI signal path, including source and sink. This unit complies with the HDMI 2.0a and HDCP 1.4/2.2/2.3 standards. The units Analyzer mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3 for EDID analysis.
Specifications
- Supports HD resolutions up to 7680x4320@60Hz (4:2:0, 8-bit)
- Source bypass support in Analyzer mode
- HDR bypass and analysis support
- Analysis and emulation of EDID data
- HDCP and SCDC monitoring functions
- HDMI packet analysis
- Analyzer mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3
- 40 selectable output resolutions available in Test Pattern mode
- 20 selectable static test patterns in Test Pattern mode
- Supports LPCM 2.0, 5.1, and 7.1 audio output with adjustable sinewave frequencies for each channel
- Comprehensive EDID management support with 12 built-in default EDIDs and 10 user EDIDs copied from sink devices
- Burn other SINK device EDID Block 0 and Block 1 using default or saved EDIDs
- Powered by a single Lithium-ion battery (included). Use of an external USB power bank can provide extended operation time
- OLED display with rapid updates of current status information
