Surface Mount Table Box with Power, HDMI, USB-C and Data

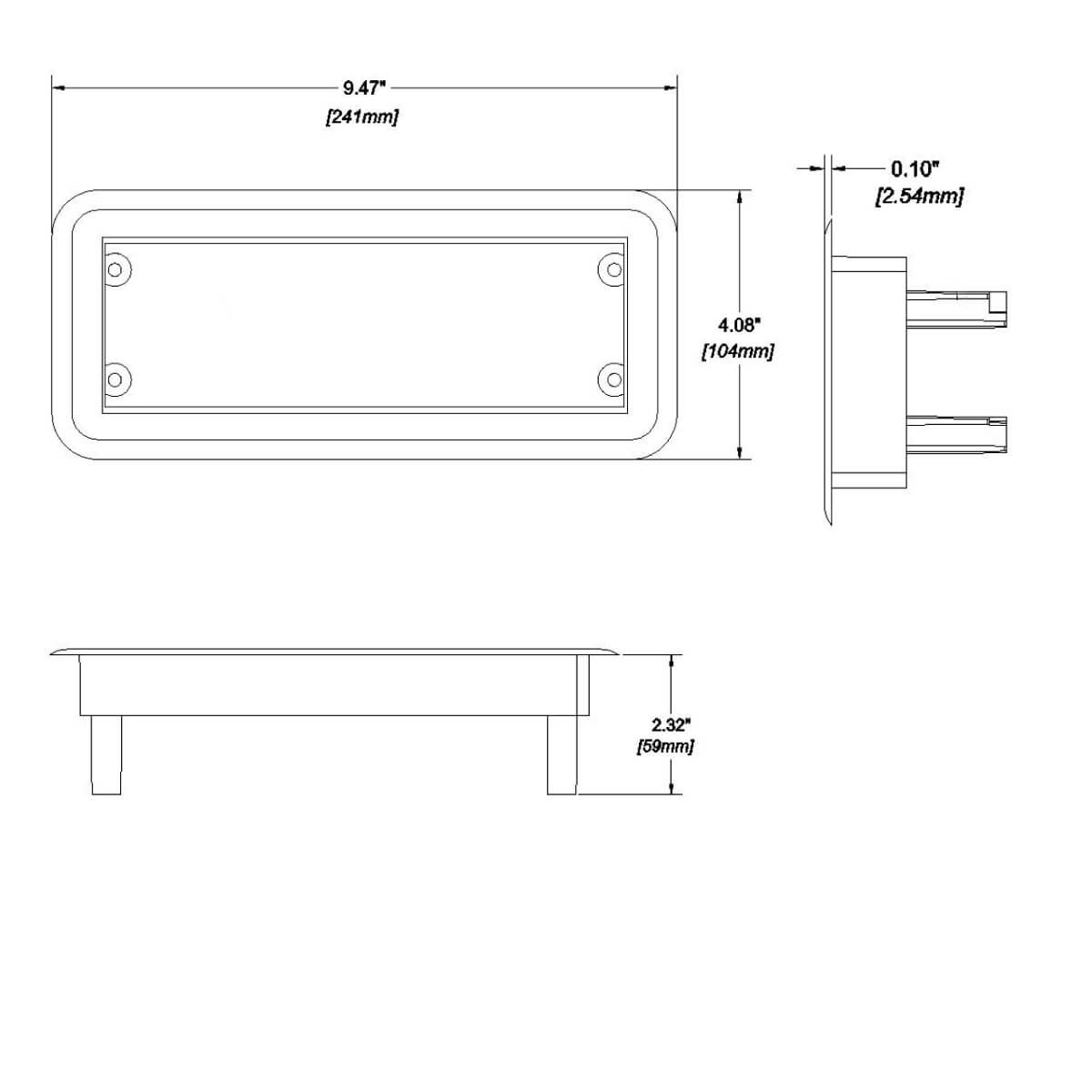

- Dimensions (LxW): 9.5" x 4.1"
- Depth Below Table: 2.3"
- Max Table Thickness: 2"
- Color: Silver

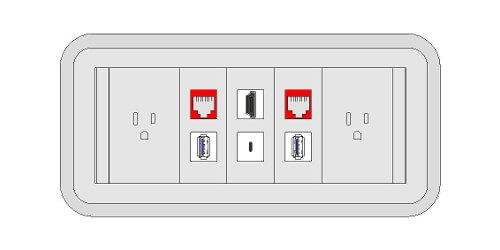

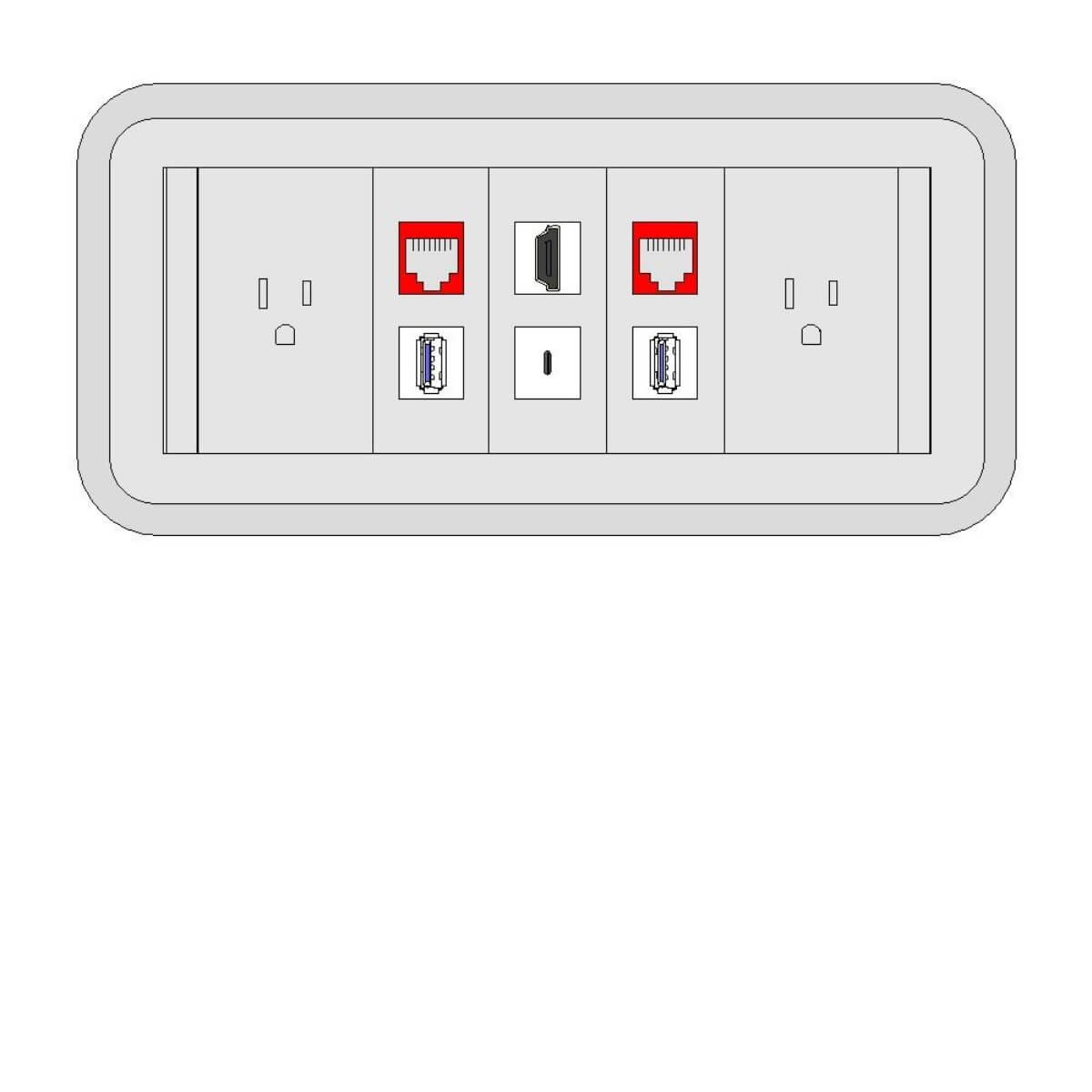

The Altinex TB100-201 unit is pre-configured with 2 U.S. power, 2 1/4-inch wide blank plates, and 3 double snap-in connector plates which are pre-populated with the following snap-in connectors: 2 RJ-45, 2 USB-A 3.0, 1 HDMI, and 1 USB-C. The snap-in modules are pre-installed in the TB100-201 modular unit frame and is flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.

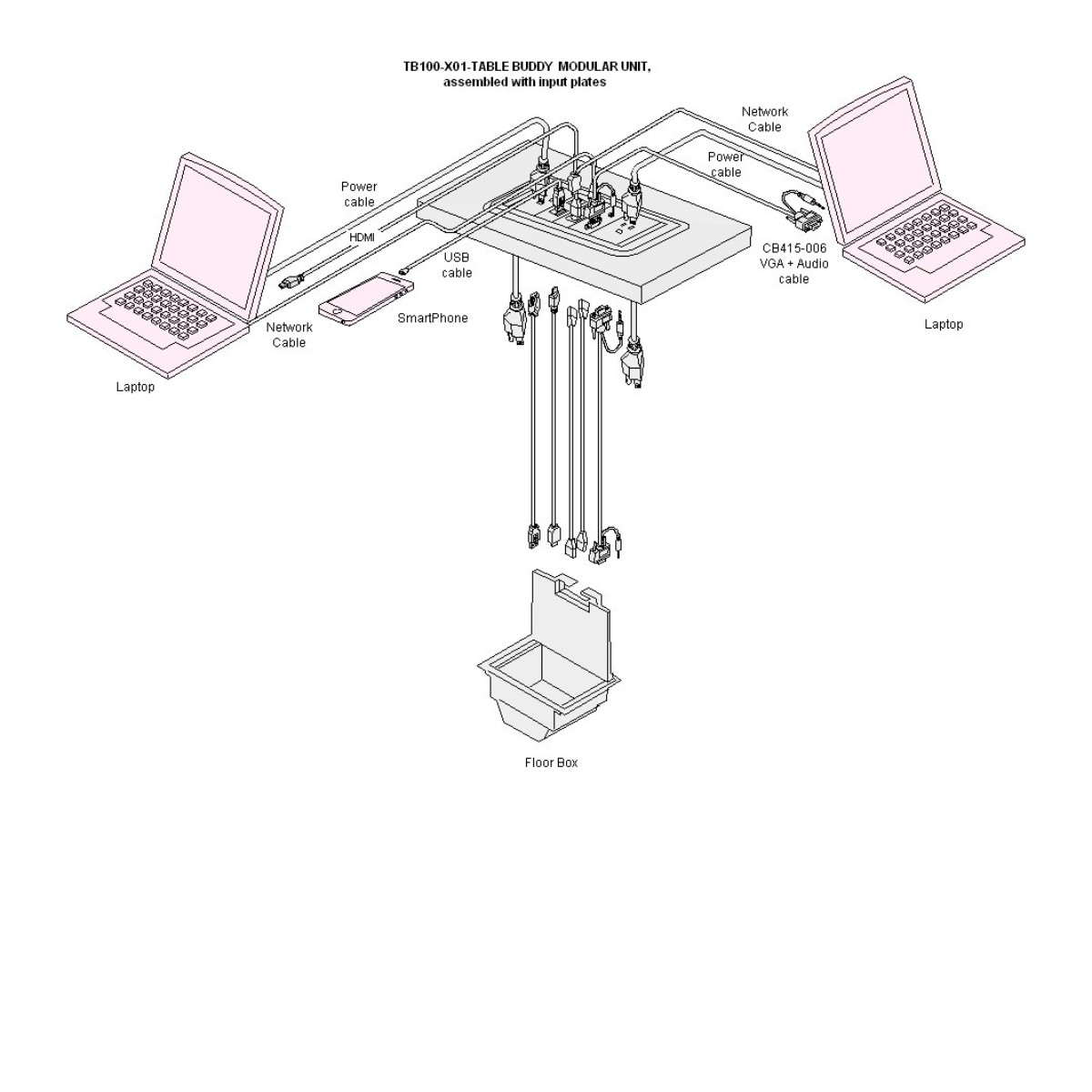

The TB100-201 is a pre-configured interconnect unit, designed for boardroom and conference rooms. Cables for a presentation system are connected to the connectors on the snap-in modules, enabling the user easy access for connections of AC power, video, audio, and the other media sources from the top of the table.
- Pre-configured with Table Buddy snap-in modules and connectors
- Simple, cost-effective interconnect solution
- Installs into tabletop

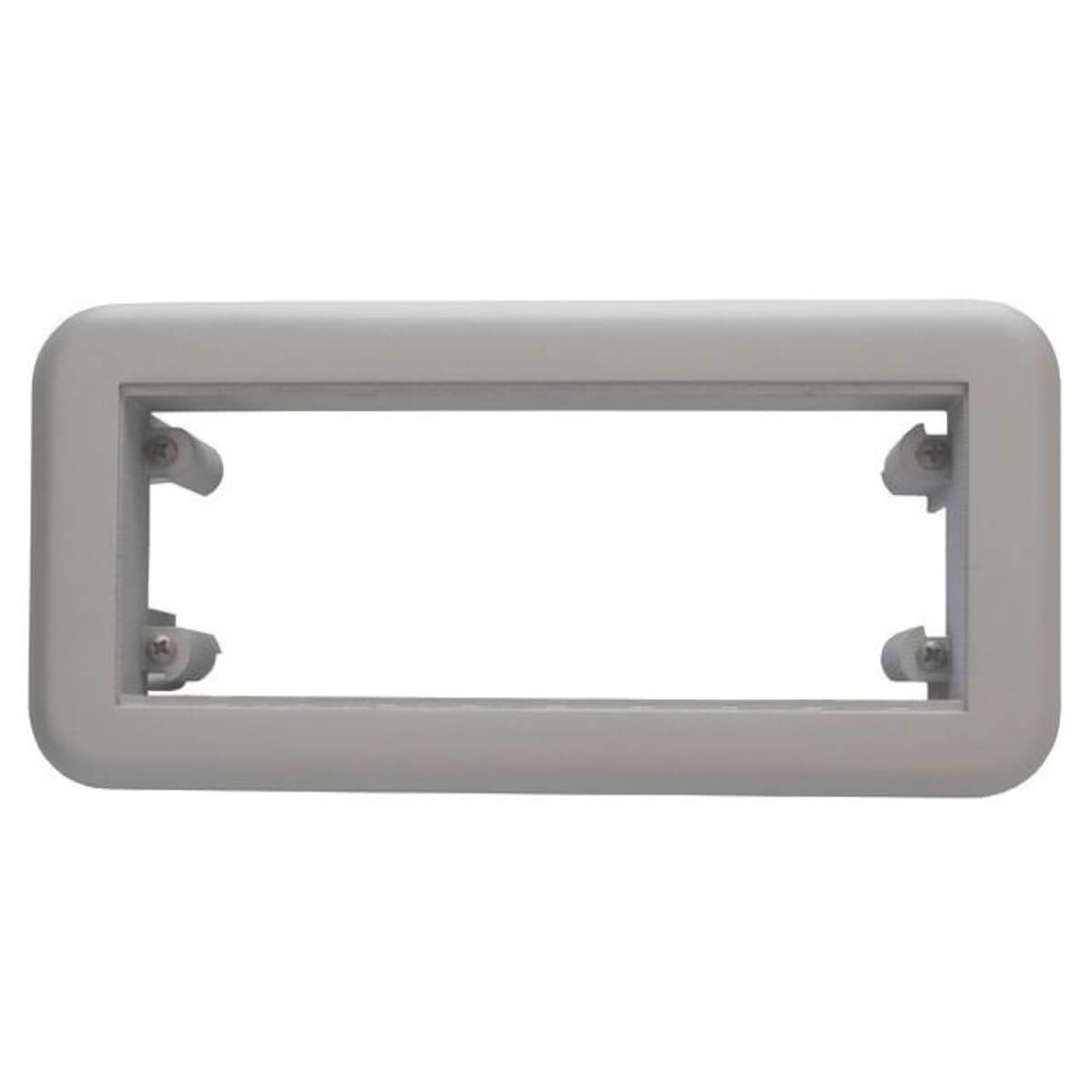

- Designed with dual locks that easily secures the unit to the surface without any tooling
- Offers user-configurable input plates
- Convenient access to connect cables via snap-in modules
