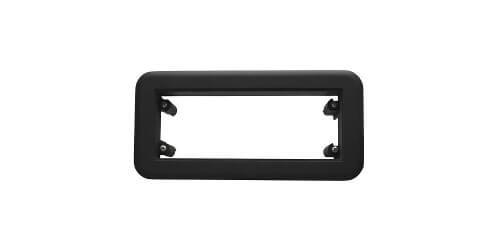

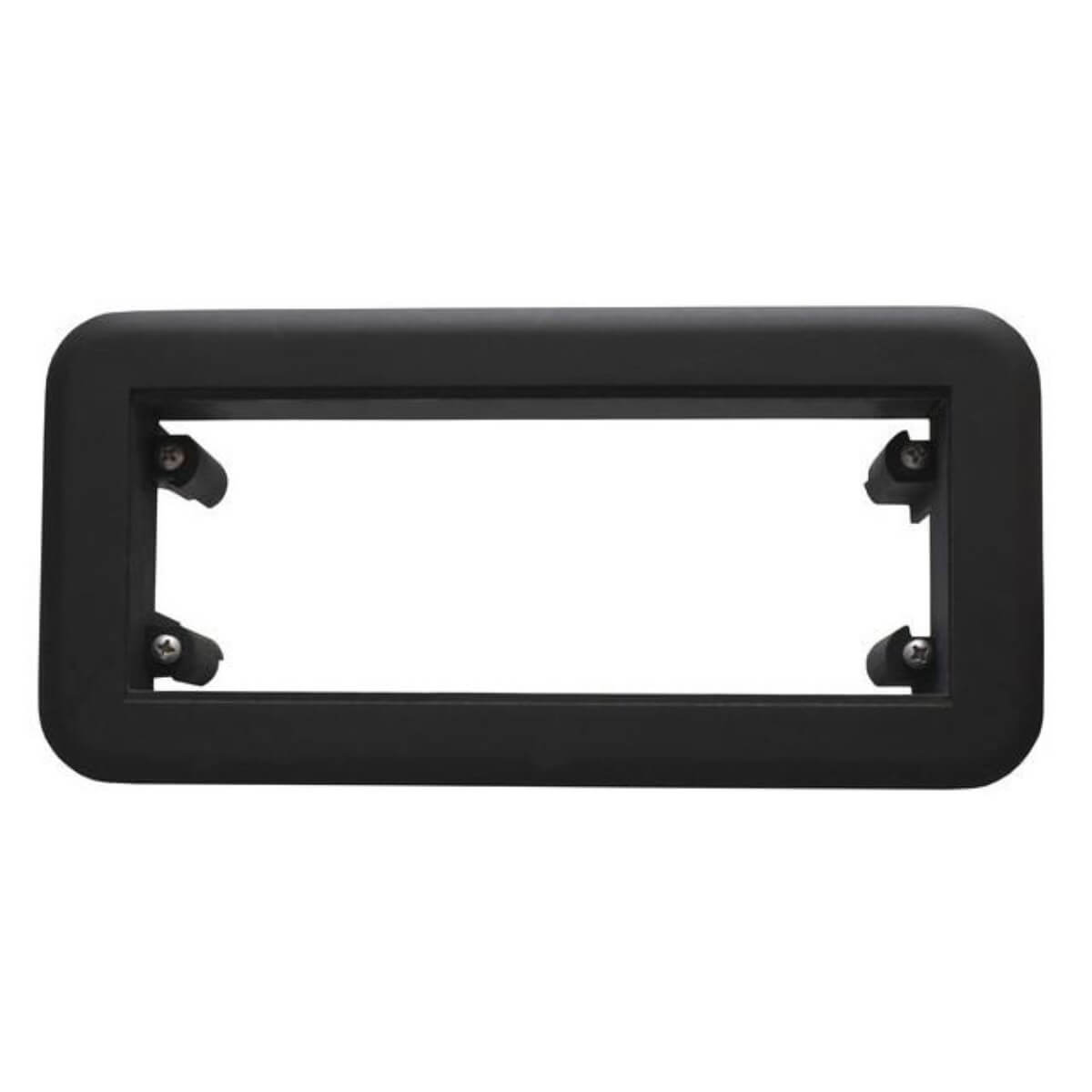

Altinex TB100-003
Modular Frame for Altinex Table Buddy Surface Mount Boxes - Black

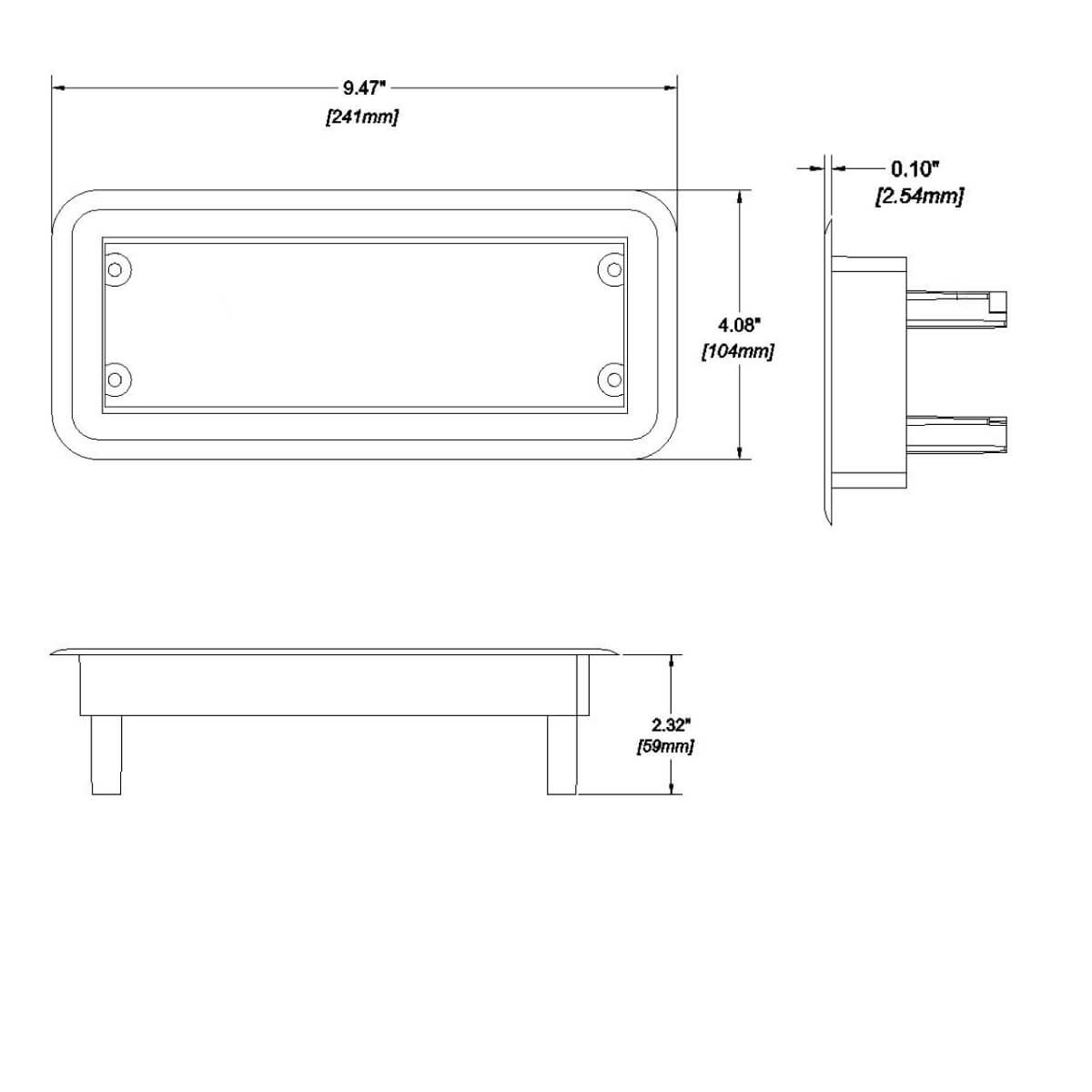

- Dimensions (LxW): 9.5" x 4.1"
- Depth Below Table: 2.3"
- Max Table Thickness: 2"
- Color: Black
Description
Do you want to integrate the Table Buddy setup into your tabletop? The TB100-003 is what will help you anchor the whole thing. The Altinex TB100-003 is the main mounting frame used in the Table Buddy modular surface-mount systems. These can hold all your power, data, and AV connections safely right at the top of your table.
Altinex offers many versions of this modular frame in different finishes for different mounting styles. The TB100-003 is the standard black version of the Altinex Table Buddy modular frame. It has an anodized aluminum finish that presents a more neutral and professional look better suited to the dark modern conference room tables and overall aesthetics.
The Altinex TB100-003 modular frame can hold up to six TB130 series inserts. This means it is built to house up to six modular inserts, like HDMI ports, USB-C, power outlets, network jacks, or even just blank plates if you are planning to leave space for upgrades for future needs. The user chooses what goes inside, and this frame simply locks it all in securely.
The frame is made from durable aluminum, which is especially important in high-traffic meeting rooms and boardrooms where the table gets daily use. The solid construction design of the frame prevents things like loose connections or cracked bezels. Once integrated, it sits flush and steady on top. It does not flex or wiggle and keeps every insert inside safe and steady. The fit and finish of the frame are solid, and the black powder coat blends well with most wood tones and darker finishes.
This Altinex Table Buddy modular system helps keep your cabling clean and their layout logical. It eliminates the need to have wires run across the table or snake out of a single grommet. The Altinex TB100-003 is a purpose-built frame to help keep all important connections in place. You can equip it exactly how you want, without any wasted slots.
Specifications
- Configurable with any Table Buddy snap-in modules and connectors
- Simple, cost-effective interconnect solution
- Installs into tabletop
- Designed with dual locks that easily secures the unit to the surface without any tooling
- Convenient access to connect cables via snap-in modules
- Pre-configured unit available as TB100-301
- Also available in White and Silver
- Downloadable cutout template available
