Alfatron ALF-WU4-8K
4 x 1 8K Switcher HDMI2.1 with Audio De embedder
Part #: ALF-WU4-8K
Satisfaction Guaranteed!
MSRP: $364.00
Our Price:
$339.99
Top ALF-WU4-8K Specifications
- HDMI2.1, HDCP2.3 compliant
- 48Gbps Bandwidth (FRL 5)
- Up to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
- Switching time: within 3 seconds
"Very nice folks to work with. Quick and good information"
-Jeff A.
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

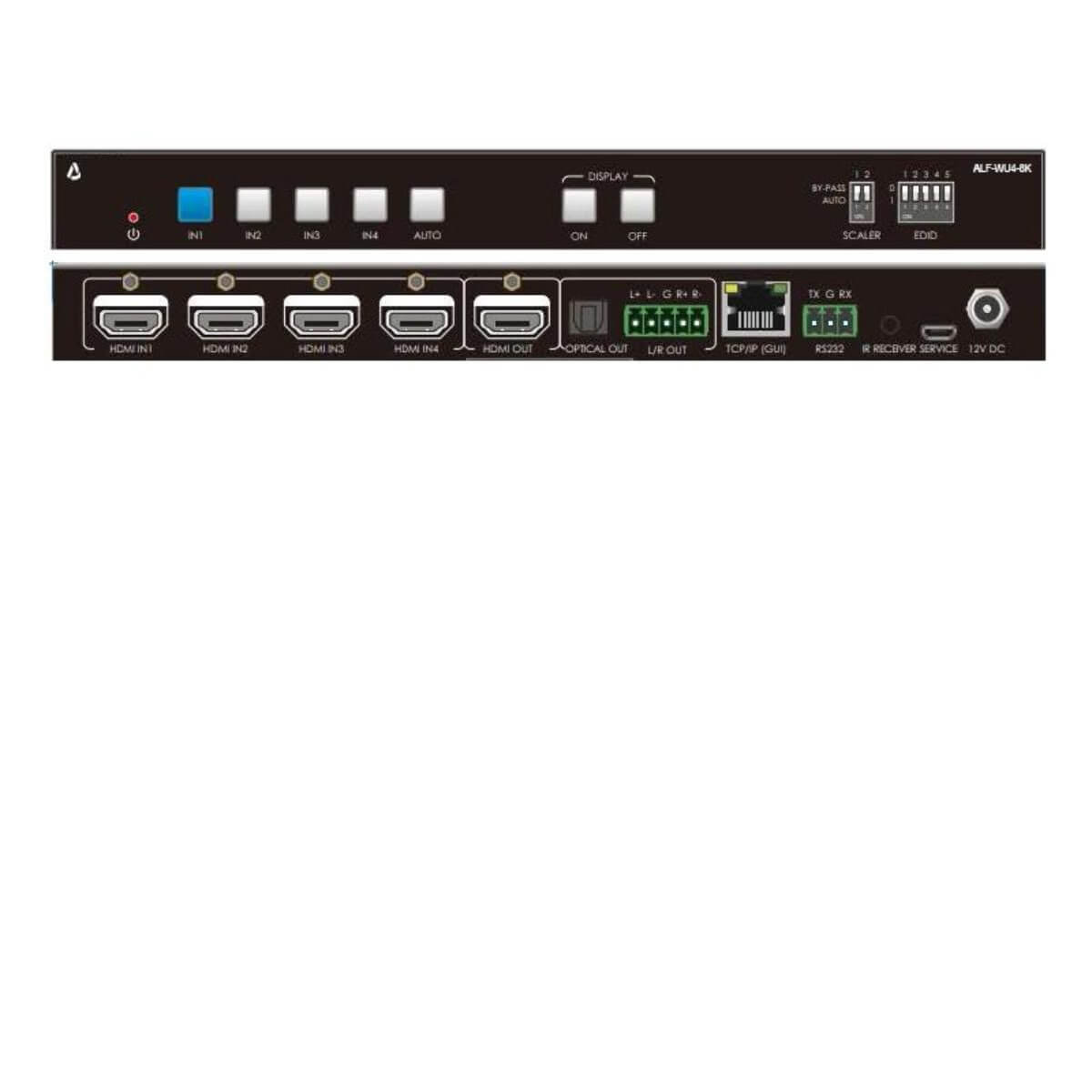

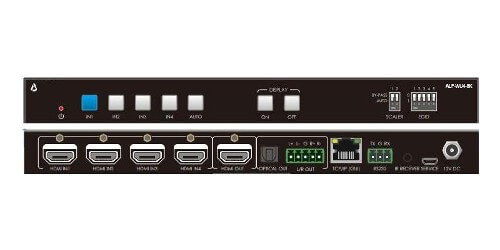

The WU4-8K is an HDMI2.1 switcher and scaler , with 4 HDMI inputs and one HDMI output. It is Full HDMI 2.1, FRL 48Gbps, and HDR support ensure stable signaling even at the highest bandwidths, HDCP 2.3 compliant. This switcher includes de-embedded audio, scaling, EDID management, and front panel LED indicators for power and signal status.
Specifications
- EDID management via 5 pin DIP switcher, with the source through a displays EDID or internally stored EDID
- De-embedded audio: 1 x balanced, 1 x Optical
- Downscaling from 8k to 4K, 4K to 1080p to the legacy displayer
- Backlit LED to show the working status
- CEC Display ON/OFF control with backlit button
- RS232, IR and GUI control
- Alfatron or Josawa unique RS232 codes and GUI design
- TCP/IP Control
- CEC Display ON/OFF control with backlit button
