Alfatron ALF-TRUK100-RS
4K auto switching kit wall plate with HDMI, USB-C, USB over HDBaseT
Part #: ALF-TRUK100-RS
Satisfaction Guaranteed!
MSRP: $880.00
Our Price:
$829.99
Top ALF-TRUK100-RS Specifications
- Extend USB-C, 0 & USB2.0 signal over HDBT2.0
- HDMI, 18G, 4K@60 4:4:4, HDCP 2.2 and backward compatible
- Transmission distance at 4K@60 4:4:4 Max up to100m ( CAT6 STP cable)
- Bandwidth rate max up to 480M/bps
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

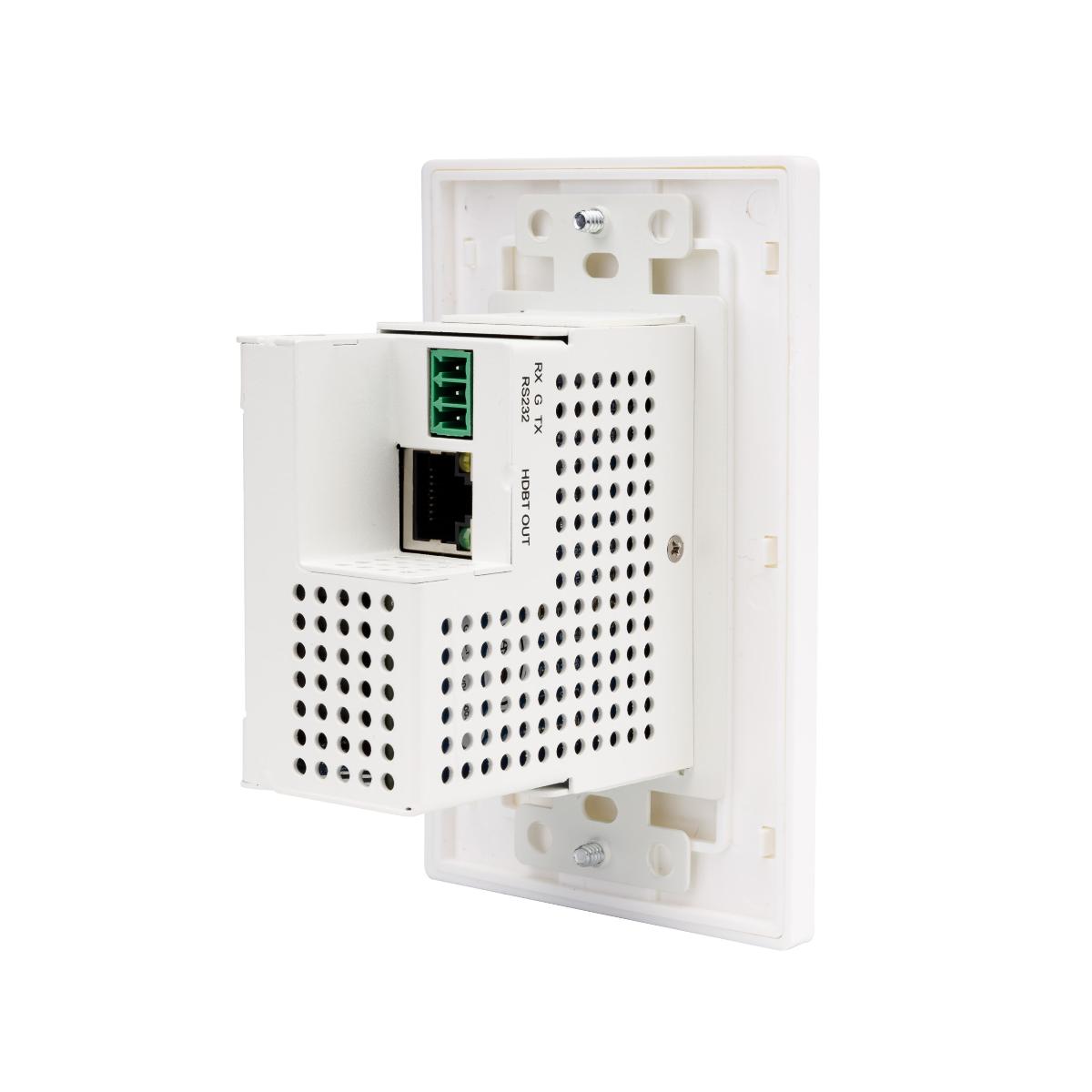

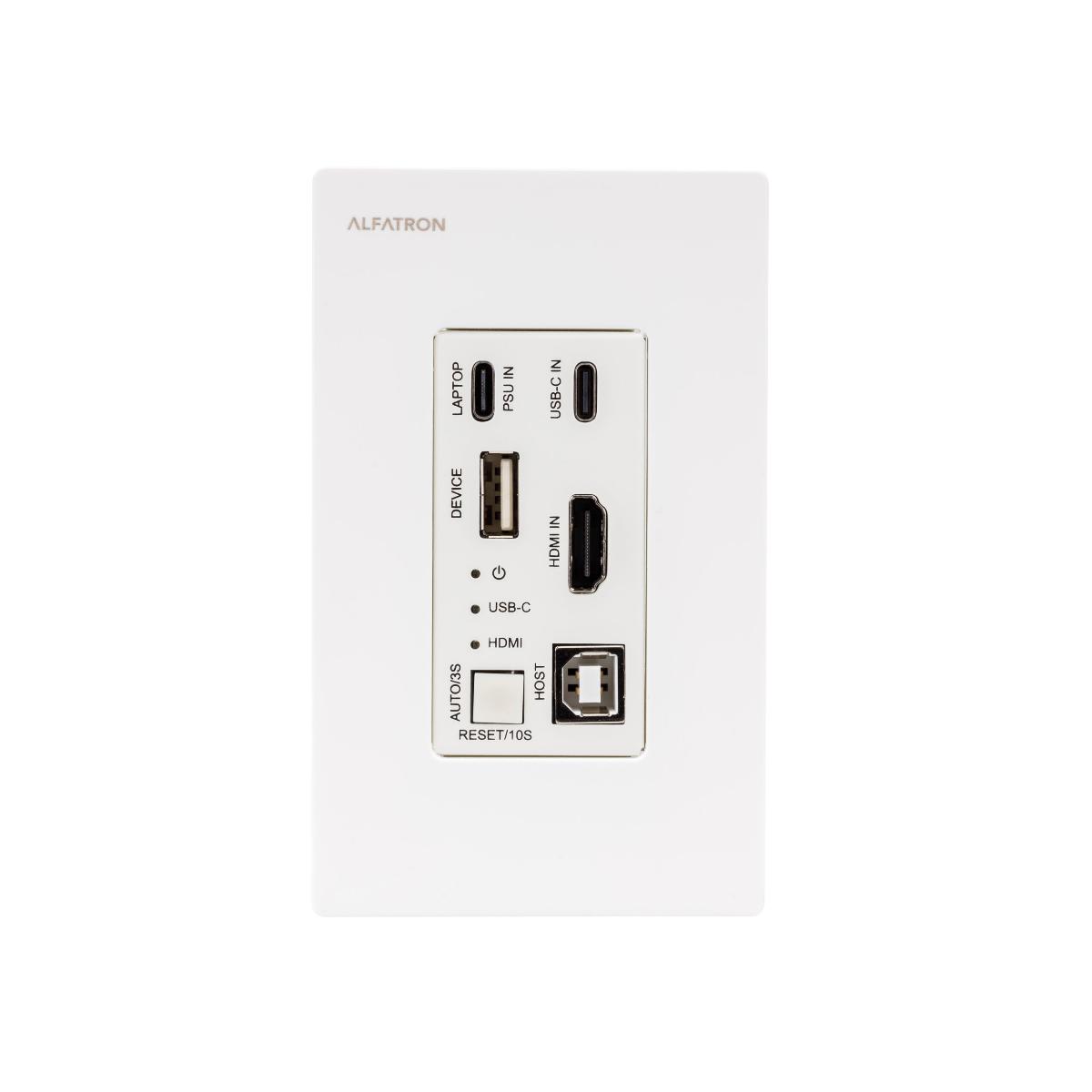

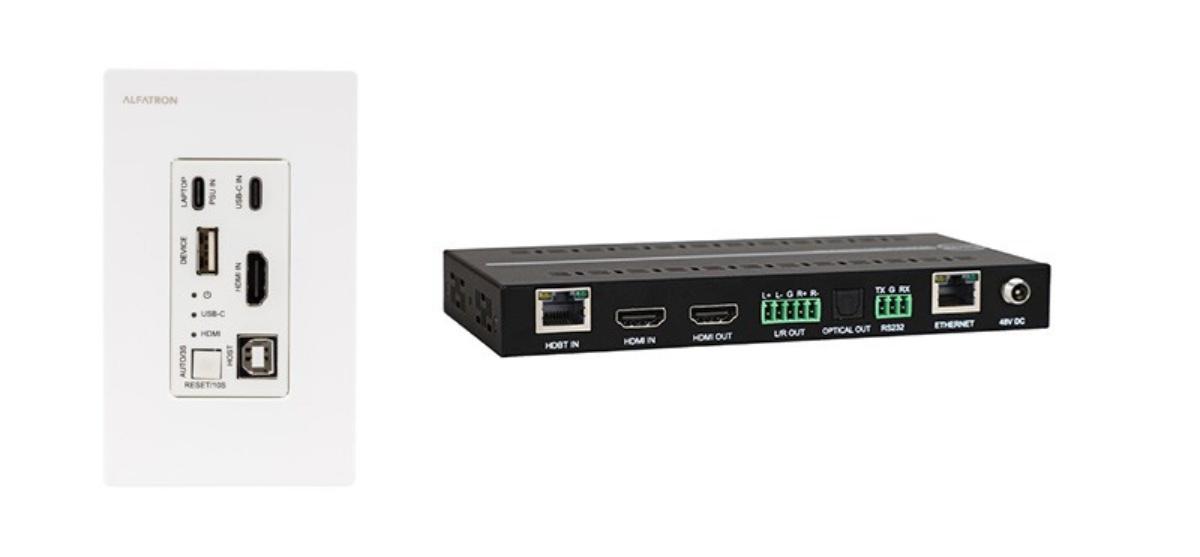

The ALF-TRUK100-RS is an HDBaseT wall plate extender kits for video (Max 4K@60 4:4;4), audio, USB2.0, RS232 control signal and Ethernet over distances max up to 100m. It includes USB2.0 and USB-C host interfaces, plus a USB2.0 interface for a peripheral devices such as speakerphone, video camera, microphone, or keyboard and mouse with the charging function. The transmitter features a US one-gang, wall plate form factor, and includes one white face plate.
Specifications
- USB-C supports 4K@60 4:2:0
- USB-C charging port, Max supports 100 W PD, to charge the connected PC
- HDMI In on Rx for BYOD devices and with Auto-SW control

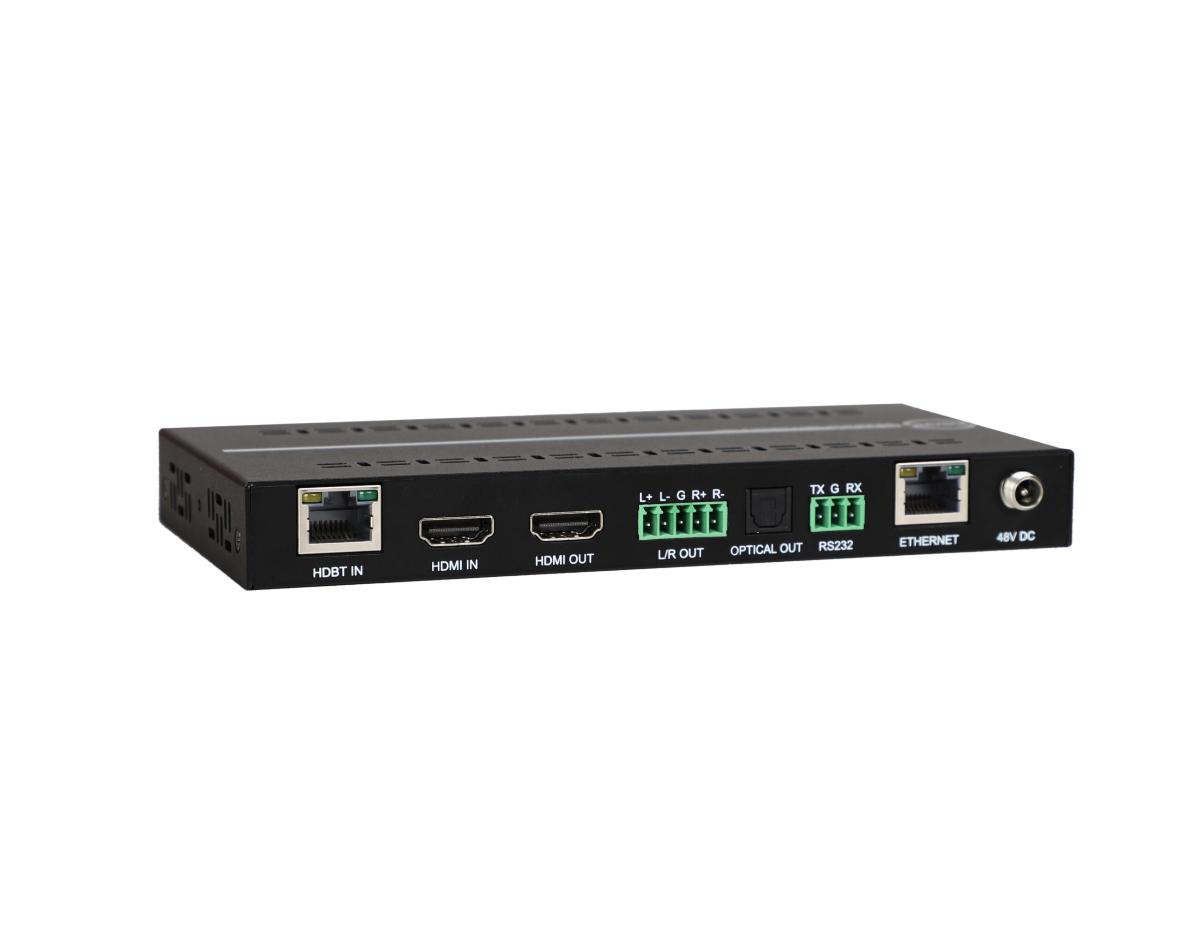

- De-embedded audio (analog and optical) at Rx
- RS232 pass through from Tx to Rx
- Supports Auto SW and manual mode via button
- Support 48v PoC function (only from Rx to Tx)
- EDID & HDCP management on Dip switch
- Support 3D, HDR10 and Dolby Vision
- Ethernet port for USB-C or USB-B Ethernet usage and support Ethernet ON/OFF control
- US one-gang enclosure for Decora-style at Tx
- Standard ALFATRON RS232 code format
