Alfatron ALF-TPBK70-R
HDMI Over CAT HDBaseT Receiver, With HDMI In, HDMI Out, RS232, RS232 and Audio De embedder.
Part #: ALF-TPBK70-R
Satisfaction Guaranteed!
MSRP: $340.00
Our Price:
$329.99
Top ALF-TPBK70-R Specifications
- Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
- HDMI input supports 18Gbps video bandwidth,
- Auto switching between HDBT in and local HDMI in
- Video resolution up to 4K2K@50/60Hz 4:4:4
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

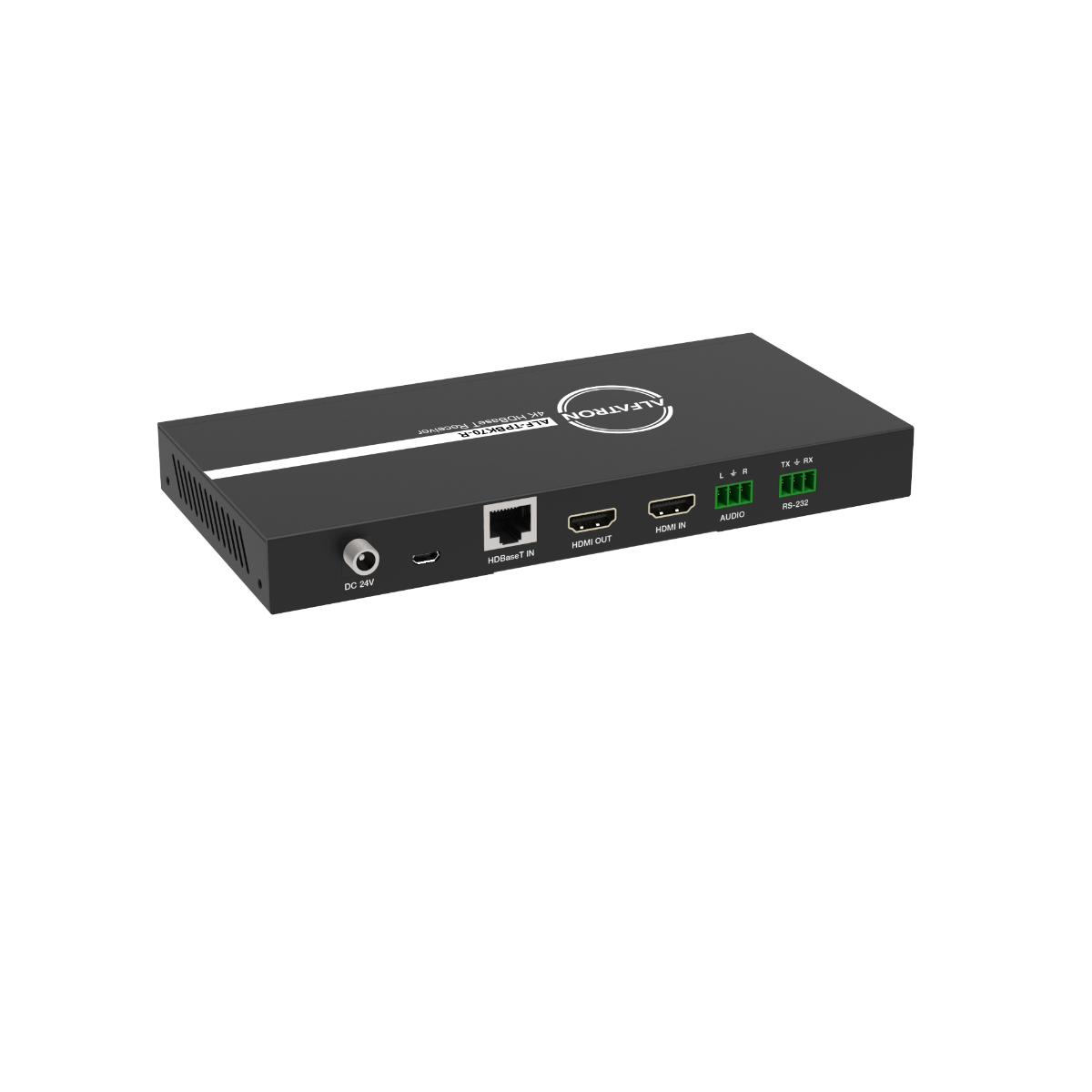

The ALF-TPBK70-R HDBaseT receiver supports video resolutions up to 4K2K@50/60Hz 4:4:4 from the transmitter over CAT6. It has bi-directional RS-232 pass-through, audio de-embedding and the RS-232 control signal can be transmitted up to 131ft / 40m. Supports local HDMI in with auto switching between HDBaseT in and local HDMI in.
Specifications
- HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable
- Supports 3D, HDR10
- HDMI audio formats support LPCM, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Supports POE function (Receiver to Transmitter only)
Reviews
There are currently no reviews for this product.
