Alfatron ALF-SCK51TS-D
Seamless switcher with 5 inputs. HDMI & HDBaseT outputs. Includes receiver.
Part #: ALF-SCK51TS-D
Satisfaction Guaranteed!
MSRP: $2,285.00
Our Price:
$2,099.99
Top ALF-SCK51TS-D Specifications
- HDMI 2.0b, HDCP 2. 2 , 18Gbps 4K@ 6 0Hz 4:4:4
- 5 x 1 seamless switching and multi viewer
- Switcher Input: 2x USB C , 3 x HDMI , 1x Analog audio , 1x Dante 2ch, USB Host, 2x USB Peripheral inputs
- Switcher Output: 1 x HDMI and 1x HDBT mirrored , 1x Analog audio , 1x Dante 2ch
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

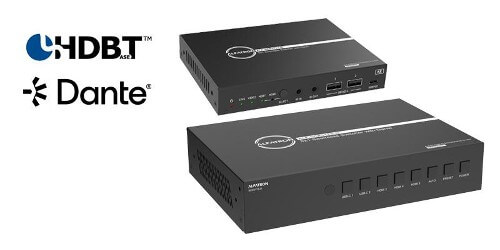

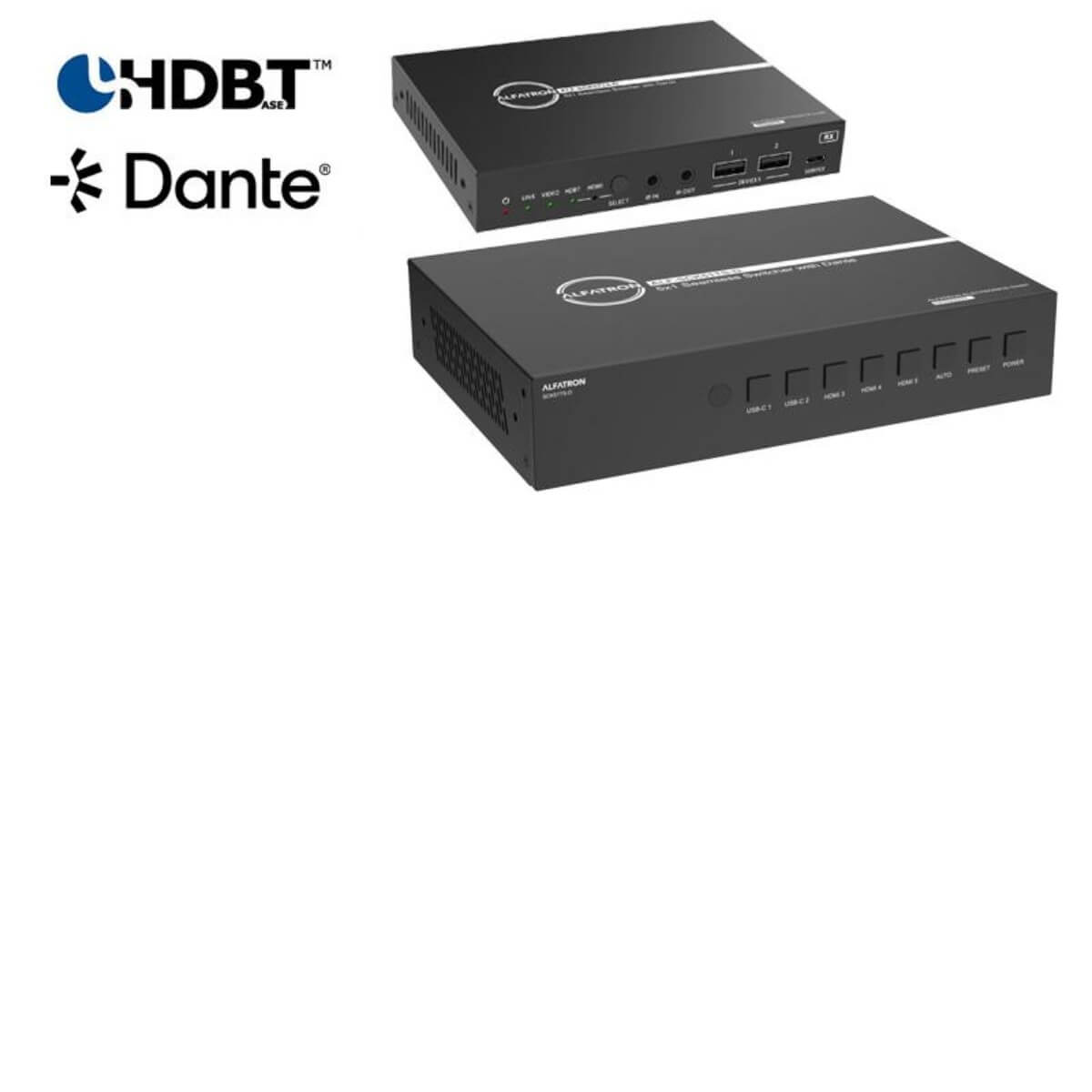

The ALF-SCK51TS-D is a 5 x 1 seamless presentation switcher with HDBaseT3.0 receiver supports video resolutions up to 4K@60Hz 4:4:4 8bitdeep color and HDCP 2. 2 compliant, it features multi view function for multi sources can be displayed on single screen. This switcher supports HDMI and HDBaseT mirrored outputs and HDBaseT extending uncompressed 4K up to 132ft/40m or 1080P up to 230ft/ 70m via single Cat6a cable.
Specifications

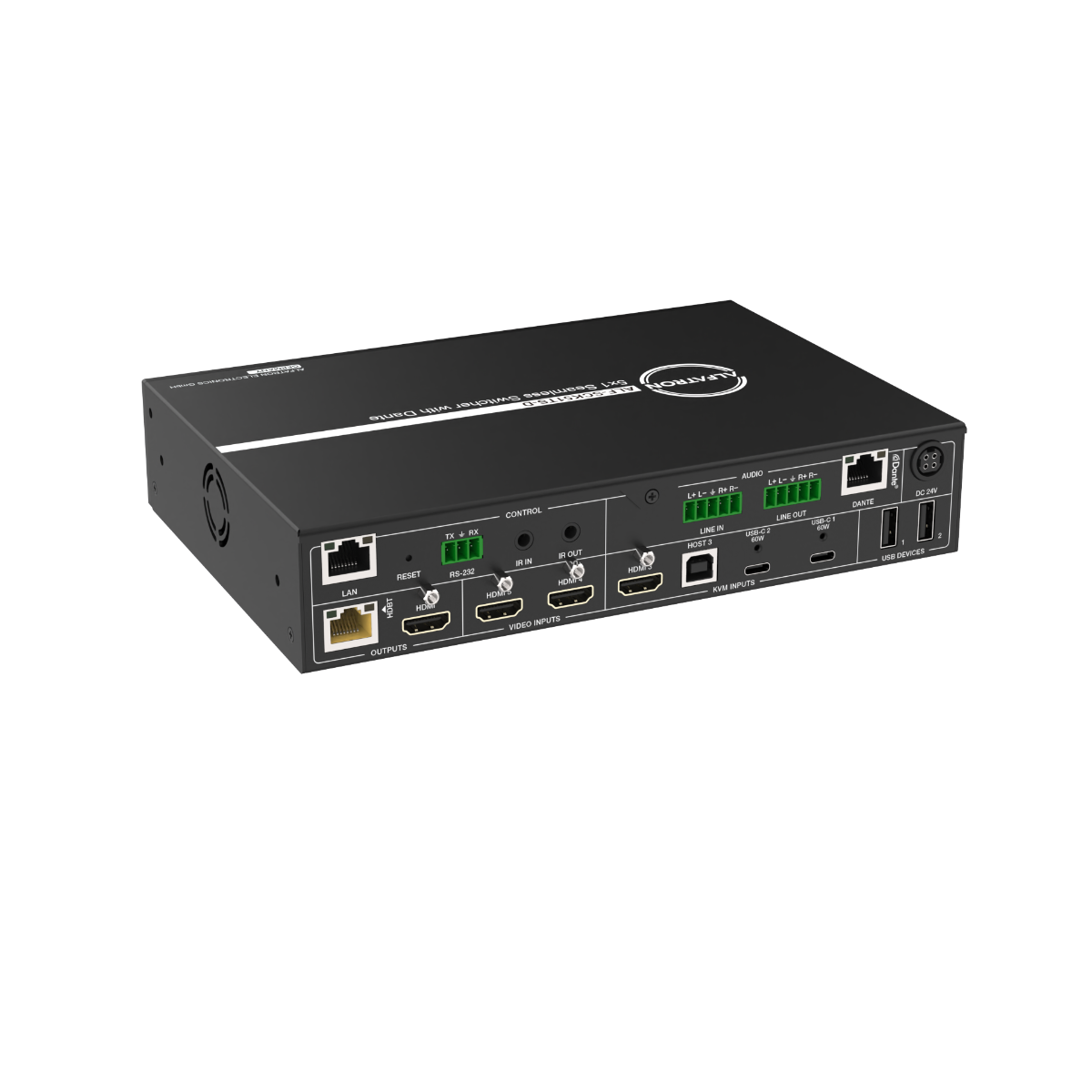

- Receiver Input: 1x HDMI, 1x HDBaseT, 1x USB Host
- Receiver Output: 1x HDMI, 1x Analog audio, RS232
- Auto or manual switching mode
- HDMI and HDBaseT mirrored outputs
- USB C supports ALT DP mode for A/V , USB 2 .0, 100M ethernet and 60W charging
- Local U SB 2 .0 KVM switching and extending USB 2.0 over HDBT 3.0
- USB Host Ports on the TX and RX.
- Uncompressed 4 K over HDBT 3.0 up to 132ft/40m via single Cat6a cable
- Uncompressed 1080P over HDBT 3.0 up to 230ft/70m via single Cat6a cable
- POE over HDBT to power RX from TX
- Audio embedded and de embedded
- Audio DSP for gain, equalizer , volume and delay
- Dante 2x2 audio input and output
- CEC /RS 232 control external device ON/OFF
- EDID management
- Front panel button, remote control, RS 232 , TCP/IP and Web GUI control
- Includes the Receiver
