Alfatron ALF-MUH88E GEN2

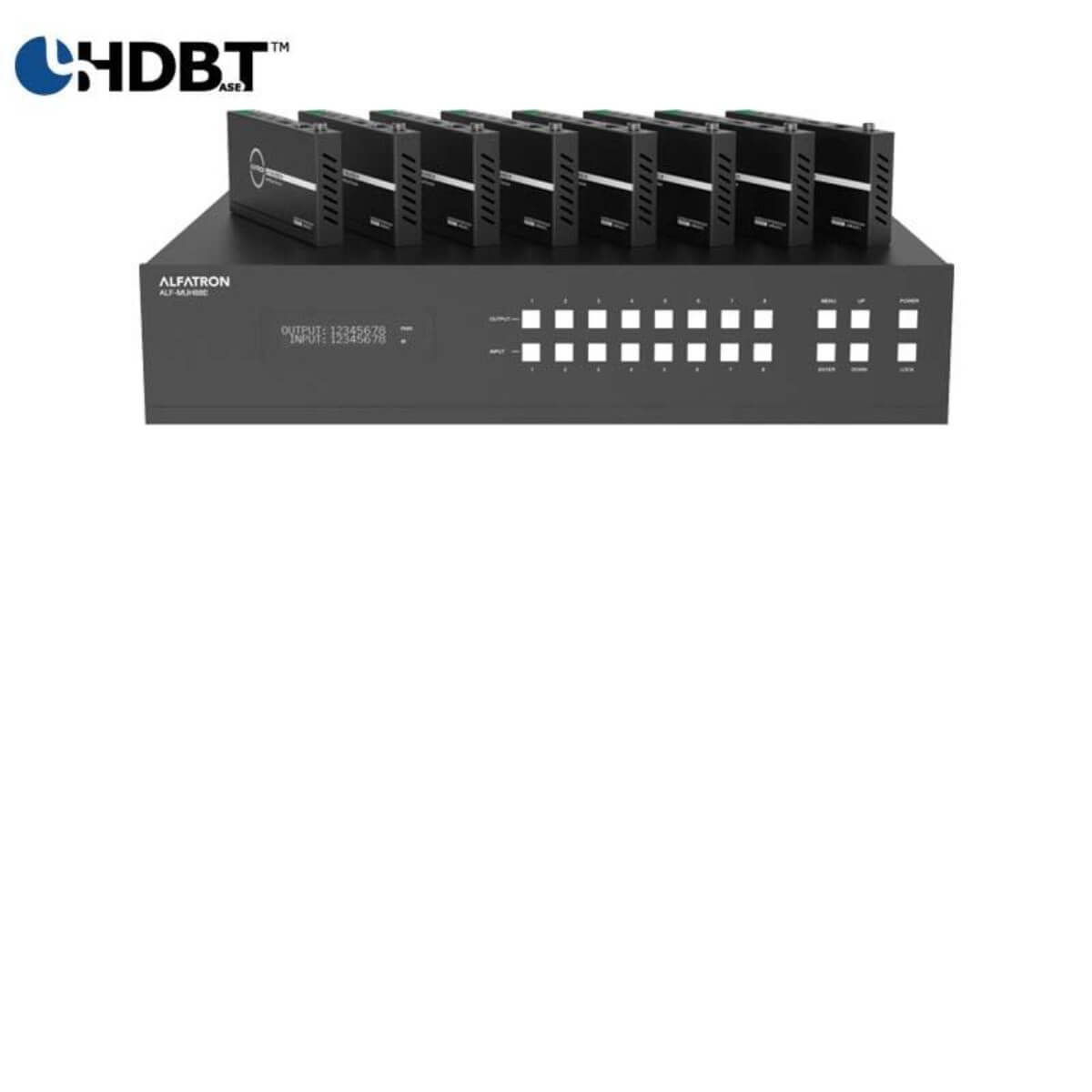

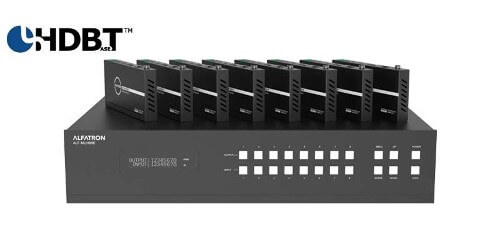

18G 8x8 HDMI Over HDBaseT Matrix with 8 HDMI inputs, 8 HDBaseT Outputs and 8 Mirrored HDMI Outputs, Includes 8 HDBaseT Receivers.
-Timothy J.
Description

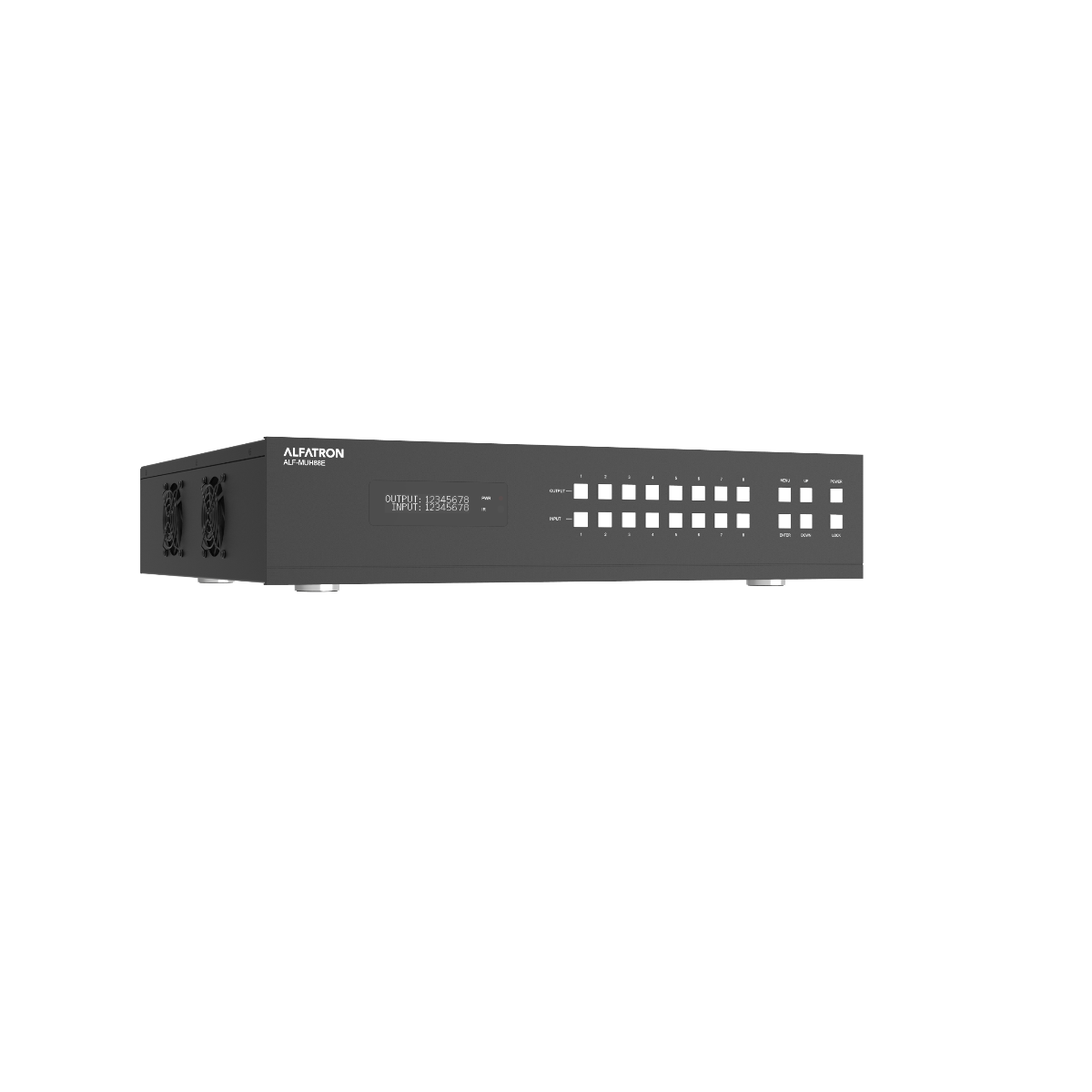

The ALF-MUH88E 18 Gbps 8x8 HDBaseT (492 ft / 150M) Matrix can connect 8 HDMI sources to 16 displays. It features 8 HDMI outputs, and each HDMI output is mirrored to provide a CAT Cable output which runs simultaneously. The HDBaseT output can extend video transmission with a distance up to 492ft / 150m (1080p) via a single Cat 6/7 cable. The product supports video resolution up to 4K2K@60Hz 4:4:4 with a distance up to 328ft / 100m. Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to 1080P downscaled independently. The product supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end. The product provides an intuitive set of front panel buttons with OLED screen, and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
