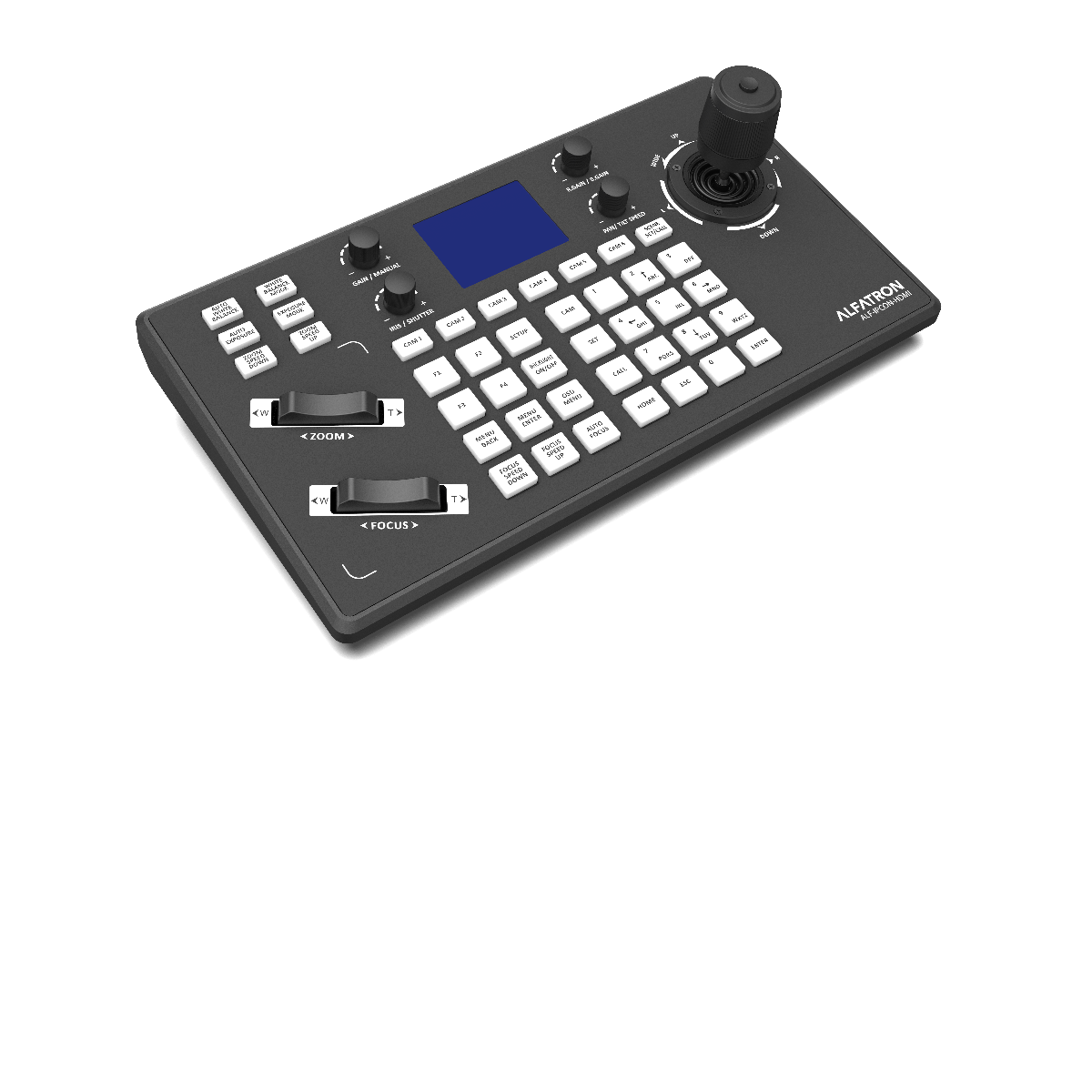

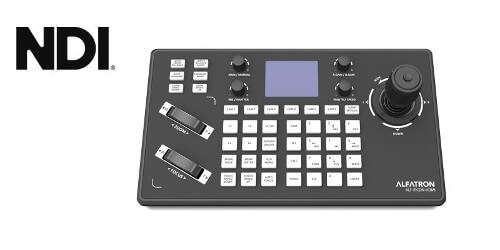

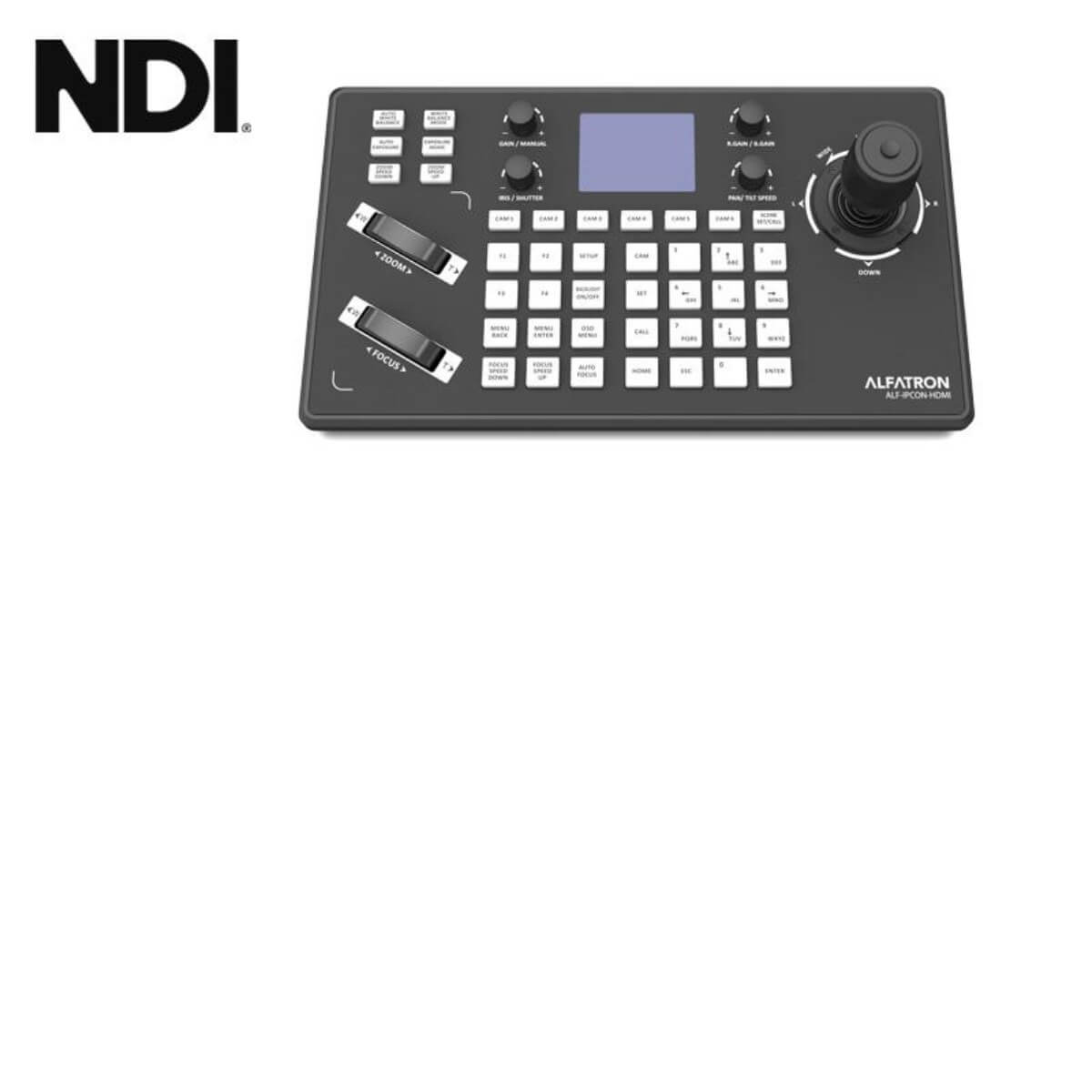

Alfatron ALF-IPCON-HDMI
PTZ Camera joystick controller via LAN, RS232, RS422 And NDI , With HDMI out to preview Image
- Supports both network and analog control modes, with an independent IP address in network
- Supports network protocols: Onvif, Visca over IP (UDP), Visca over IP (TCP), Sony Visca, NDI, and analog protocols: Visca, Pelco-D, Pelco-P.
- Supports HDMI video output, allowing the controller to provide real-time output of the camera feed (1080P/30Fps) during camera
- Supports a four-axis joystick for precise control of the cameras pan-tilt, enabling simultaneous movement across horizontal, vertical, and zoom
-Chad R.
Description
The ALF-IPCON-HDMI can connect up to 255 cameras via either analog mode or network mode. It supports various control protocols, allowing each numbered camera to independently set its control protocol. Network protocols: Onvif - Visca over IP (UDP) - Visca over IP (TCP) - Sony Visca - NDI - and analog protocols: Visca - Pelco-D - Pelco-P. Additionally, the network interface supports PoE 802.3af standard power supply. The device features a four-axis joystick for precise control of the cameras pan- tilt movements, enabling simultaneous motion across horizontal, vertical, and zoom functions. This product allows for independent and precise control of the cameras zoom and focus, with eight-speed levels to freely adjust zoom/focus speed. It supports connection to a PC for web control, where device configurations can be imported/ exported, camera settings can be added or modified, and device upgrades can be performed.
Specifications
- Supports independent and precise control of the cameras ZOOM and FOCUS, with eight-speed levels to freely adjust zoom and focus
- Supports connecting the device to a PC for web control, allowing for importing and exporting device configurations, adding or modifying camera settings, and performing device upgrades and other extended
- Supports PoE 3af standard power supply.
