SmartFit 6" Fire Rated Poke Through Floor Box - Brass
The FSR SF6-CPT-AVD-BRS is a 6" fire rated poke-thru floor box with brass cover for core holes provide an elegant look in any floor. The entire cover door swings open 180° and the two smaller cable access doors fold down for cable egress while the cover door is secure, the drop down cables access doors reduce trip hazards.

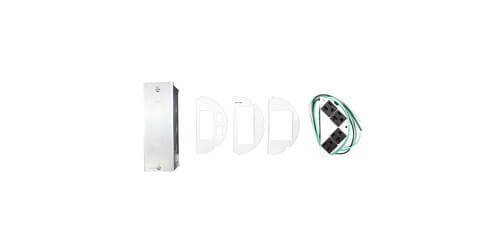

Includes: 6” floor fitting, one Decora and two keystone opening subplate, One 3 AAP subplate, One 5-IPS subplate, Four 20A pre-wired AC outlet subplate, Cover Assembly, and Junction box. Choose from the 4 half plates to create your own customized floor box perfect for your application.
Use the optional SF6-PT pre-pour sleeve first so you don't have to drill out the concrete after.
- 6" poke thru floor box for core holes
- Color: Brass
- 2 hour fire rated
- Knockouts: (1) 2" KO, and (1) 1.75" KO
- ADA compliant
- Scrub water rated
- Power wiring junction box included
- 1000 lb. cover load rating with 2x safety factor
- Cover is 7.5" round
