FOR-A ESG-4100

4K/HD Test Signal Generator (12G, 3G,SQD, 2SI), SDI Embedded Audio

Satisfaction Guaranteed!
Part #: ESG-4100
Your Price: $21,195.00
Quantity:
0 out of 5 based on 0 ratings.

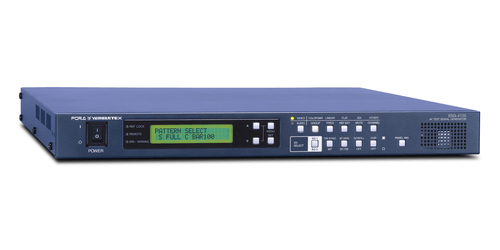

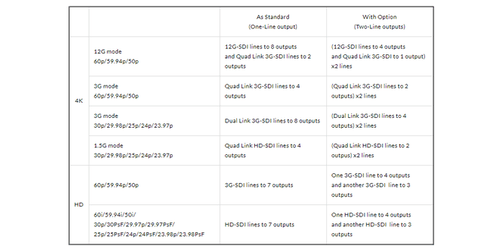

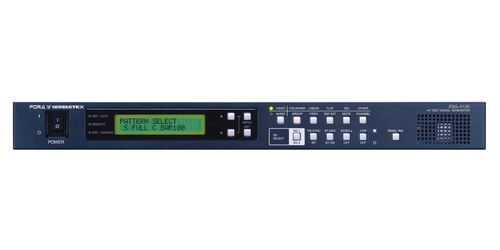

The FOR-A ESG-4100 is a test signal generator that generates 4K signals (UHD 3840 x 2160p, Full 4K 4096 x 2160p). 4K video signals that are output at 60p/59.94p/50p are able to be distributed from 12G-SDI lines to 8 outputs and Quad Link 3G-SDI lines to two outputs at the same time. Embeds 16-channel audio into 12G/3G-SDI or 3D/HD-SDI output. Equipped with two outputs for MADI signals. When using SG-2 option, the two lines are independently configurable.

The primary features of this unit include:

  • Versatile 4K Output Support
  • Two-Line Output
  • Wide Range of Standard and Custom Video Test Patterns
  • Colorimetry Switching
  • Test Pattern Scrolling
  • Character Display for time codes of channel numbers
  • Audio Test Signals
  • External Control, SNMP Monitoring
  • Genlock Capabilities



  • Video Output Resolutions: Up to 4K
  • Input/Output Interfaces: ESG-4100 Spec Sheet
  • Audio Formats: 48 kHz, 24-bit, 32 channels (AES3 Compliant)
  • Audio Outputs: 4K, HD, MADI
  • Ethernet Interface: RJ-45 x1, 10Base-T/100Base-TX
  • Video Output Patterns/Groups: Color Bar, Linear, Flat, SDI, Other
  • Audio Test Signals: Multiplexing groups, Audio Frequency, Audio Level, Audio Mute, Audio Channel
  • Power Consumption: 100V AC to 240V AC
  • Dimensions (WxHxD): 16.9" x 1.73" x 17.7"
  • Weight: 13.2 lbs
  • Included Accessories: AC Cord, Rack Mount Brackets, CD-ROM Operations Manual
  • Warranty: 1 Year
