48v DC 24 Watt PoE Gigabit Power Supply Injector

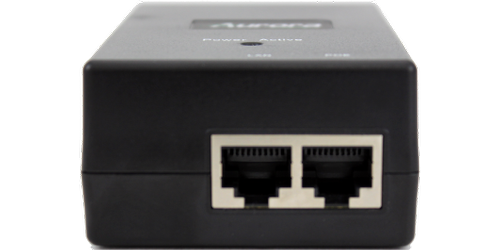

The PS0081-1-US from Aurora is a 48v DC 24 Watt PoE Gigabit Power Supply Injector. This device is used with the QTX-700 Series Touch Panel Controllers for situations for where there is no ability for a drop PoE connection. This power supply injector (PSE) will work with any standard PoE PDE device. Connection has been made simple with one LAN (connect to the network) and one PoE (connect to the device to be powered) RJ-45 jacks.
- Compatible Devices: QXT-700 Series Wall Mount Touch Panel Controllers
- Connectors: 1- RJ-45 LAN, 1 RJ-45 PoE (PSE) Output

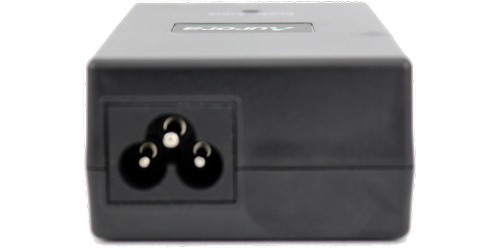

- Input Voltage: 90-254V AC 50/60Hz
- Output Voltage: 48V DC
- Output Current: 500mA
- Power: 24 Watts
- Dimenstions: 3.59" x 2.32" x 1.32"
- Warranty: 3 Years
