HDMI Over AnyWire 1080P Receiver

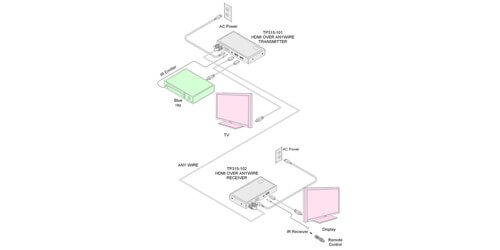

The Altinex TP315-102 recevier sends your HDMI signal to the sold separately TP315-101 transmitter over any 2-wire or 2-conductor cable. Using any 12 gauge to 24 gauge wire you can send your 1080P60 signal up to 900' away with only a .7 second delay in transmission. What makes the AnyWire system unique is that your cables need no special connectors, simply expose a little bare wire and connect them to the red and black screw terminals (either wire to either terminal). Installation takes seconds, the transmitter scans for the receiver and automatically pairs and starts playing your video. There is also a local HDMI video output for a monitor so the user on the transmitter side to know what is being displayed on the other side of the installation.

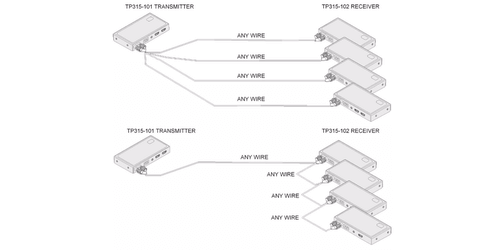

A single transmitter is capable of driving up to 4 receivers using either 4 individual wire pairs over 900' each, or by daisy chaining the receivers. The only restriction being the wire pair from the transmitter to each receiver cannot be bundled together as crosstalk will occur. IR pass through is allowed from the receiver to the transmitter, both the transmitter and receiver include an emitter.
The Altinex TP315-102 receiver can send your HDMI signal over any cable with no specific connections or splicing required.
- HDMI over 2 wire or 2 conductor cable, 12 gauge to 24 gauge
- Resolution: 1080P 60Hz
- Distance: 900'
- IR pass through
- One transmitter signal can be sent to up to 4 receivers
- HDCP compliant
- Fixed EDID
- Dimensions: 6.73" x 3.51" x 1.05"
- Weight: 1.0lbs
- Warranty: 3 years
