PTZ Optics PT-PRODUCER-12X
12X-SDI, 1080p, PTZ Live Streaming Camera Kit, Gray
Now featuring the PTZ Optics PT-PRODUCER-12X Live Streaming Camera Kit. This amazing all-in-on system has been designed to offer a complete package for a live streaming package, that has been built around Intel's ground breaking NUC Skull Canyon Micro-PC. This system comes with a 12X optical zoom 3G-SDI camera that ensures television quality video production at an extremely affordable price. With hundreds of potential video angles made possible with PTZ cameras and the included 3D PTZ Joystick this system will make any venue your next live streaming destination. These PTZ Optics Producer Kits come with the NewTek Connect Pro App that allows users to make their cameras NDI (Network Device Interface) ready. NDI offers a single, interconnected production environment, where any device can connect to every other device–and every source is also a destination–live production has limitless possibilities. Furthermore this Kit comes ready to be used with your favorite software (SOFTWARE NOT INCLUDED); OBS, xSplit, Wirecast, vMix or the NewTek Connect Pro App. Stream with the Pros and publish your live video streams with RTSP or RTMP using a CDN or a enterprise streaming server to places like Youtube, Facebook Live, Wowza, Akamai and more.
The PT-Producer-12X Kit Features these main components:

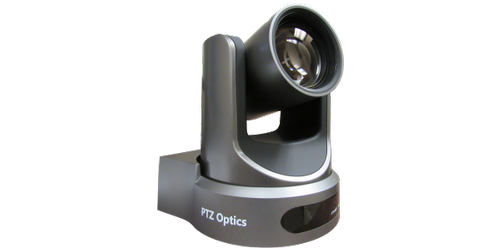

PTZ Optics PT12X-SDI-GY-G2 Camera - This camera offers extremely high quality pan, tilt, and 12x zoom (PTZ) with IP streaming. The generation 2 models new features include opens source IP control software, Android camera control app, and 16 professional virtual sets including TriCaster, vMix, WireCast, and more. The connections are HD-SDI, HDMI, and RJ-45 IP streaming, all 3 will stream simultaneously. The IP stream sends your video and embedded audio over Cat5e/6 cable, it allows dual streaming via one high definition and one standard definition source. You can control the unit via the remote, RS-232, free Android app, or from a web browser with an easy to use GUI, with 255 presets PTZ Optics has all your control needs covered.

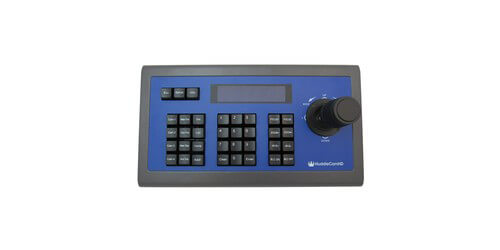

HuddleCamHD HC-JOY-G2 Joystick Controller - is an easy to use joystick controller for your RS-232 VISCA protocol cameras, up to 255. The controller offers variable pan, tilt, and zoom with your choice of 255 presets and 4 camera quick select buttons. The joysticks can also twist to control focus and zoom, all this while the easy to read LCD screen gives instant visual status feedback. The HC-JOY-G2 is an affordable solution if you need to control several cameras from a remote location.

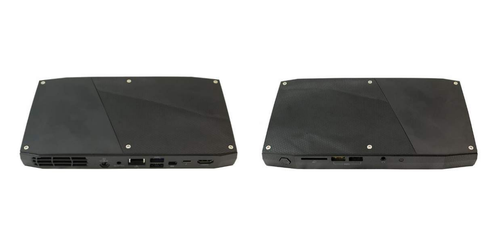

Intel NUC-i7-G2 Scull Canyon NUC - This amazing 6th generation Intel Core i7 processor with Intel Iris Pro Graphics, is an amazing processor that gives users maximum performance and the ability to edit and render 4K video. Thunderbolt 3 technology connects you up to 3 4K displays and allows you to ramp your graphics performance with external graphics cards, or transfer your data to and from an external drive at an incredible 40 Gbps. It offers four USB 3.0 ports with one SDXC slot, Two M.2 slots with flexible support for a 42 or 80 mm SATA or PCIe SSD, and Intel Dual Band Wireless-AC 8260 and Bluetooth 4.2.

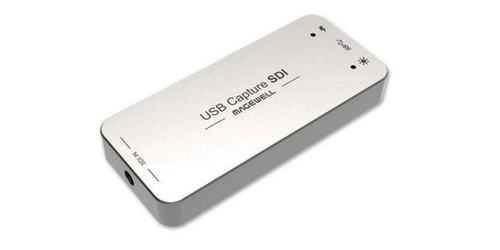

Magewell USB Capture SDI Dongle - This handy unit gives users the ability to record or stream a 3G-SDI signal via USB 3.0. By using a 3G-SDI input, this capture device has the ability to accept resolutions up to 1920 x 1200 at 60p. Additionally if there is a specific resolution you need to stream or record at, the XI100 will internally up or down convert the input signal to the set resolution. It can also perform frame-rate conversion and de-interlacing in real-time with its own hardware, which takes the processing load of your computers CPU.

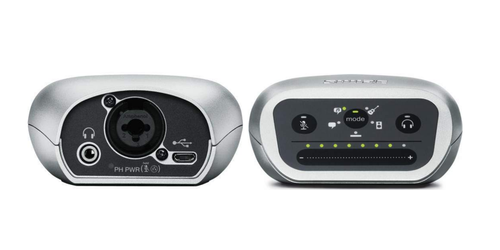

Shure MVi-LTG - The Shure Brand MVi digital audio interface offers content creators professional-quality audio recording in the studio and on the go. There are five onboard DSP recording presets that allow you to quickly dial in the right sound for your project. Additionally it includes the ShurePlus MOTIV iOS app for ehanced recording, editing, and sharing. A combination microphone/instrument input and zero-latency headphone connector is housed in a rugged, all-metal construction that delivers great-sounding recordings.
- The PT-Producer-12X Live Streaming Kit Comes with PT12X-SDI-GY-G2 Camera, HC-JOY-G2 Joystick Controller, Intel NUC-i7-G2, Magewell USB Capture SDI Dongle, Shure MVi-LTG, 100' 3GSDI Cabling, 100' RS-232 Cabling
- Comes With a 3 Years Warranty
- PT12X-SDI-GY-G2 Camera Specs:
- Zoom: 12X optical, 16x digital
- Field of View: 72.5 degrees

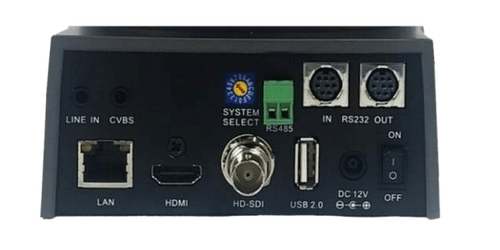

- Connections: HDMI, HD-SDI, RJ-45 IP H.264 streaming (all 3 simultaneous)
- Resolution: 1080P
- Pan 170 degrees, Tilt up 90 degrees and down 30 degrees
- For Additional Camera Specs Click Here
- HC-JOY-G2 Joystick Controller Specs:
- Cameras: Up to 255
- Presets: 255
- 3-Axis Joystick
- Distance: Up to 3,937' over Cat5
- Control: Variable speed PTZ, iris, focus
- Camera switching hot keys
- For Additional JoyStick Specs Click Here
- Intel NUC-i7-G2 Specs:
- 6th generation Intel Core i7-6770HQ processor (2.6 GHz up to 3.5 GHz Turbo, Quad Core 6MB cache, 45W TDP)
- Dual-channel DDR4 SODIMMs, 32GB maximum
- Intel Iris Pro graphics 580
- One Thunderbolt 3 port, One Display Port via USB-C
- Four total USB 3.0 ports with one SDXC slot
- For Additional Intel NUC-i7-G2 Specs Click Here
- Magewell USB Capture SDI Specs:
- Input Interface: 1 MCX Interface
- Host Interface: USB 3.0 (300-350MB/s Throughput) / USB 2.0 (40MB/s throughput)
- Resolution: Up to 1920 x 1080
- SDI Formats: Up to 3G-SDI
- On-board Memory: 64MB DDR2, the work rate is 300 MHz, the bit width is 16 bits
- For Additional Magewell Specs Click Here
- Shure MVi-LTG Specs:
- Flexible 24-bit/48kHz USB recording interface for your computer or mobile device
- Onboard DSP presets for speech, singing, flat, acoustic instrument, and loud sources onboard
- Class A microphone preamp delivers clear sound and phantom power for studio condensers
- Integrated headphone output provides real-time, low-latency monitoring
- Includes micro-USB to USB cable for use with Mac, Windows PC, and Android devices
- Includes micro-USB to Lightning cable for use with iOS devices
- For Additional Shure MVi-LTG Specs Click Here
