 Home > Auto Switchers -> Auto Switching Wall Plates -> Zigen -> ZIG-POEWP-100 HDMI & VGA Auto Switching Wall Plate, 4K, HDBaseT Out - 328'

Zigen ZIG-POEWP-100
HDMI & VGA Auto Switching Wall Plate, 4K, HDBaseT Out - 328'

Part #: ZIG-POEWP-100
Satisfaction Guaranteed!
Our Price: $399.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top ZIG-POEWP-100 Specifications
  • Size: 2 gang
  • Includes wall plate
  • Color: White
  • Resolution: Up to 4K/2K, 30Hz 24bpp. 4K/2K, 60Hz, 24bpp with 4:2:0 pixel format
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008

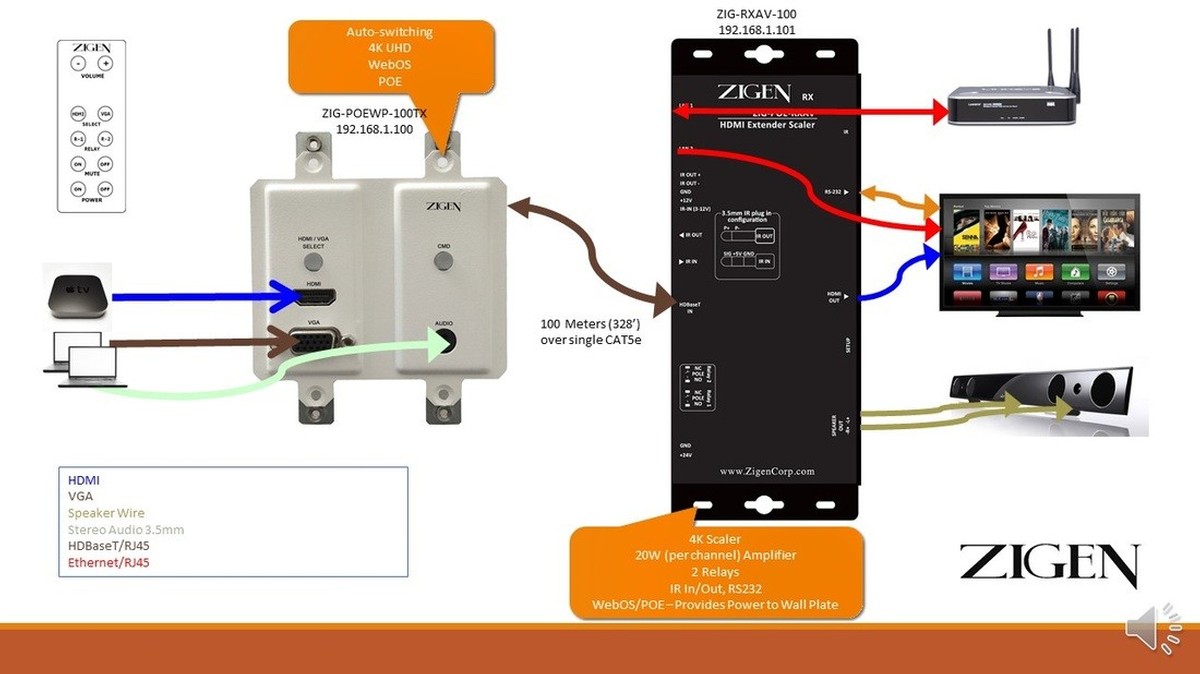

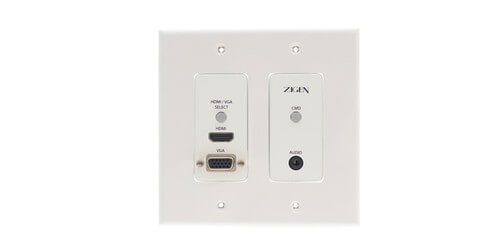

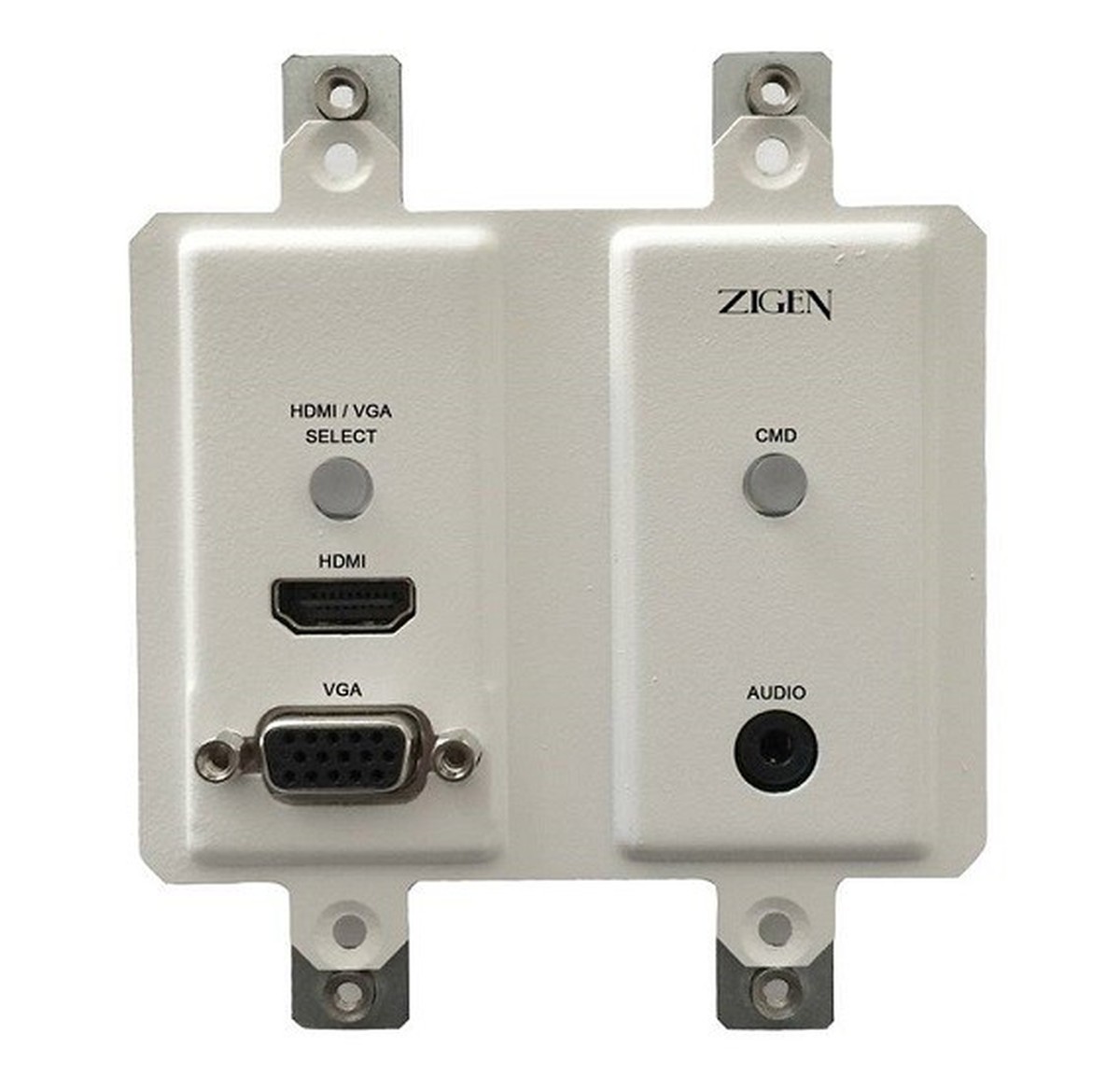

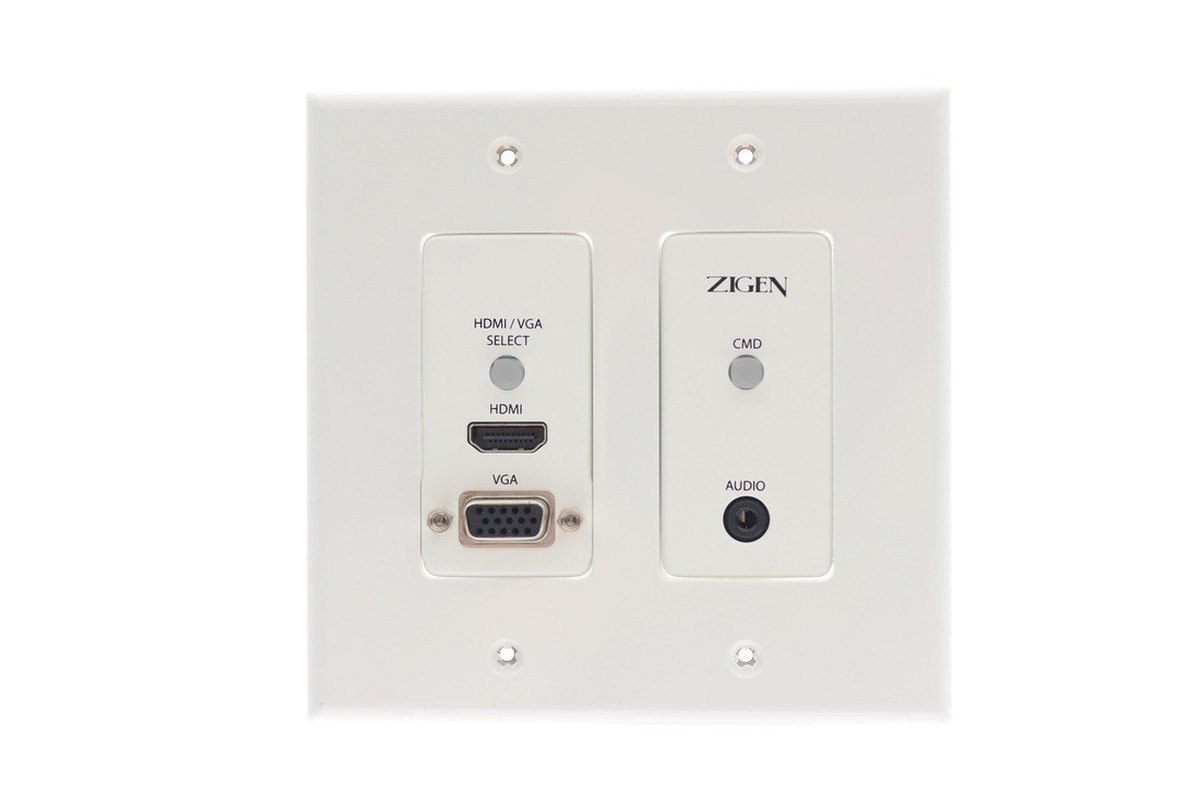

The Zigen ZIG-POEWP-100 is a wall plate that features 1 HDMI, 1 VGA, and 1 audio connection that auto switches based on input detection.   The signal gets sent out over an Ethernet cable via the integrated HDBaseT transmitter up to 328' away.  The wall plate can send out resolutions up to 4K to compatible receivers such as the 4K ZIG-RXAV-100.  The wall plate also has a button to manually select the source, there is an additional control button on the wall plate that can be used to control a device such as TV power on and off.

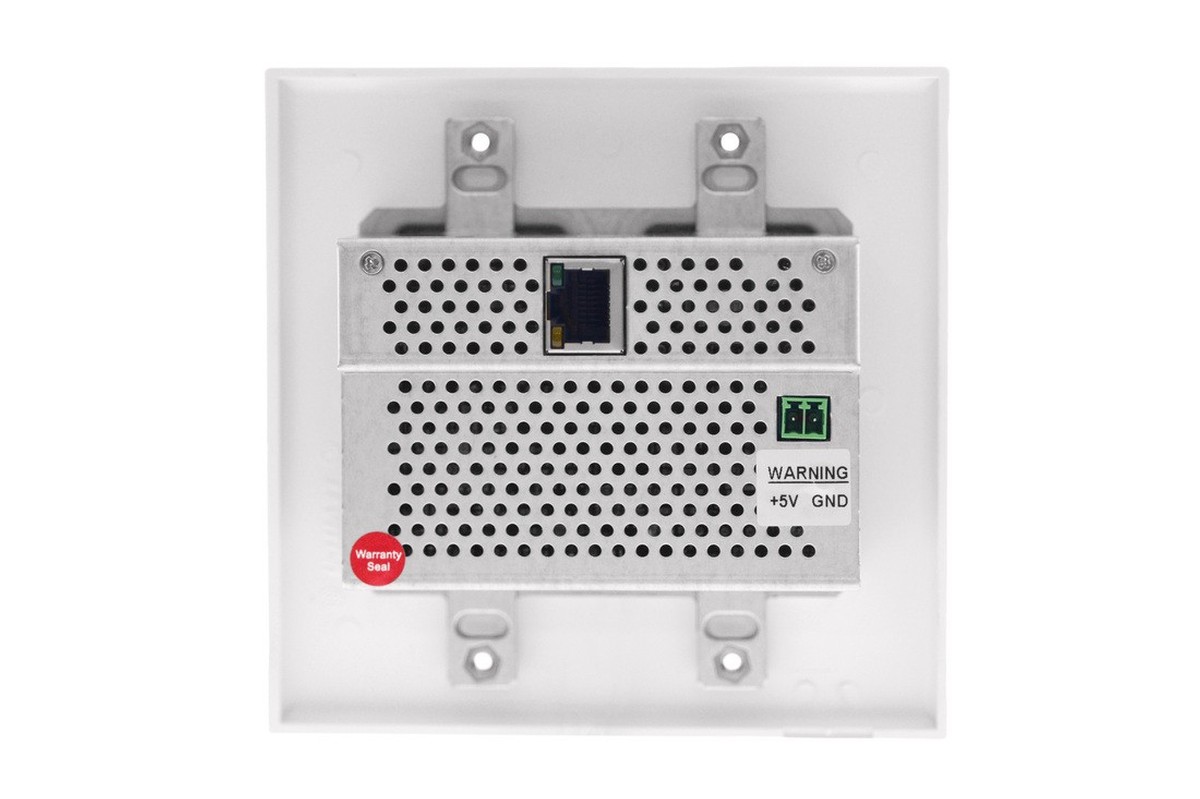

The unit can receive PoE from a compatible receiver so no power outlet is required, it can also be powered locally with an optionally purchased power supply.  The wall plate can also be controlled via IR, RS-232, and a web control panel.

The Zigen ZIG-POEWP-100 is an affordable auto switching multi-format wall plate for your conference room, classroom video and audio distribution needs.



  • Distance: 328' @ 2160P60 4:2:0 8-Bit
  • HDCP 2.2
  • HDMI 2.0
  • Bandwidth: 10.2Gbps
  • Receives PoE
  • Video: Up To Ultra HD (2160P60 4:2:0 8-Bit)
  • Audio: Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more
  • Control: RS-232, IR, Web OS
  • Warranty: 3 years
