WyreStorm TX-SW-IW-0201-KIT
In-Wall Auto-Switching HDBaseT Transmitter/Receiver Kit
- Audio and Video
- Transmitter Inputs: 1x HDMI 19-pin type A female / 1x VGA In 15-pin VGA VESA (D-SUB 15) / 1x Audio In 3.5mm (1/8in) Stereo Jack
- Receiver Input: 1x HDBaseT 8-pin RJ-45 female

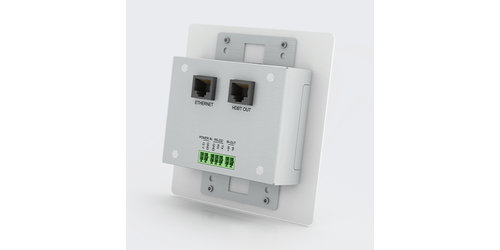

- Transmitter Output: 1x HDBaseT 8-pin RJ-45 female
Description

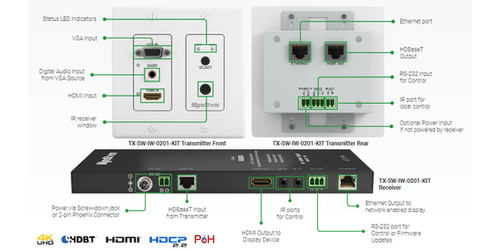

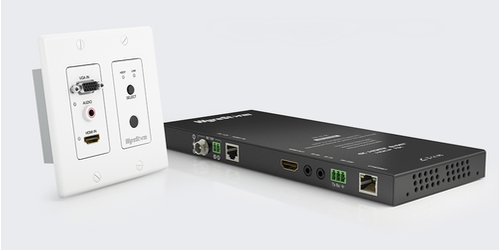

Wyrestorm's TX-SW-IW-0201-KIT in-wall transmitter and receiver kit features front-facing HDMI and VGA inputs set into a 2-gang wall plate for concealed connectivity and control. The included HDBaseT receiver can be placed up to 328 feet away carrying video, audio, and control signals whilst delivering power back to the transmitter.

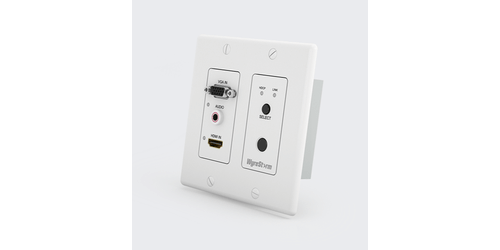

The TX-SW-IW-0201 has both HDMI and VGA and audio inputs with automatic input detection for zero user interaction. A source selection button is also on the front to manually switch when both ports are occupied. Should the connected TV or Projector be out of reach of the remote, the built-in IR window can receive commands and send them over HDBaseT to the receiver location. The in-wall transmitter can be powered from the included WyreStorm receiver or any WyreStorm matrix or switcher with a HDBaseT input.
Specifications

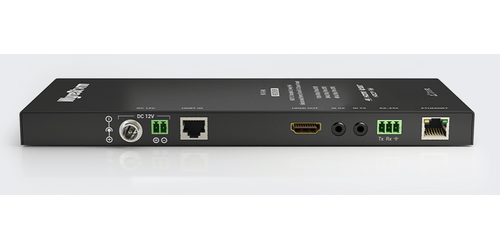

- Receiver Output: 1x HDMI 19-pin type A female
- Audio Formats: 2ch PCM | Up to 7.1 DTS Master HD and Dolby TrueHD
- Video Resolutions (Max) Video Resolutions
- 1920x1080p @60Hz 12bit
- 1920x1080p @60Hz 16bit
- 1920x1080p @60Hz 8bit
- 3840x2160p @30Hz 8bit 4:4:4
- 4096x2160p @60Hz 8bit 4:2:0
- Supported Standards: DCI | RGB
- Maximum Pixel Clock: 297mHz
- Communication and Control
- HDMI: HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
- HDBaseT: HDCP 2.2 | EDID | 1-way PoH (RX to TX) | Bidirectional IR and RS-232, and Ethernet
- Ethernet: 1x Ethernet: 8-pin RJ-45 Female | Bidirectional over HDBaseT
- RS-232: 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseT
- IR: 1x IR Out 2-pin Screw Down Phoenix Connector / 1x IR TX 3.5mm (1/8in) TS Mono | 1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT
- Power
- Power Supply: 12V DC 1A
- PoH: 48V 15.4W
- Max Power Consumption: TX: 3.4W | RX: 7.2W | TX and RX: 10.6W
- Transmitter Dimensions and Weight
- Rack Units/Wall Box: 2-gang
- Height: 108mm/4.26in
- Width: 106.7mm/4.21in
- Depth: 25mm/0.99in
- Weight: 0.41lbs

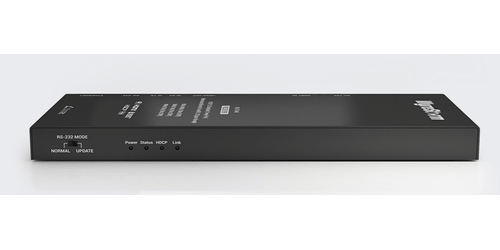

- Receiver Dimensions and Weight
- Rack Units/Wall Box: <1U
- Height: 18mm/0.71in
- Width: 232mm/9.14in
- Depth: 93mm/3.67in
- Weight: 0.5kg/1.1lbs
- Regulatory Safety and Emission: CE | FCC | ROHS
- Warranty: 5 years
