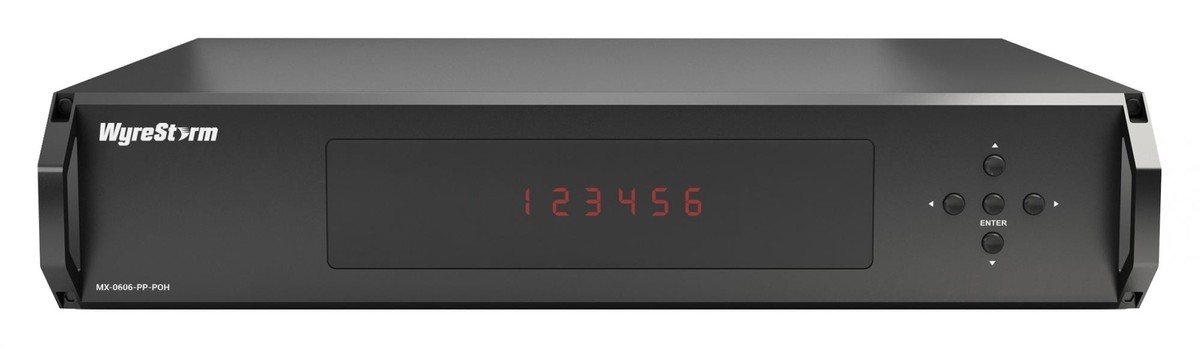

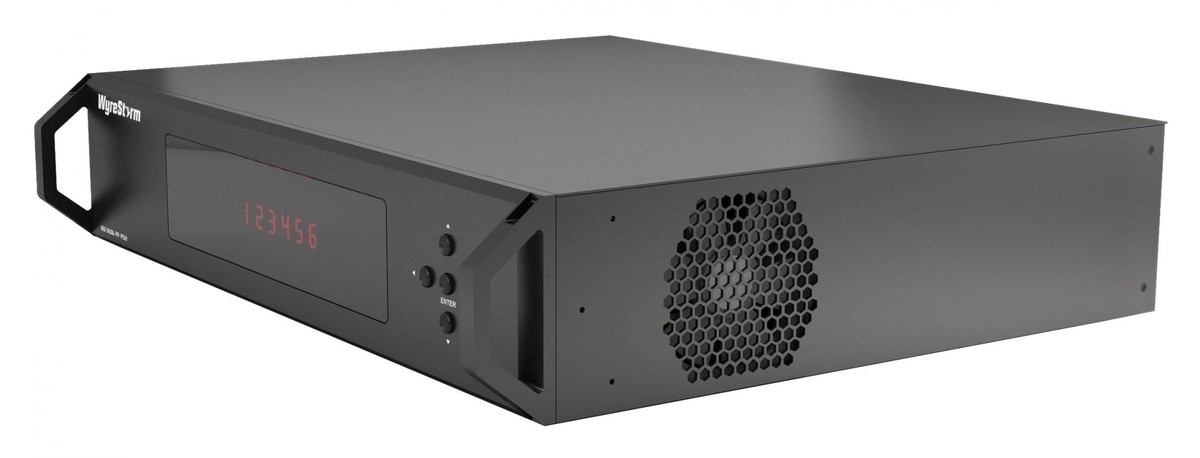

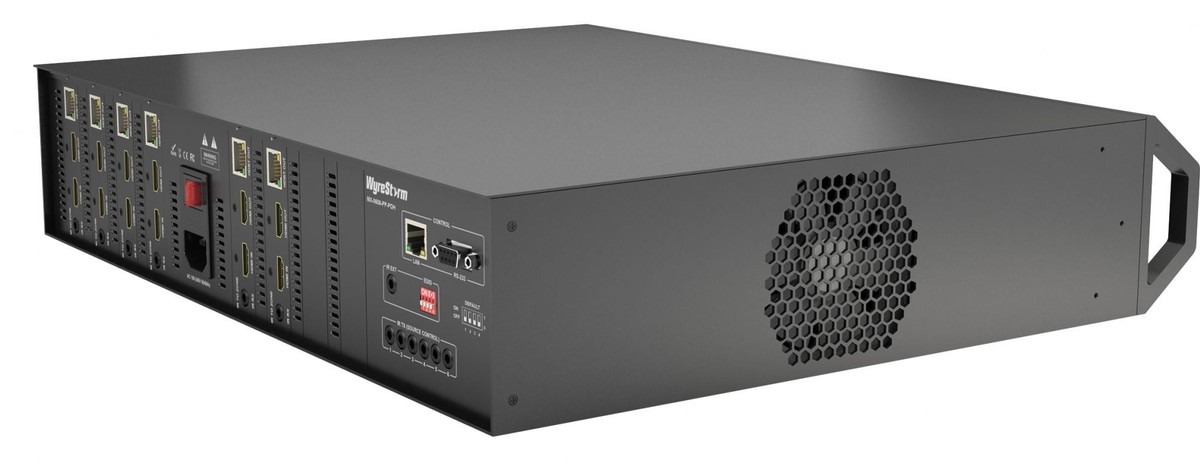

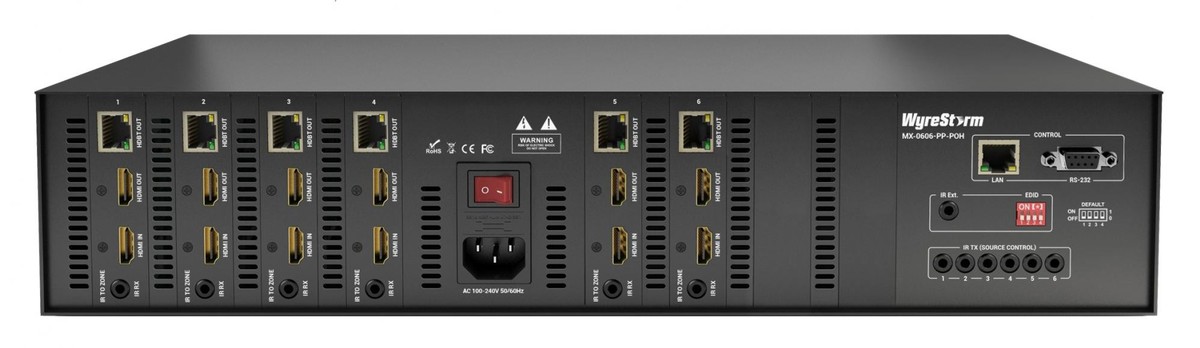

WyreStorm MX-0606-PP-POH
6X6 HDMI to HDBaseT or HDMI 1080P Switcher w/ IR, RS-232

Part #: MX-0606-PP-POH
Satisfaction Guaranteed!
Our Price: $2,915.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $100 Off!
Top MX-0606-PP-POH Specifications
  • 6X6 matrix switcher
  • Inputs: 6 HDMI
  • Outputs: 6 HDMI, 6 HDBaseT
  • Resolution: 1080P with 36 bit deep color
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The WyreStorm MX-0606-PP-POH is a 6x6 1080P matrix switcher, it features 6 HDMI inputs and your choice of 6 HDBaseT or HDMI outputs.  You can not only send video but embedded HD audio, 2-way IR and RS-232 for a complete solution. Power is also sent to compatible receivers, up to 230' for a 1080P signal using Cat6a/7 cabling. The matrix supports enhanced EDID management, 3D pass through, and is HDCP compliant.  The matrix switcher can be controlled via the front panel, IR (includes remote control), RS-232, and LAN via Telnet or Web GUI.

The MX-0606-PP-POH is an affordable 6x6 matrix switcher with a huge list of features.  The matrix switcher is flexible with the ability to output via HDMI or HDBaseT.  Use the HDBaseT when you have a long run or also need to send IR, RS-232, and power.

Specifications

  • Sends: Video, HD audio, 2-way IR and RS-232, and power to receivers
  • Distance: Up to 230' for 1080P with Cat6a/7 or 197' with Cat5e/6
  • IR: 6 transmitter and 6 receiver
  • 1 LAN
  • Supports: HDCP, EDID, 3D Control: Front panel, IR, RS-232, and LAN via Telnet or Web GUI
  • Includes: 6 IR receivers, 6 IR emitters, 1 IR RX extension cable, power supply, rack mounting brackets, remote control, PC control software
  • Dimensions: 17.3'' x 3.9'' x 13.4'' (rack mountable)
  • Weight: 14.74lbs
  • Warranty: 5 years
