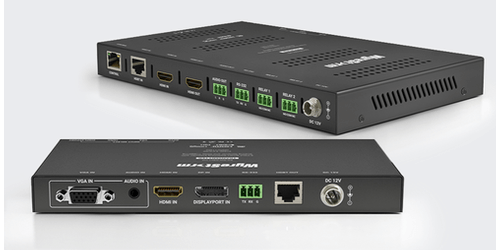

WyreStorm EX-SW-0301-H2
HDMI/VGA/DP Switching Extender with Scaling Receiver
Part #: EX-SW-0301-H2
This product has been discontinued
Suggested Replacement:
Top EX-SW-0301-H2 Specifications
- Audio and Video

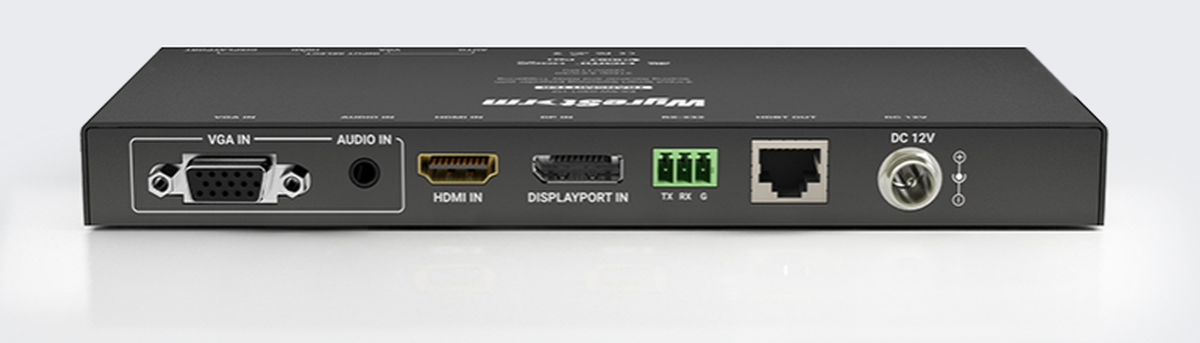

- Transmitter Inputs: 1x VGA In: 15-pin VGA / 1x Display Port In: DisplayPort 1.3 / 1x HDMI In: 19-pin type A
- Receiver Inputs: 1x HDMI In: 19-pin type A / 1x HDBT In: 8-pin RJ-45 Female
- Transmitter Outputs: 1x HDBT Out (Class A): 8-pin RJ-45 Female Receiver Outputs: 1x HDMI Out: 19-pin type A / 1x Audio Out: 3-pin Phoenix
"Excellent and prompt call back from customer service!"
-Maciej Z.
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Wyrestorm's EX-SW-0301-H2 is a switching extender with a scaling receiver, relay triggering, and HDCP 2.2 support. This switching extender supports 4K/60 content and accepts both HDMI and DP sources, featuring a VGA and audio input. The EX-SW-0301-H2 can switch to an HDMI secondary input, which allows users to connect to a signage player or satellite receiver. This switcher extender is compatible with Chromecast and AppleTV streaming devices.
Wyrestorm's switching extender is ideal in education, government, and corporate settings. The receiver automatically scales content to match the TV or projector's capabilities, making this a convenient option for meeting rooms that require presentation elements.
Specifications
- Output Video Encoding: HDBaseT Class B
- Encoding Data Rate: 9.2Gbps
- End to End Latency: 10 s (micro seconds)
- Audio Formats: 2ch Analog/PCM | Multichannel: LPCM
- Video Resolutions (Max) Video Resolutions: 1920x1080p @60Hz 12bit / 1920x1200p @60Hz 12 bit / 3840x2160p @30Hz 8bit 4:4:4 / 4096x2160p @60Hz 8bit 4:2:0
- Video Resolutions
- HDMI: 15m/49ft / 15m/49ft / 7m/23ft / 7m/23ft
- Cat6: (60m/197ft) / (60m/197ft) / (35m/115ft) / (35m/115ft)
- Cat6a/7: (70m/230ft) / (70m/230ft) / (40m/131ft) / (40m/131ft)
- Supported Standards: DCI | RGB Maximum Pixel Clock: HDMI: 600mHz | HDBaseT: 297MHz
- Communication and Control
- HDMI: HDMI | HDCP 2.2| EDID | DVI/D supported with adapter (not included)
- HDBaseT: HDMI | HDCP 2.2 | EDID | 1-way PoC Receiver to transmitter
- RS-232: 1x RS-232: 3-pin Phoenix (Transmitter and Receiver)
- Ethernet: 1x 8-pin RJ-45 female | IP Control (TELNET)
- Relays: 2x Relay: 3-pin Phoenix (Receiver Only)
- Power
- Power Supply: 12V DC 3A
- Max Power Consumption: Transmitter: 7W | Receiver: 17W
- PoC: IEEE 802.3af 15.4 W Max
- Maximum BTU: Transmitter: 24 BTU/hr | Receiver: 58 BTU/hr
- Transmitter Rack Units | Wall Box: <1U
- Transmitter Height With | Without Feet: 1.72in
- Transmitter Width With | Without Brackets: 7.64in
- Transmitter Depth With | Without Handles: 3.71in
- Transmitter Weight: 1.1lbs
- Receiver Rack Units | Wall Box: <1U
- Receiver Height With | Without Feet: 0.99in
- Receiver Width With | Without Brackets: 8.78in
- Receiver Depth With | Without Handles: 2.93in
- Receiver Weight: 1.1lbs
- Regulatory Safety and Emission: CE | FCC |RoHS
- Warranty: 5 years
