Williams Sound AN C5P
Annotation Pro Plus - Video Processor, Live Video Annotation, HDCP

Part #: AN C5P
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top AN C5P Specifications
  • Video Input: HDMI up to 3840 x 2160 @ 24/25/30 fps
  • Video Output HDMI up to 3840 x 2160 @ 60 fps

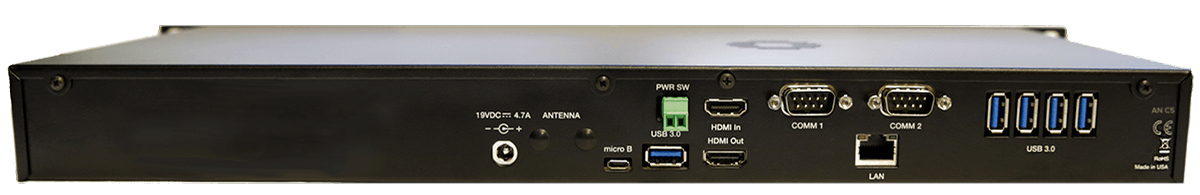

  • USB (5) USB 3.0 ports, plus (1) USB B-Micro port
  • HDCP Compliant
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008

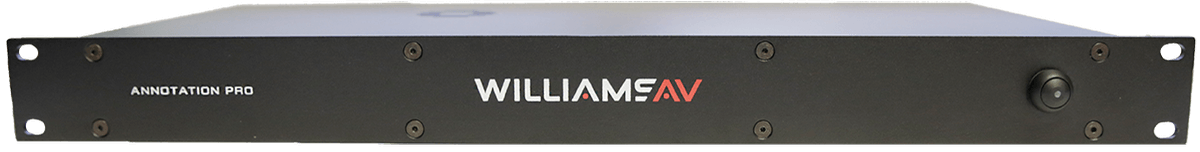

The AN C5P Annotation Pro Plus by Williams AV is the next generation in broadcast quality video annotation systems! Providing the ability to annotate live over video content at resolutions up to 4K, presentations have never looked so brilliant.

The Annotation Pro Plus includes support for HDCP.

Additional features include the ability to connect USB sources, such as cameras, with live, full motion annotation with zero latency, as well as a Picture -in-Picture mode where multiple sources can be viewed simultaneously and annotated upon. Capturing your presentation is as simple as selecting the record button on the toolbars and recording all content as well as annotations directly to a USB Drive or a network storage device. Additionally, users can capture still images of the presentation for storage or send directly to any network printer for documentation.

The Annotation Pro Plus is the ideal piece to add to any meeting space when making an impactful presentation is a must!

Can be integrated into a variety of audio/visual systems; including:

  • Courtrooms
  • Operating Rooms
  • High-end Presentation Stages
  • Control Centers
  • Sports Coaching Facilities


  • Power Source TFP 060 - 19VDC 4.7A (center positive)
  • Temp Operating Requirements 32 F to 122 F (0 C to 50 C)
  • Dimensions: 19" (W) x 1.75" (H) x 8.2" (D)
  • Weight: 5 lbs. (2.3 kg)
  • Approvals: CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE
  • Warranty: Two (2) year, parts and labor
