Presentation Switchers IN600
Modular Enclosure Blank Plate for Modular Presentation Switchers
Part #: IN600
This product has been discontinued
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top IN600 Specifications
- Device: Blank Input Plate Cover
- Compatible Devices: PS600 Series from Presentation Switchers
- Certifications: CE, RoHS
- Dimensions (HxWxD): 3" x 1.2" x 5.4"
"Very convenient and great customer support."
-Lynn Y.
-Lynn Y.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

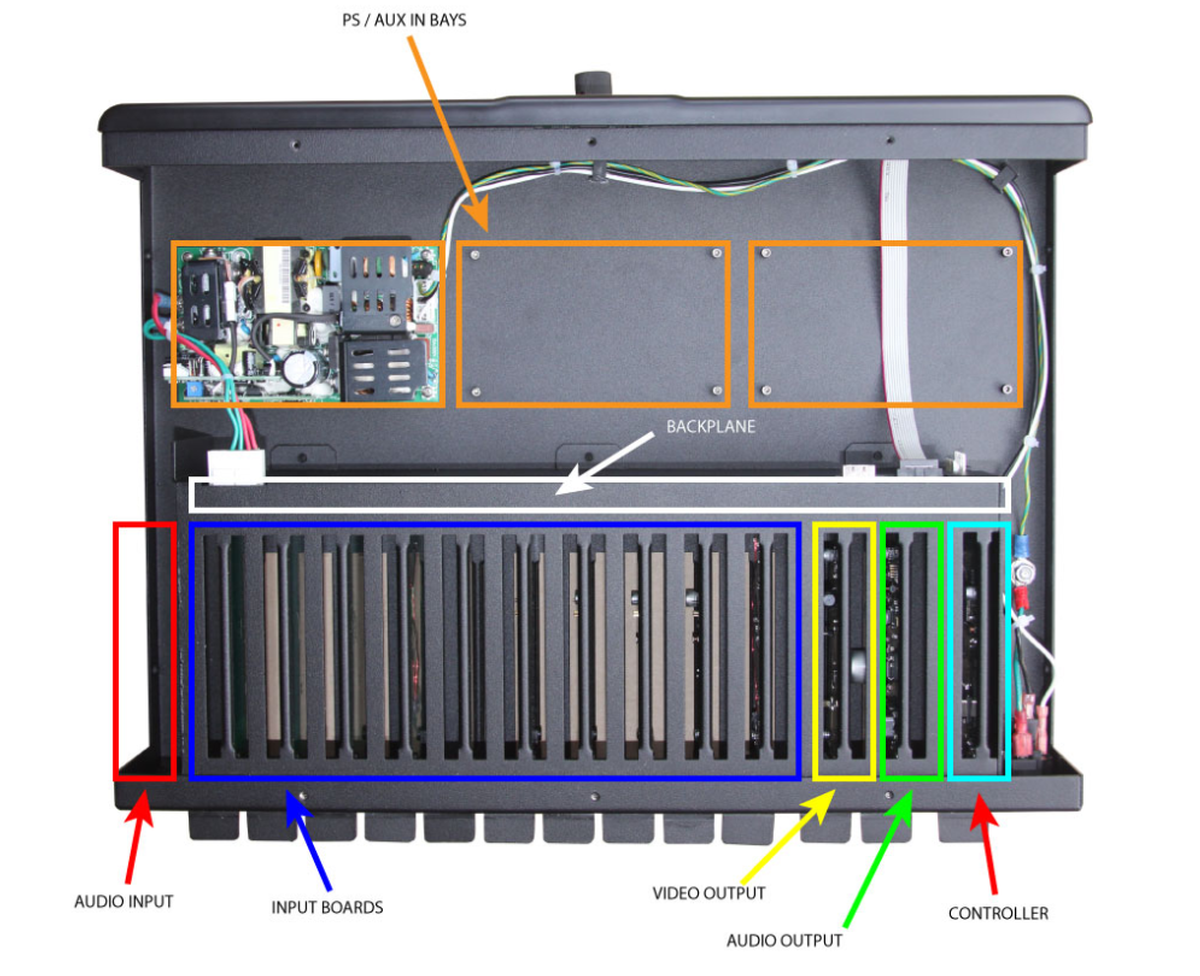

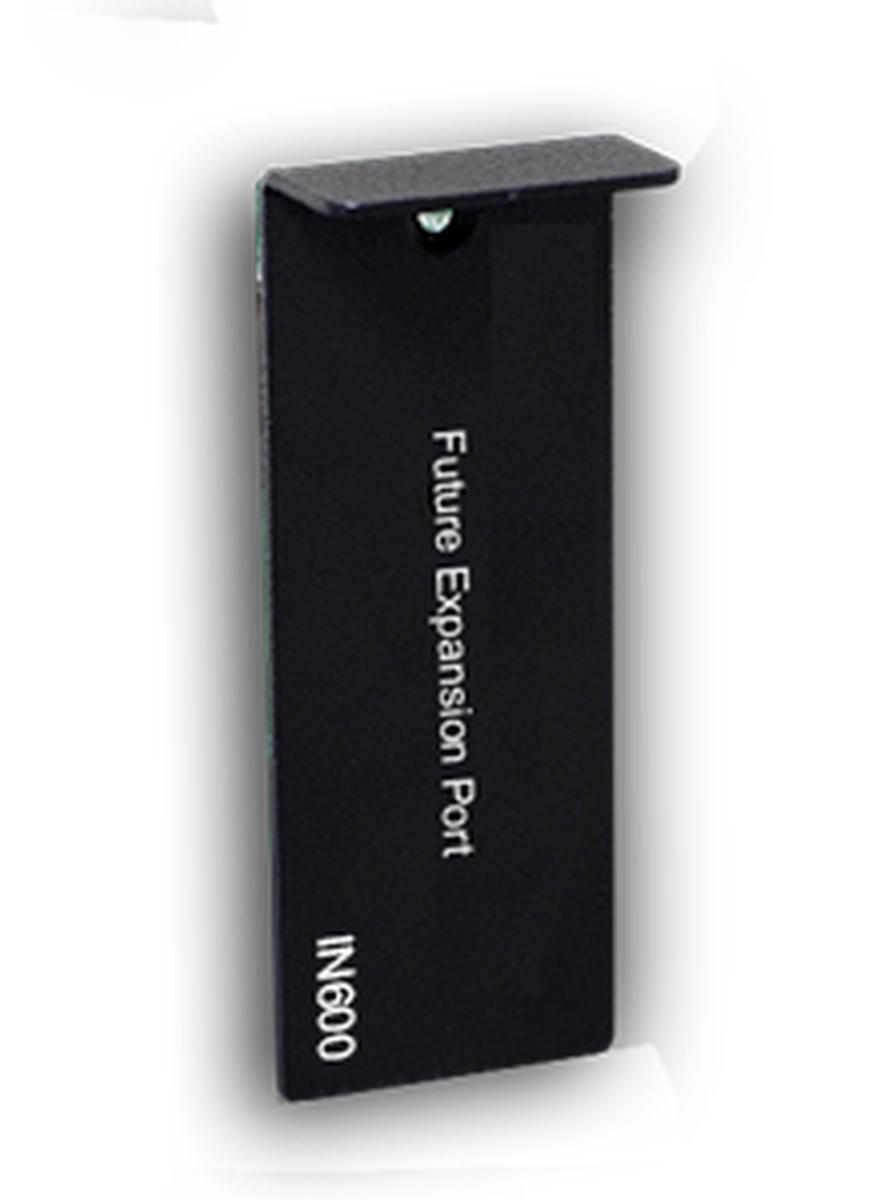

The IN600 is a Blank Input Plate Assembly for the Modular PS600 Series such as the 10x2 (PS650) and 10x1 (PS630) Presentation Switchers. This blank plate cover is used to reserve a space for future expansion in you Presentation Switcher system, and provides a single screw to easily secure the unit to the modular enclosure.
INSTALLATION
Installation is quick and painless. UNPLUG THE POWER CORD ATTACHED TO THE ENCLOSURE. Simply remove the single mounting screw that holds the previous card. After removing the old input board, insert the new IN600 plate. Replace the screw and reattach the power cord. The system automatically recognizes the removal of the old board so no further activity is required.
Specifications
- Weight: 0.50 lbs
- Warranty: 3 Years
