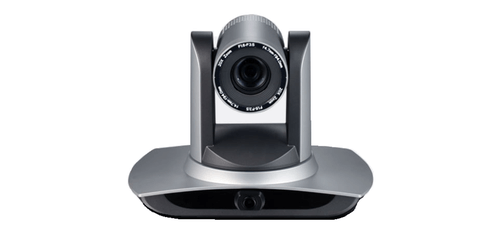

Minrray UV150T-12
Educational Teacher Binocular Camera, 12x Optical Zoom

Description

The UV150 series camera is an educational teacher binocular camera. The UV150T-12 features a 12x zoom lens and a high-speed processor with advanced image processing, as well as algorithm analysis to accurately track lecturer. The advanced image processing algorithm enables high-resolution, accurate depth, and vivid colors.

Additionally, this camera features a panoramic function that also provides tracking capabilities. It supports 8,000, 16,000, 32,000, 44,100, and 48,000 sampling frequency, as well as AAC, MP3, and G.711A audio coding. This camera also uses a high-quality CMOS sensor that ensures the camera performs quietly, with a high signal-to-noise ratio. Other key features of this camera include the following:

• Panoramic camera with advanced tracking capabilities
• 72.5-degree wide-angle view
• Auto-focus algorithm for fast, accurate, and stable focusing

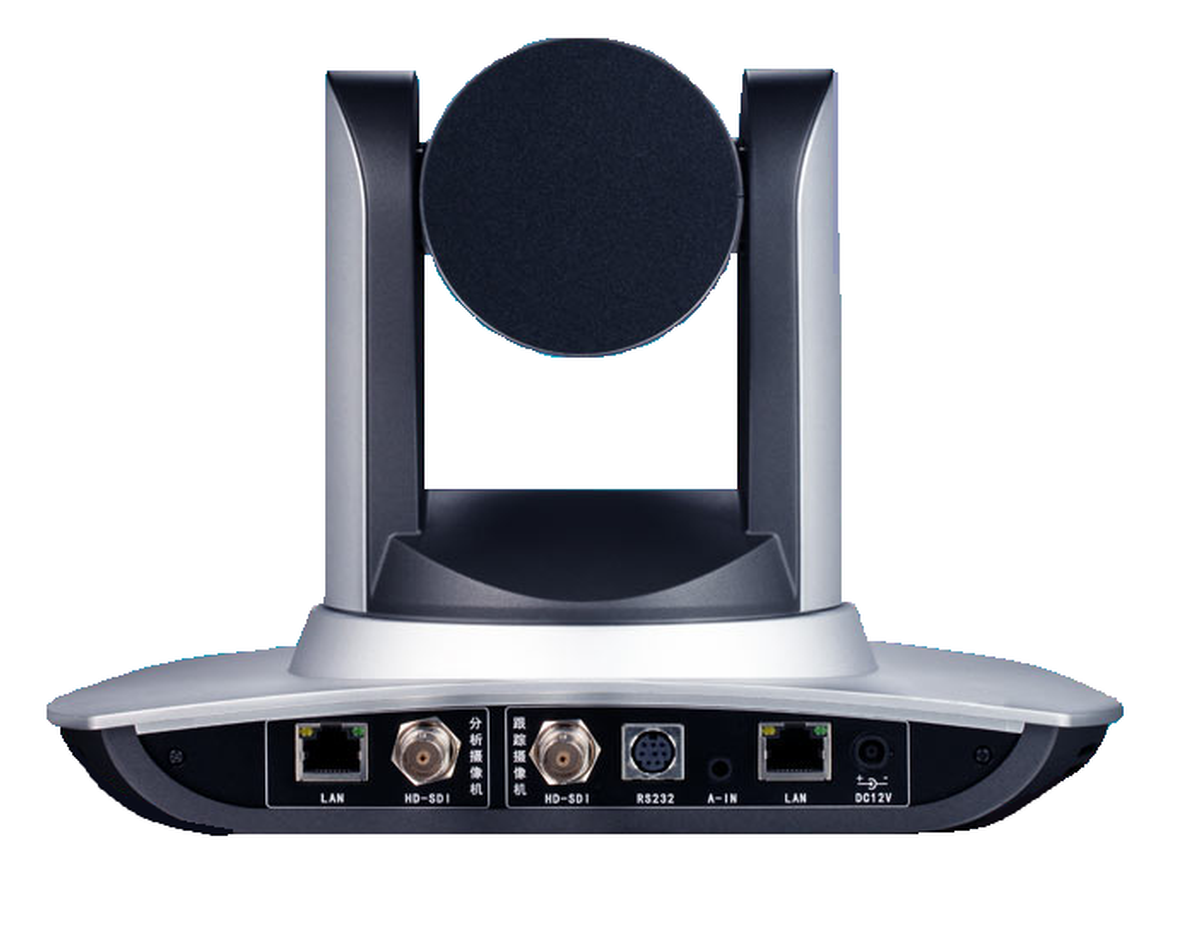

• Supports SDI and LAN
• SDI supports to transmit 1080P60 signal 100 meters

Specifications

• f 3.9~46.1mm
• View Angle: 6.3 (tele)~72.5 (wide)
• Iris: F1.8 ~ F2.4
• Digital Zoom: X10
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• Digital Noise Reduction: 2D 3D digital noise reduction

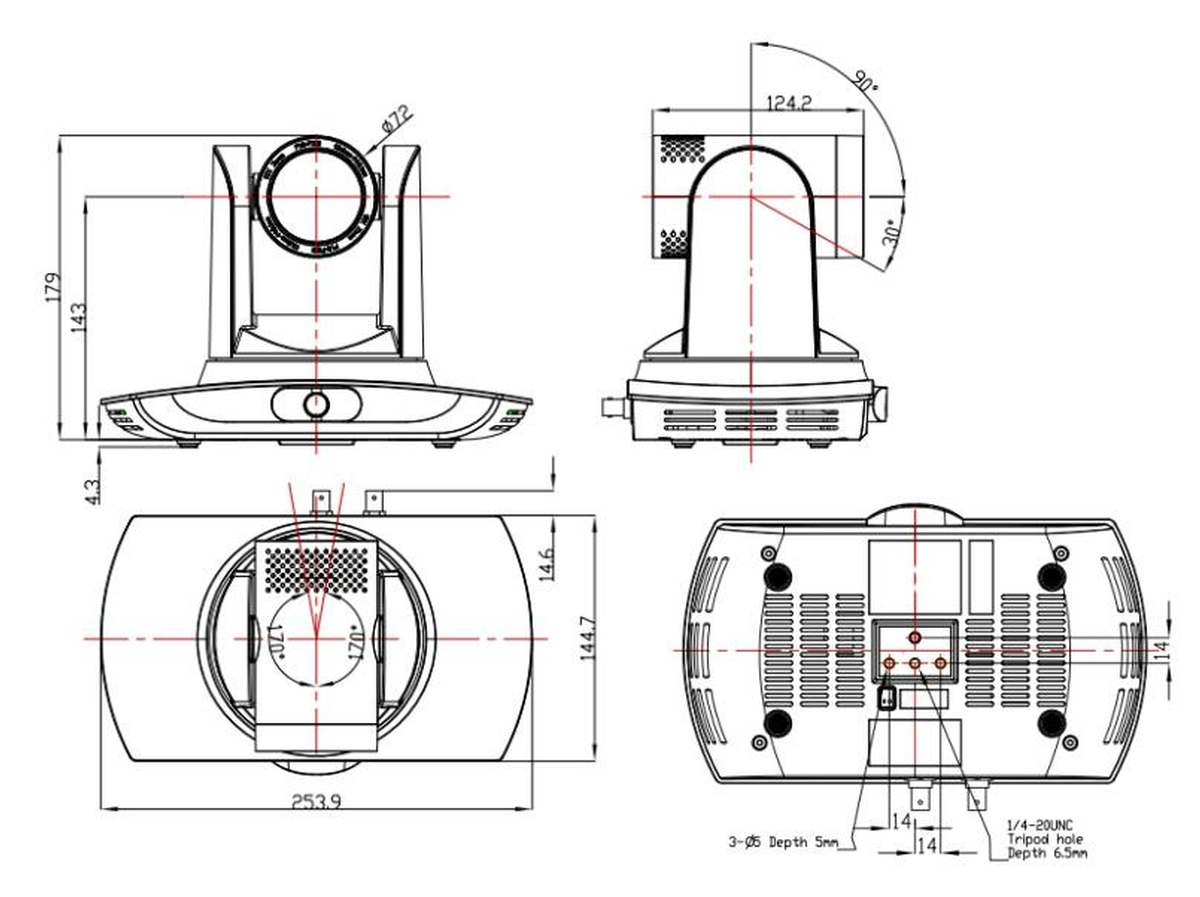

• Dimension(WxHxW): 254mmX144mmX174mm
• Weight(appr.): 1.54kg
• Application: Indoor
• Warranty: 2 years

Downloads

• Minrray UV150T-12 Specifications (PDF)
